Without Console

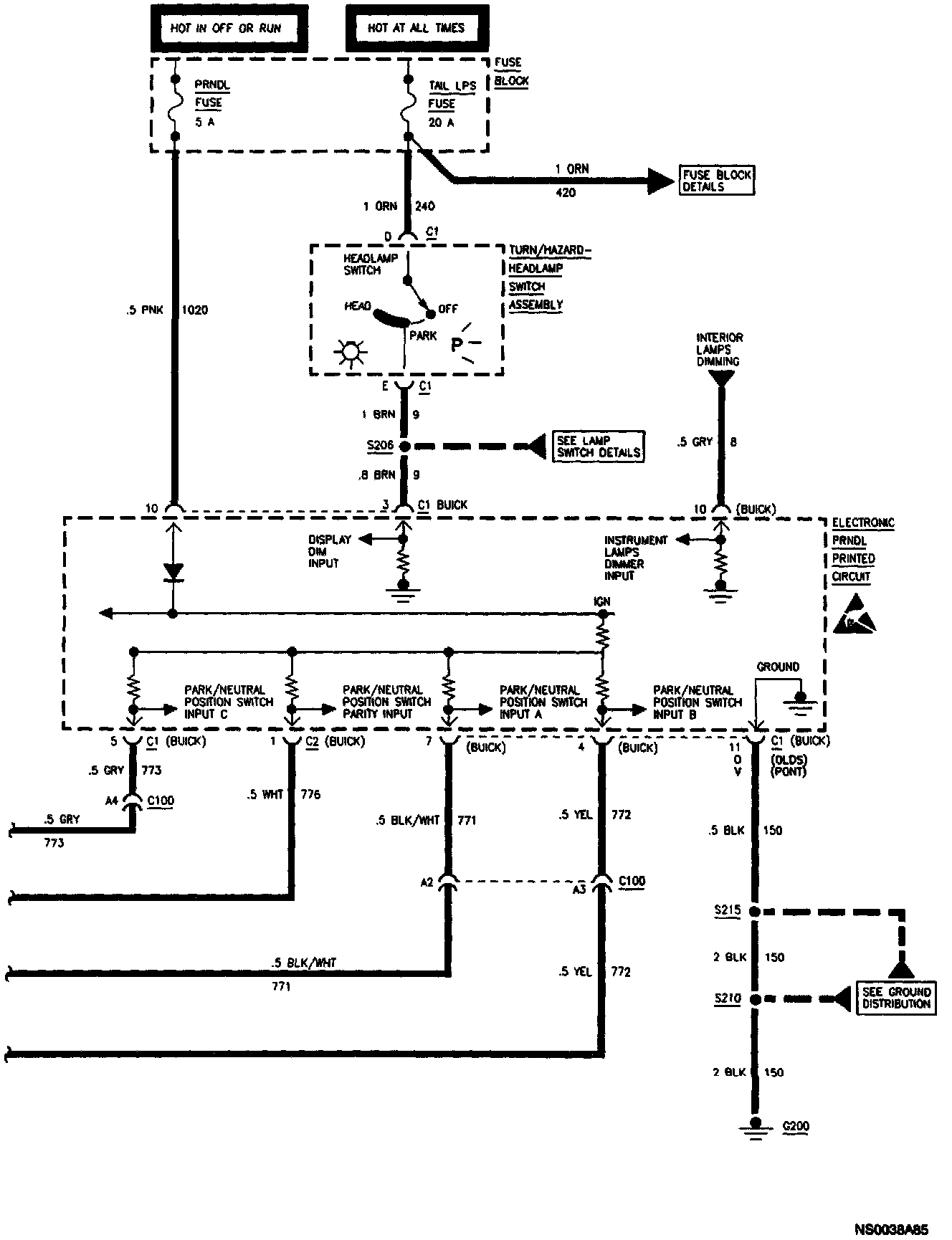

Electronic PRNDL- Without Console (Part 1 Of 2):



Electronic PRNDL- Without Console (Part 2 Of 2):
