Chart 3 Blower Motor Operates In High Speed Only
Chart 3 Blower Motor Operates In High Speed Only
Blower Motor Does Not Run In "Low," "II" Or "III," But Operates In "High" (Part 1 Of 2):

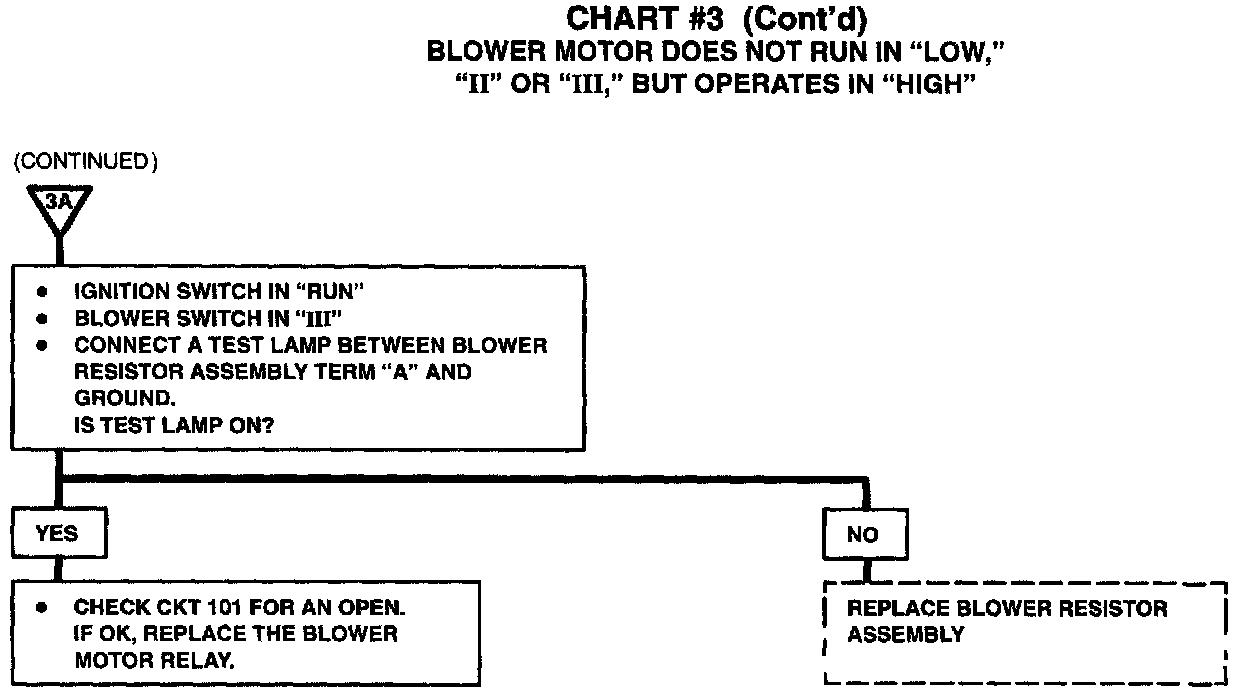

Blower Motor Does Not Run In "Low," "II" Or "III," But Operates In "High" (Part 2 Of 2):
