Operation CHARM: Car repair manuals for everyone.
Home >> Pontiac >> 1995 >> Grand Prix V6-204 3.4L DOHC VIN X SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Electronic Shift Control Diagnosis >> With Transaxle Test Box >> 94-95 CBW, CUW, PCW

94-95 CBW, CUW, PCW

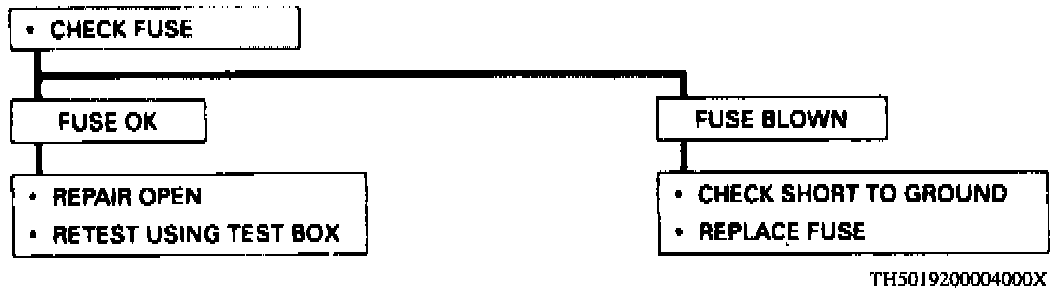

Diagnostic Charts

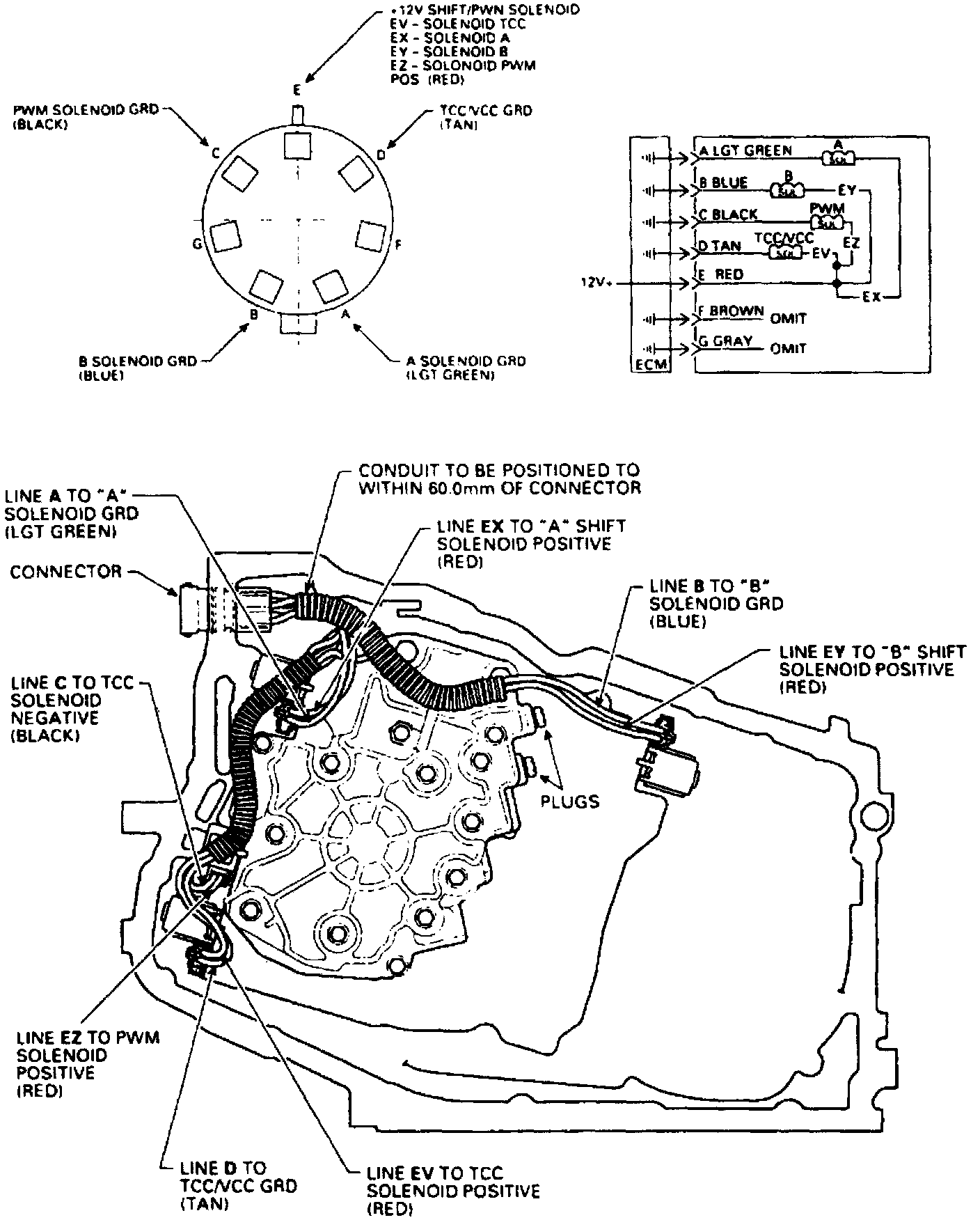

Wiring Diagram




Wiring Harness
