Component Tests and General Diagnostics

Antenna System Test:

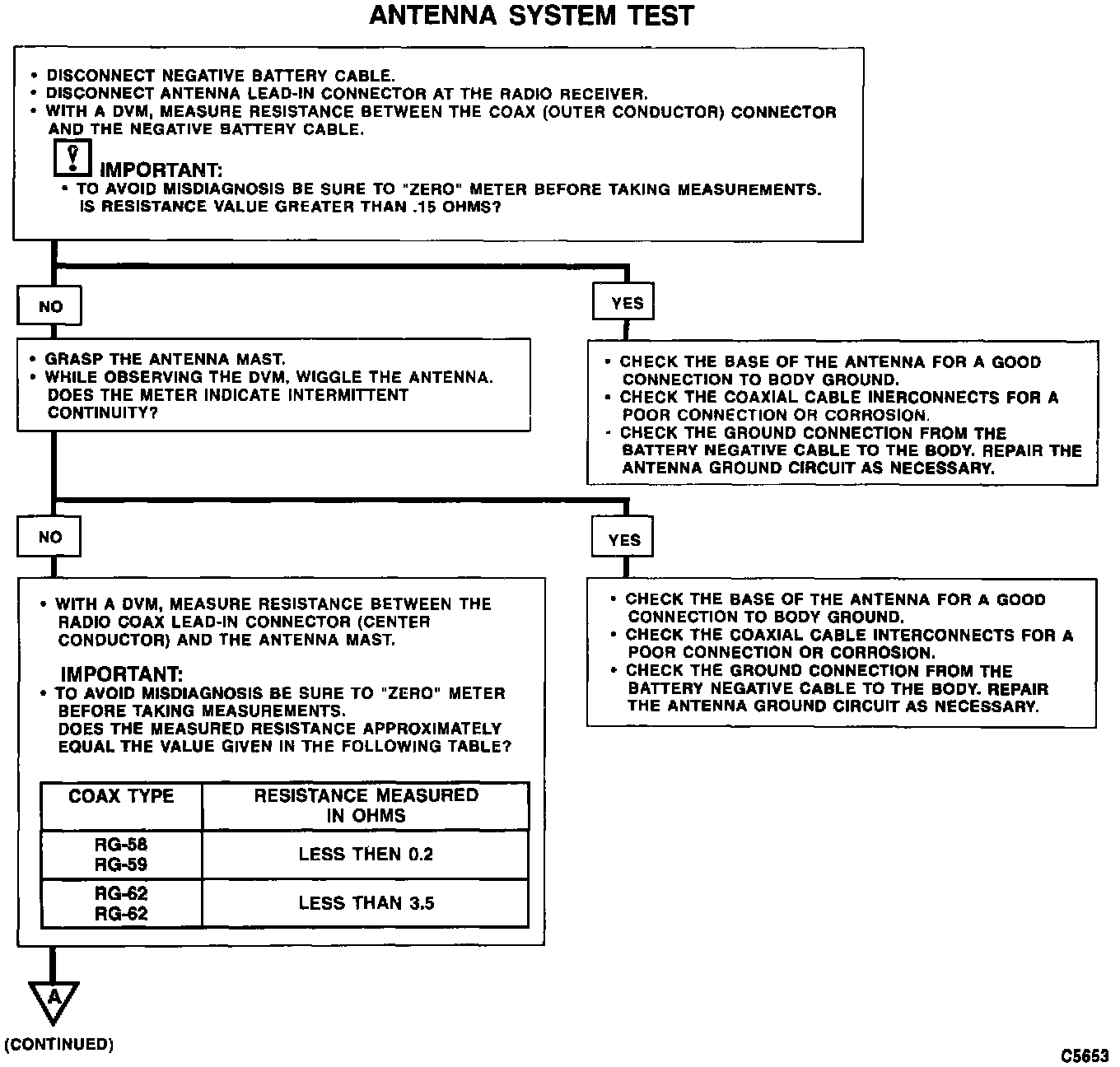

Antenna System Test (Part 1 Of 2):

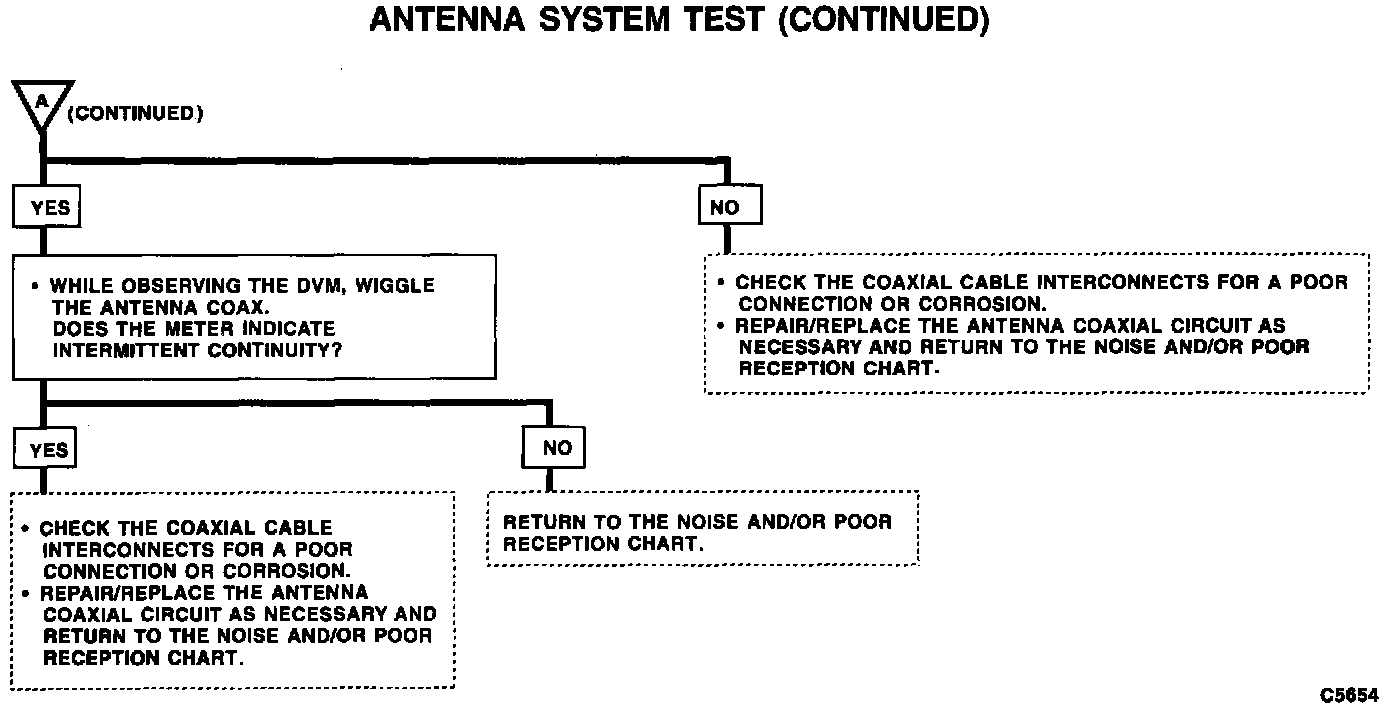

Antenna System Test (Part 2 Of 2):




IMPORTANT: Before measuring the resistance of the antenna, remove the negative lead of the battery and "Zero" the meter before taking measurements. When checking resistance, cautiously wiggle the lead tip and cable. The readings below should always be obtained. Of not, some portion
of the lead-in-intermittent and the Lead-In should be replaced.

Antenna System Resistance Values:




Lead-In Cable Resistance Values:
