Air Valve Position Chart - Air Delivery
Air Valve Position Chart - Air Delivery

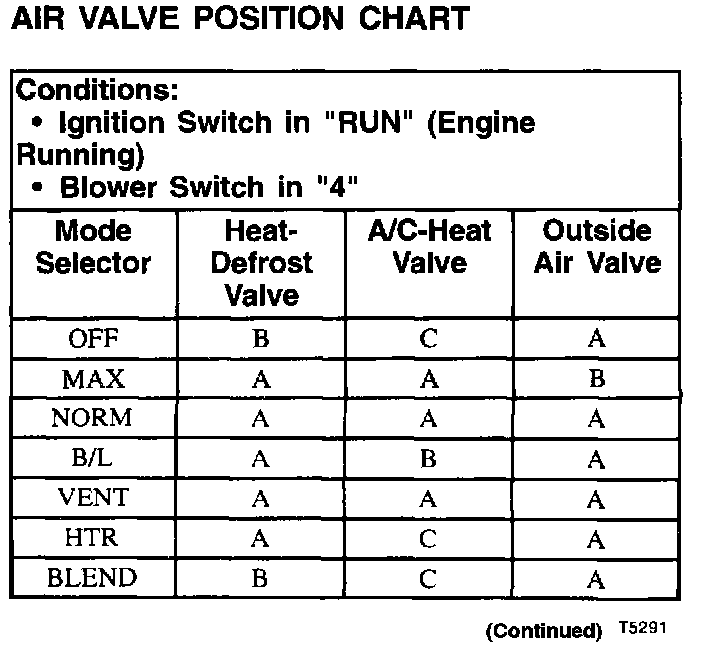

Air Valve Position Chart (Part 1 Of 2):

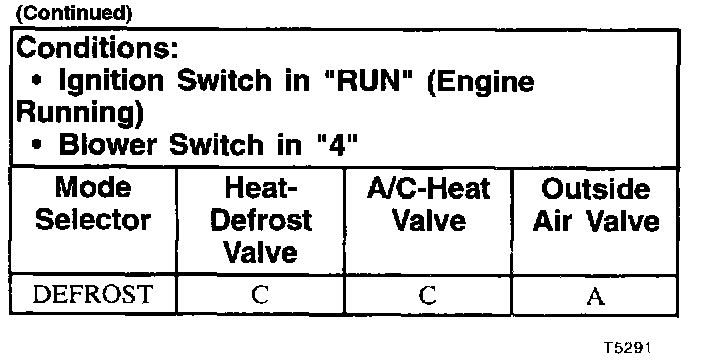

Air Valve Position Chart (Part 2 Of 2):
