Antilock Brake System Wiring Circuit

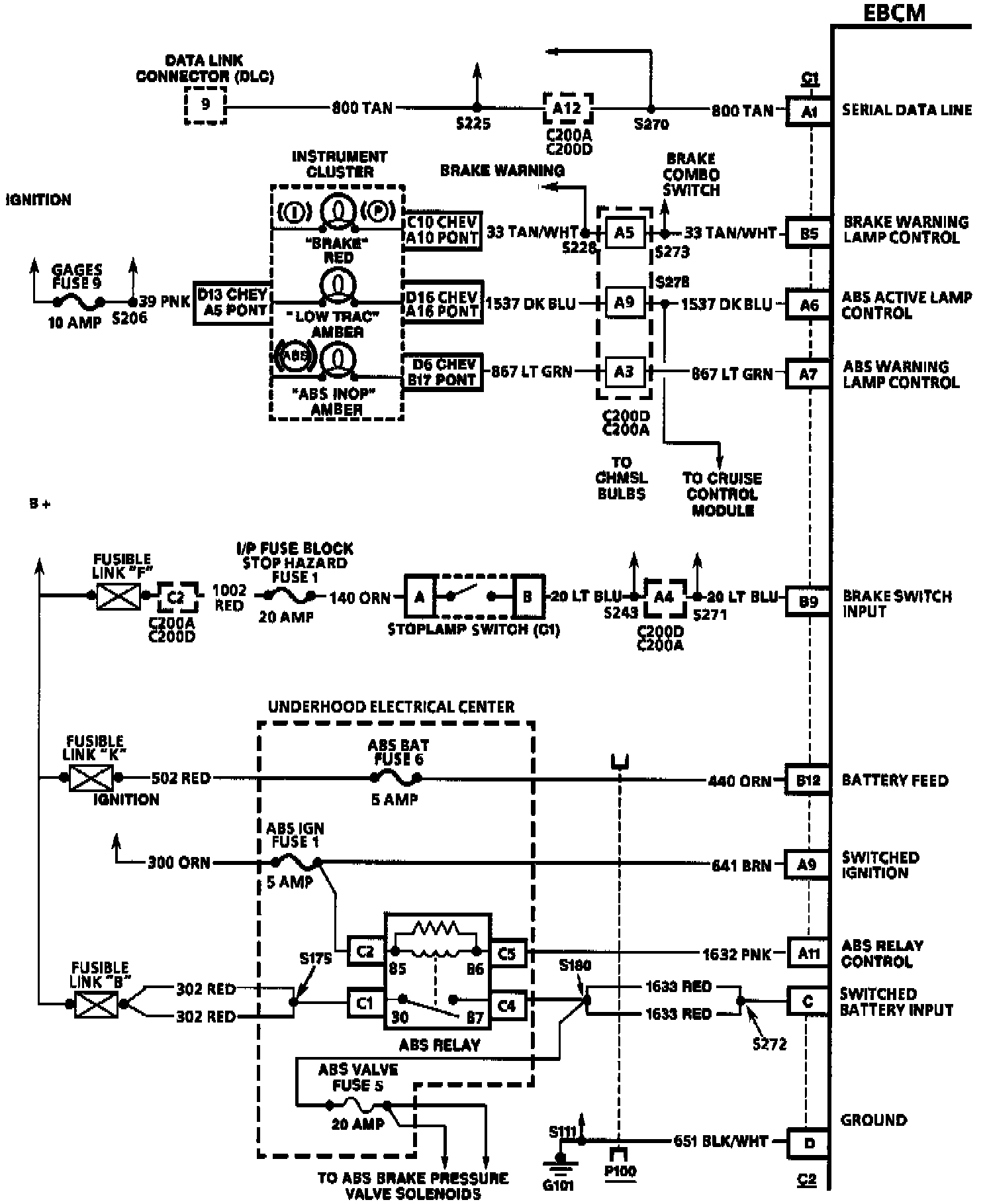

Fig. 11 ABS Wiring Circuit (Part 1 Of 2).:

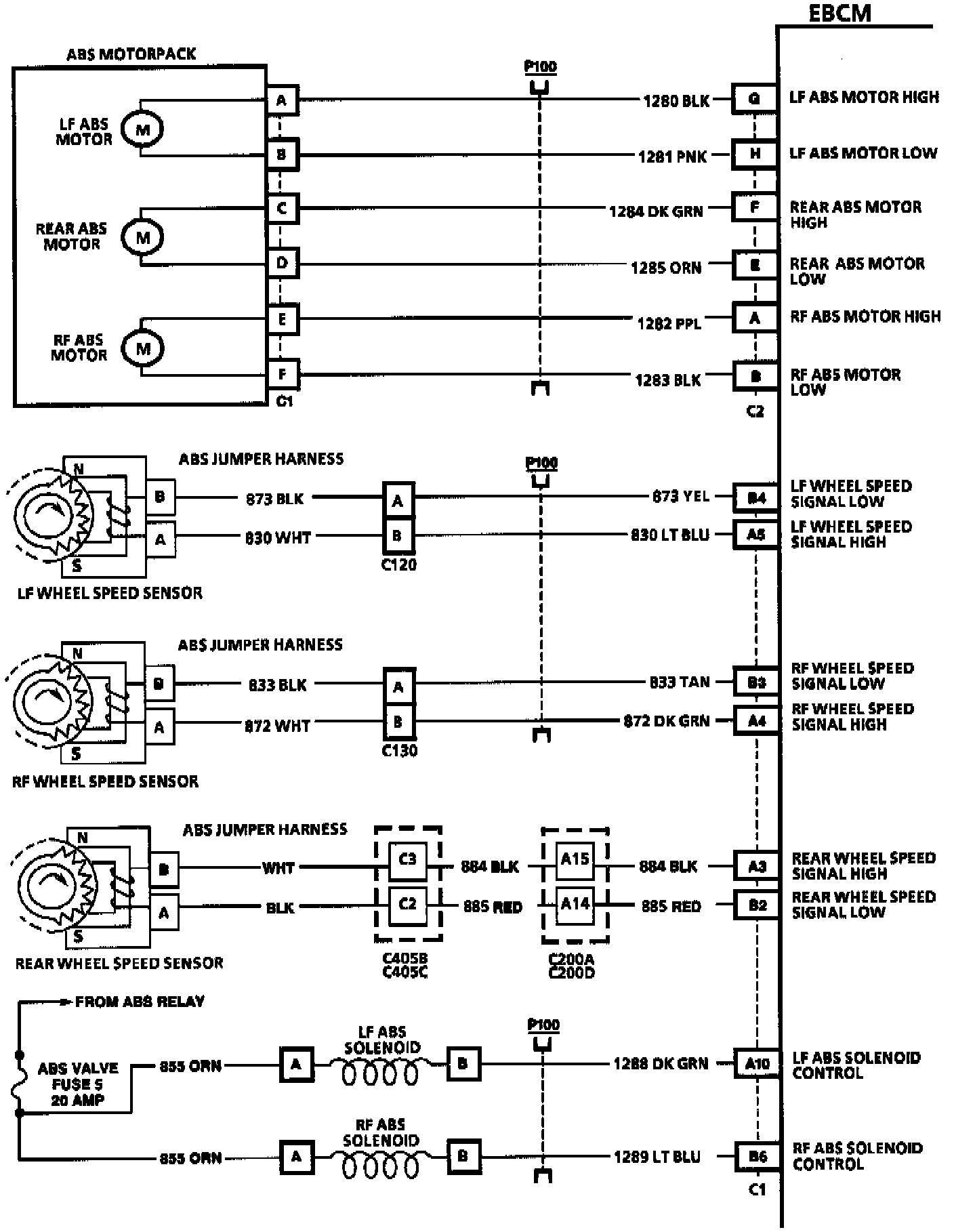

Fig. 11 ABS Wiring Circuit (Part 2 Of 2).:

Refer to the ABS wiring circuits, Fig. 11, when performing diagnostic procedures.
