Home >> Pontiac >> 1996 >> Firebird V8-350 5.7L VIN P SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Daytime Running Lamp

Daytime Running Lamp

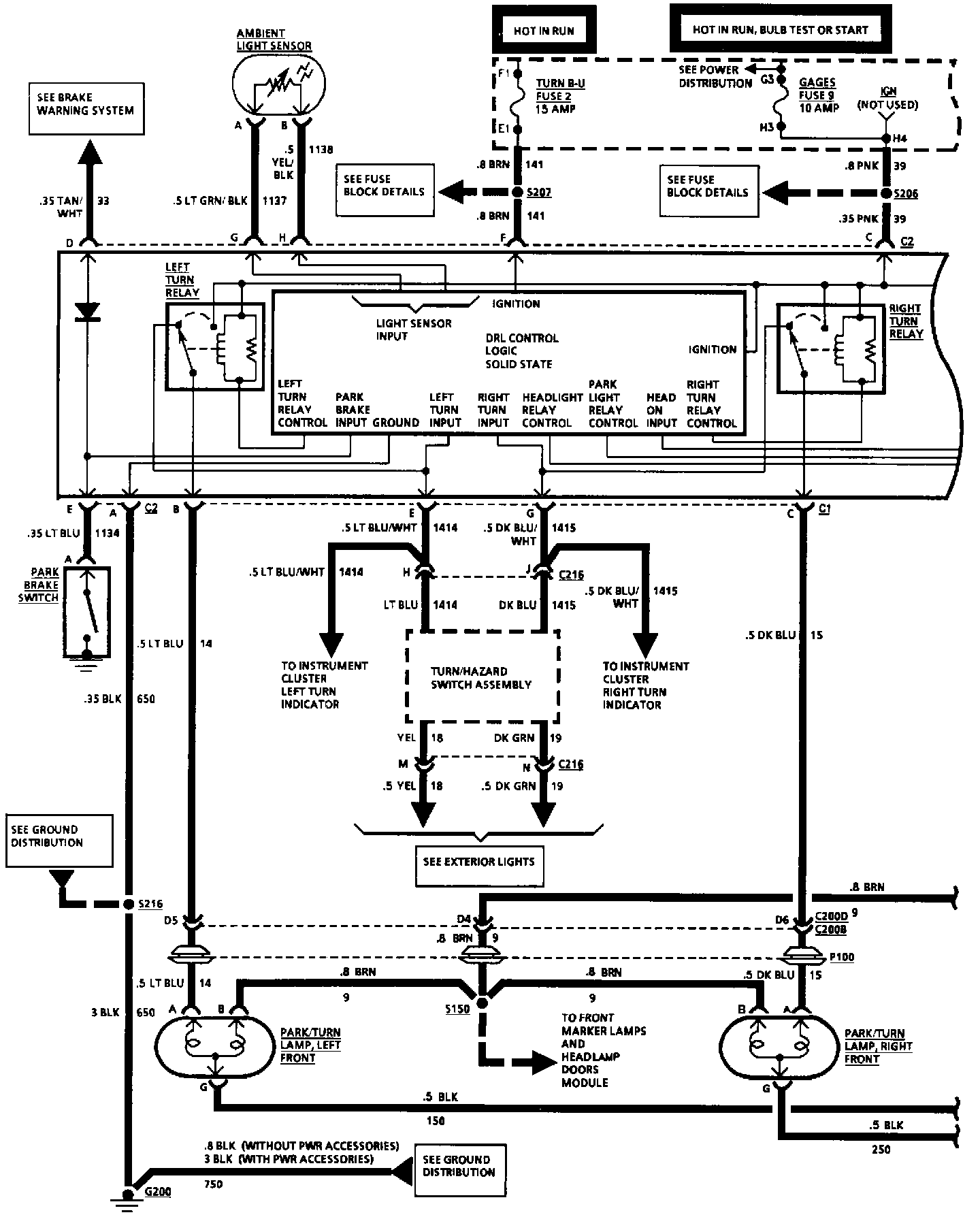

Daytime Running Lamps (Part 1 Of 2):



Daytime Running Lamps (Part 2 Of 2):
