Pontiac
>>
1996
>>
Firebird V8-350 5.7L VIN P SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Traction Control System
Traction Control System

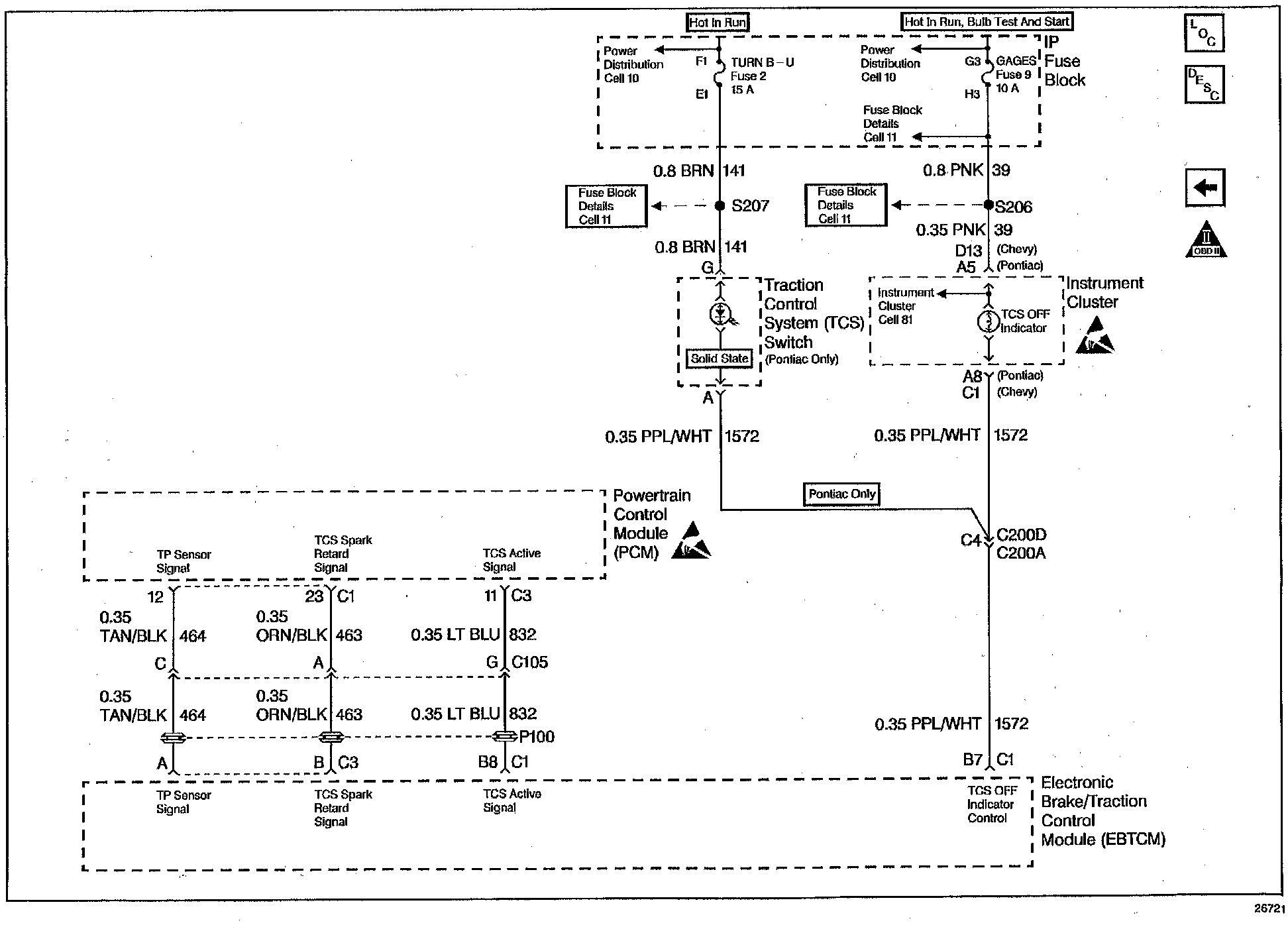

Wiring Diagram:
