Pontiac
>>
1996
>>
Firebird V8-350 5.7L VIN P SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
Cross Car Harness to I/P Harness
Cross Car Harness to I/P Harness

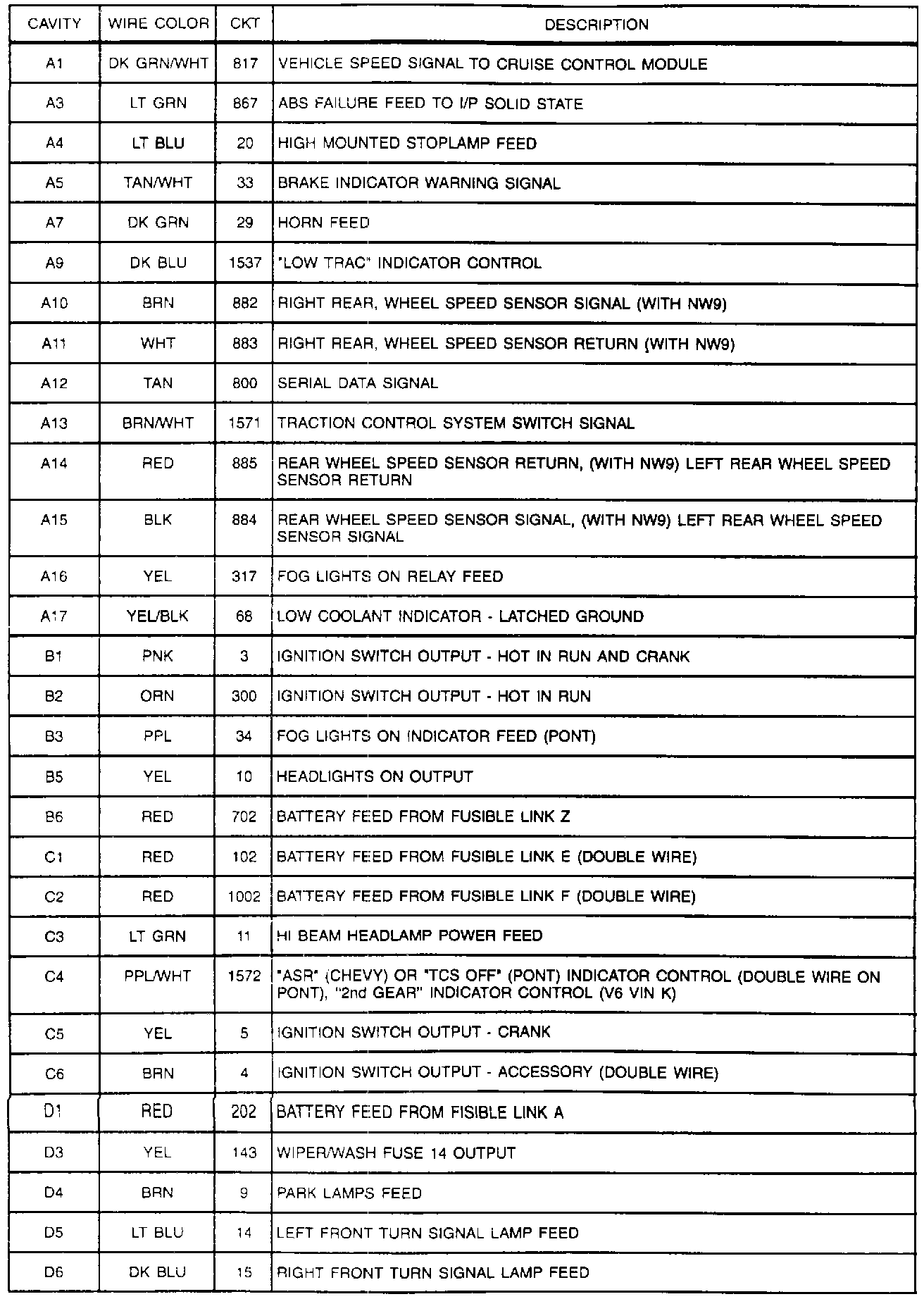

C200C: Cross Car Harness To I/P Harness:
C200D, C200A, C200B, C200C (Part 1 Of 2):
C200D, C200A, C200B, C200C (Part 2 Of 2):
