Firebird V8-350 5.7L VIN P SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
IAC & AIR
IAC & AIR

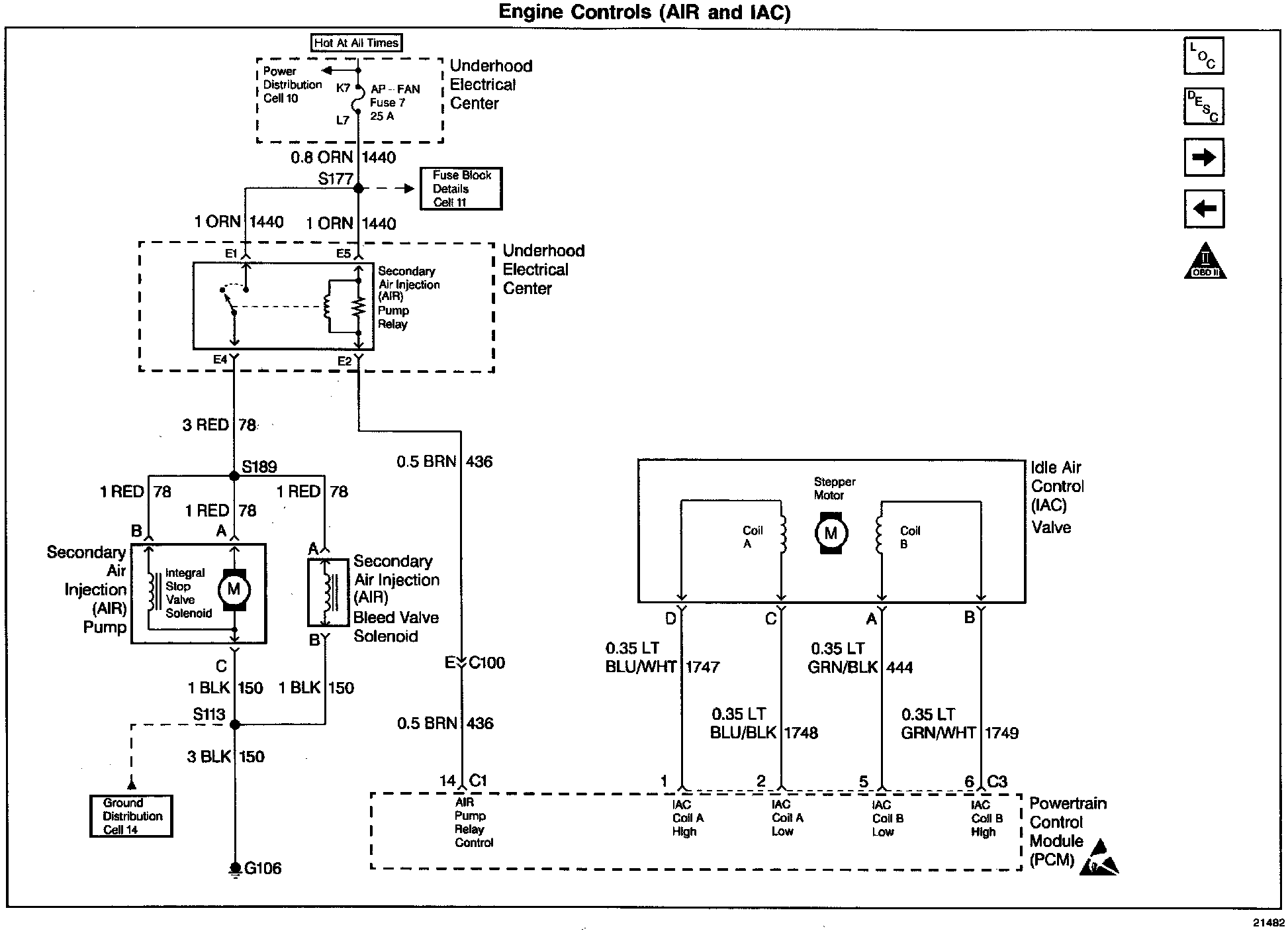

Wiring Diagram:
