Pontiac
>>
1996
>>
Firebird V8-350 5.7L VIN P SFI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Pulse Delay Operates Incorrectly or Not at All
Pulse Delay Operates Incorrectly or Not at All

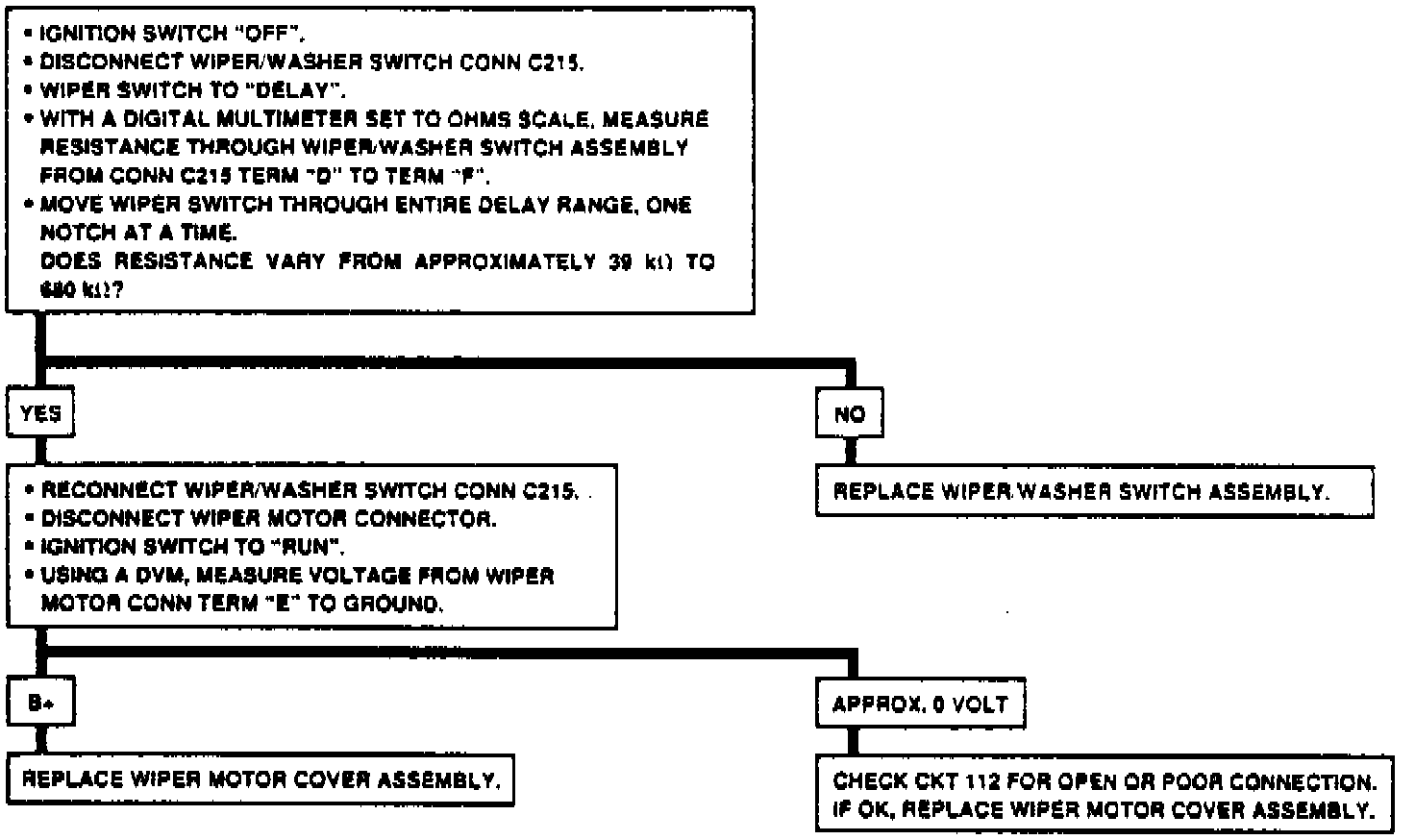

Fig. 36 Test 5: Pulse Delay Operates Incorrectly Or Not At All.:
