Transmission Control Systems

Automatic Transaxle Controls (Part 1 Of 3):




Automatic Transaxle Controls (Part 2 Of 3):




Automatic Transaxle Controls (Part 3 Of 3):

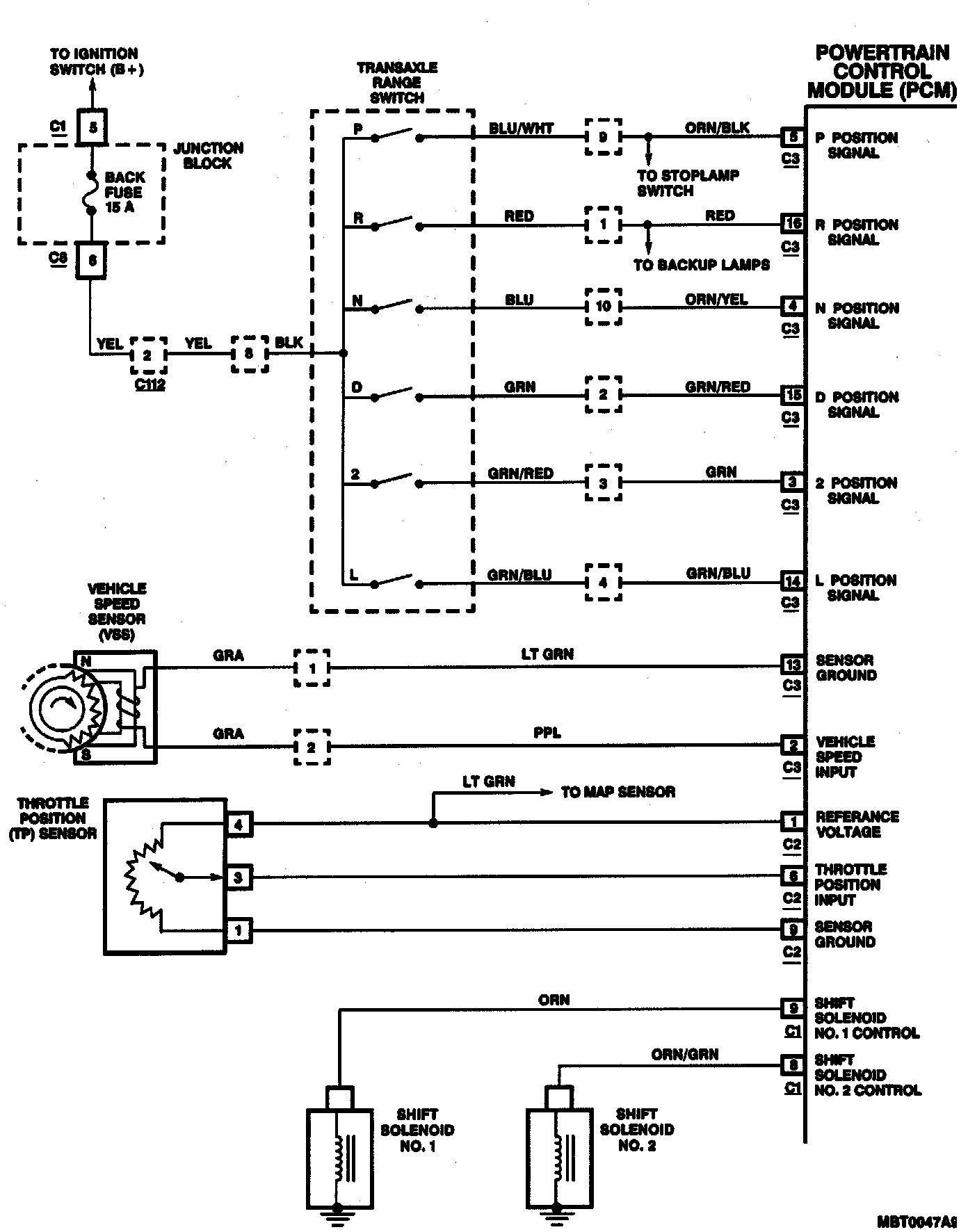

PCM Wiring Diagram (Transaxle Control Circuits):
