Electrical Accessory Panel: Locations

JUNCTION BLOCK

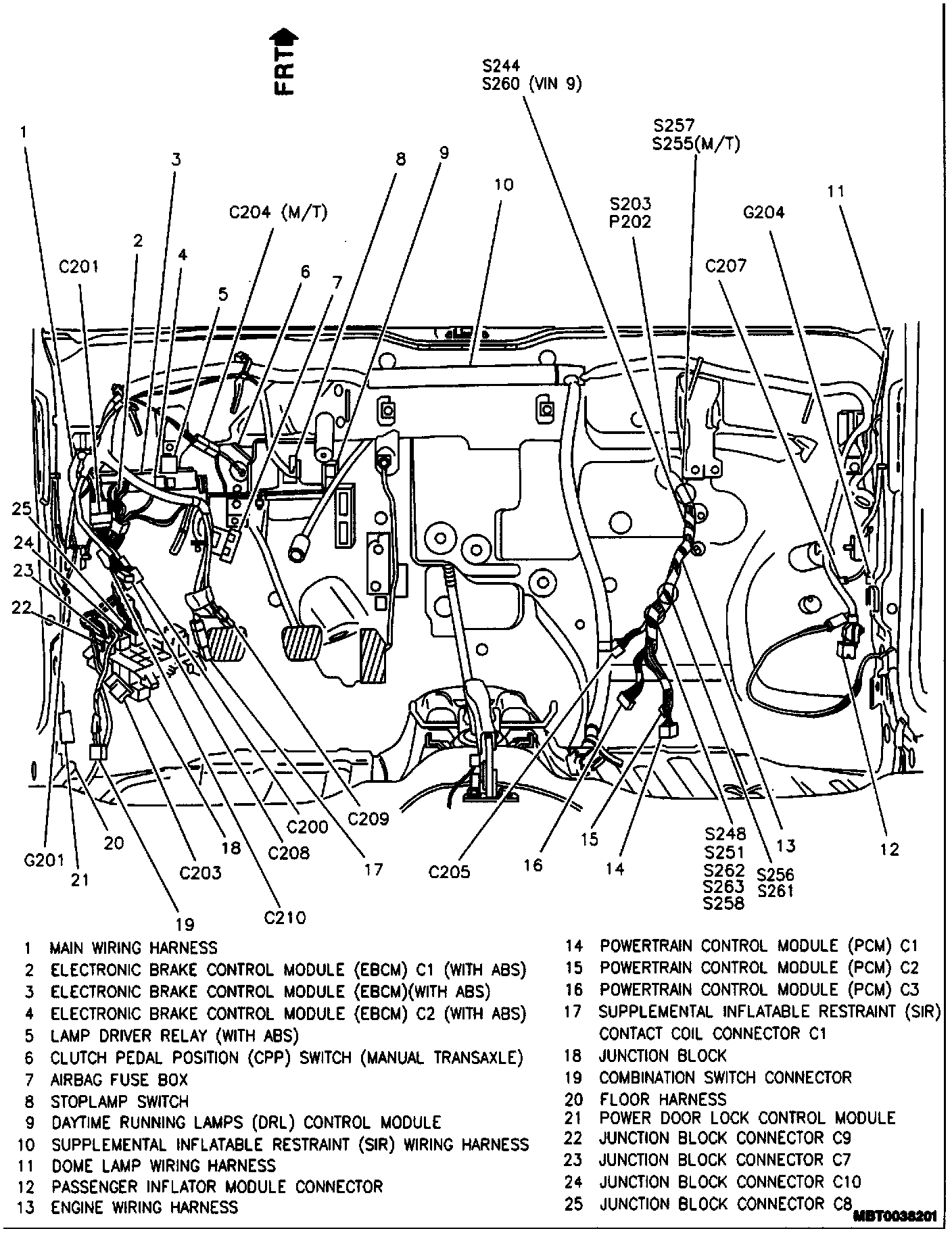

Cowl Wiring:






The Junction Block is located behind LH side of Instrument Panel (I/P).
