P0502

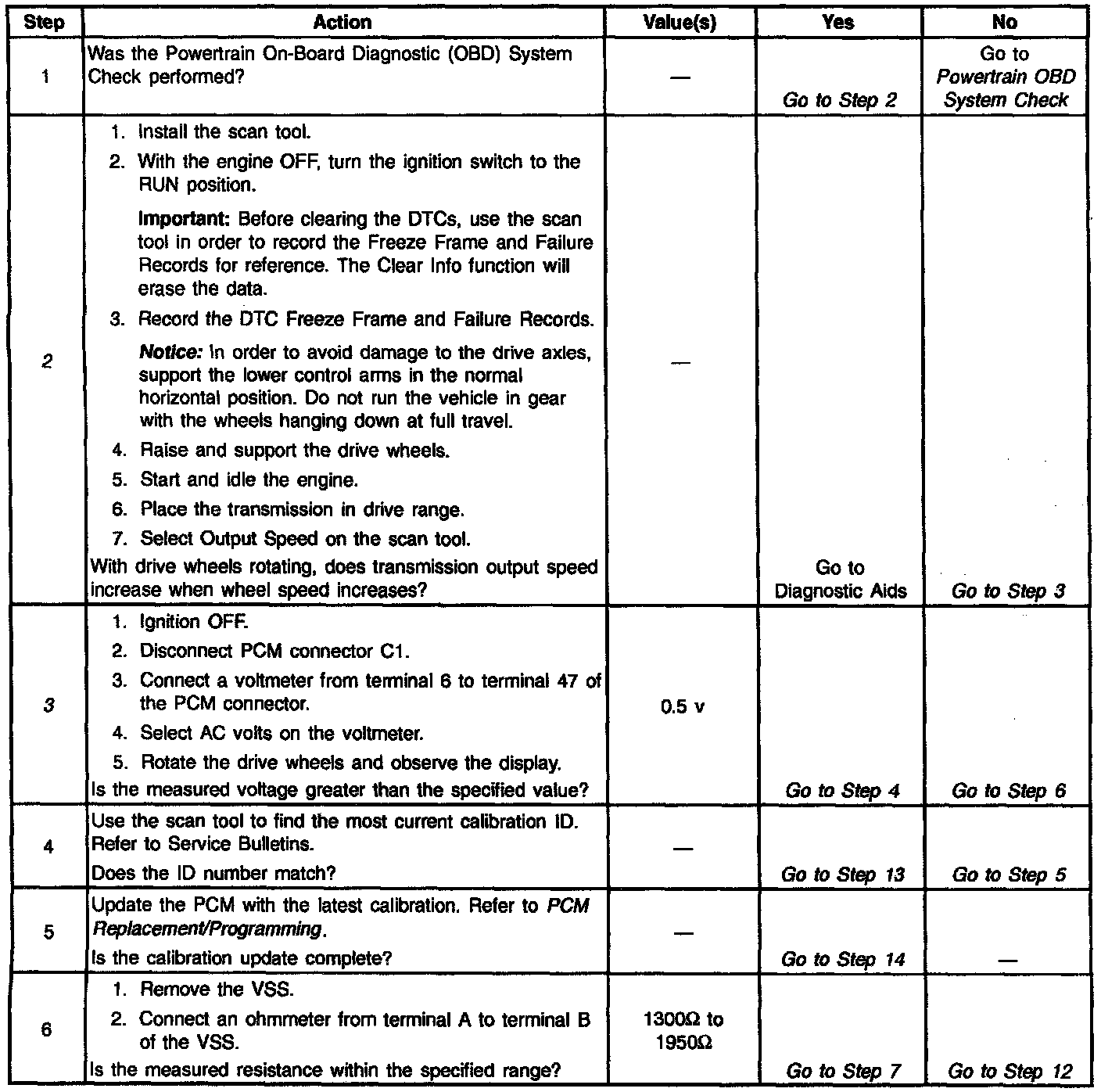

DTC P0502 Vehicle Speed Sensor Circuit Low Input (1 Of 2):

DTC P0502 Vehicle Speed Sensor Circuit Low Input (2 Of 2):

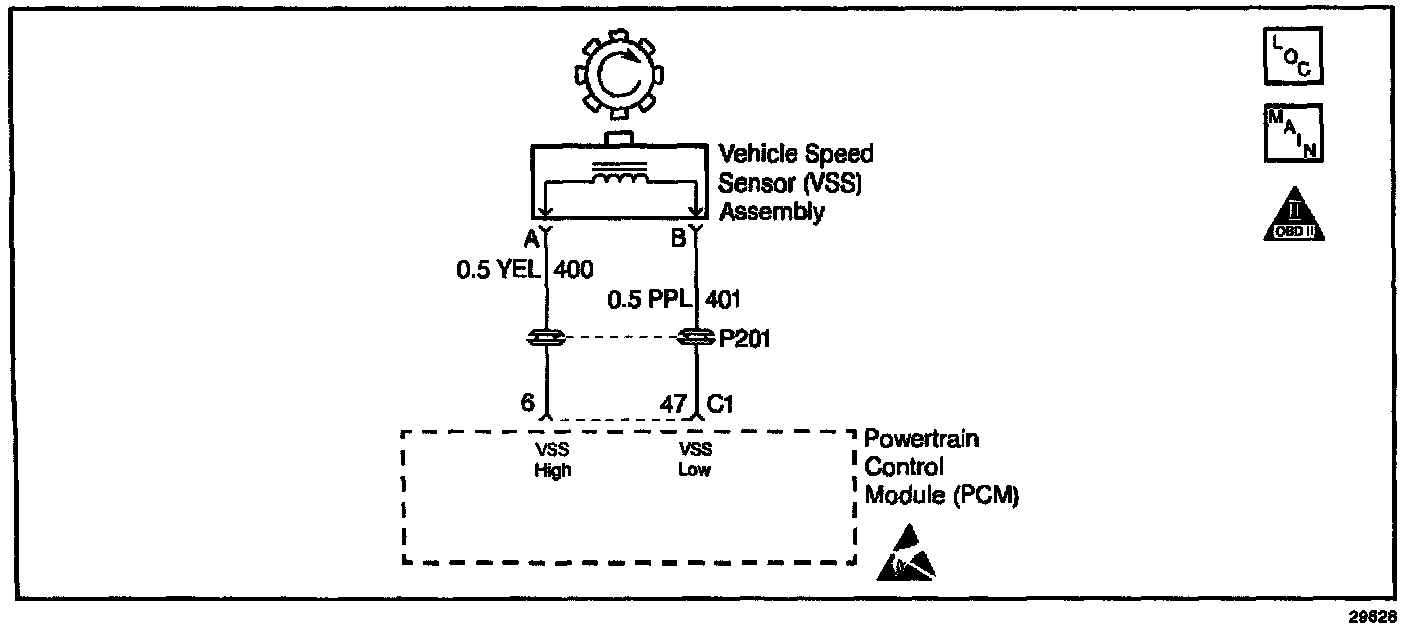

Vehicle Speed Sensor Circuit:

Circuit Description

The Vehicle Speed Sensor (VSS) is a Permanent Magnet (PM) generator attached to the transmission case extension. The final drive assembly has a toothed wheel (VSS rotor). As the final drive assembly rotates, an AC voltage is induced and transmitted to the Powertrain Control Module (PCM).

The PCM converts this AC voltage into a digital signal. The PCM uses the vehicle speed to determine the shift timing. the Torque Converter Clutch (TCC) apply and release, and the gear ratio calculations. The VSS voltage will vary from 0.5 volts AC at 100 RPM to more than 100 volts AC at 8000 RPM. The VSS resistance value Is between 1300 and 1950 ohms.

When the PCM detects a low vehicle speed with a high engine speed while in a drive range, then DTC P0502 sets. DTC P0502 is a type A DTC.


Conditions for Setting the DTC

^ No Manifold Absolute Pressure (MAP) DTCs P0107 or P0108

^ No Throttle Position (TP) DTCs P0122 or P0123

^ The transmission is not in Park or Neutral.

^ The engine speed is more than 2900 RPM.

^ The throttle angle is more than 15%.

^ The MAP is 0-105 kPa (0-15 psia).

^ The engine torque is 5-200N.m (40-150 lb. ft.)

^ The output speed is less than 150 RPM for 2.5 seconds.


Action Taken When the DTC Sets

^ The transmission defaults to 3rd gear.

^ The PCM inhibits TCC operation.

^ The PCM illuminates the Malfunction Indicator Lamp (MIL).

Conditions for Clearing the MIL/DTC

^ The PCM turns OFF the MIL after three consecutive ignition cycles without a failure reported.

^ A scan tool can clear the DTC from the PCM history. The PCM clears the DTC from the PCM history if the vehicle completes 40 warm-up cycles without a failure reported.

^ The PCM cancels the DTC default actions when the fault no longer exists and the ignition is OFF long enough in order to power down the PCM.


Diagnostic Aids

^ Check for PRNDL DTC P0705. DTC P0705 affects transmission operation. This may set DTC P0502 falsely.

^ Check for Electromagnetic Interference (EMI) in circuits 400 and 401. EMI may be induced if the harness is routed along the spark plug wires.

^ Inspect the wiring for poor electrical connections at the PCM. Inspect the wiring at the TCC brake switch. Look for the following conditions:

- A bent terminal

- A backed out terminal

- A damaged terminal

- Poor terminal tension

- A chafed wire

- A broken wire inside the insulation

^ When diagnosing for an intermittent short or open condition, massage the wiring harness while watching the test equipment for a change.

^ Ensure that the VSS is securely tightened to the case extension.

Test Description

The numbers below refer to the step numbers on the diagnostic table.

2. This Step verifies that the PCM is receiving a signal from the vehicle speed sensor.

3. This Step verifies that there are no opens in the circuitry from the vehicle speed sensor to the PCM connector.

7. This Step performs a resistance test on the VSS circuits from the PCM connector.
