P1554

DTC P1554 Cruise Control Status Switch (1 Of 2):

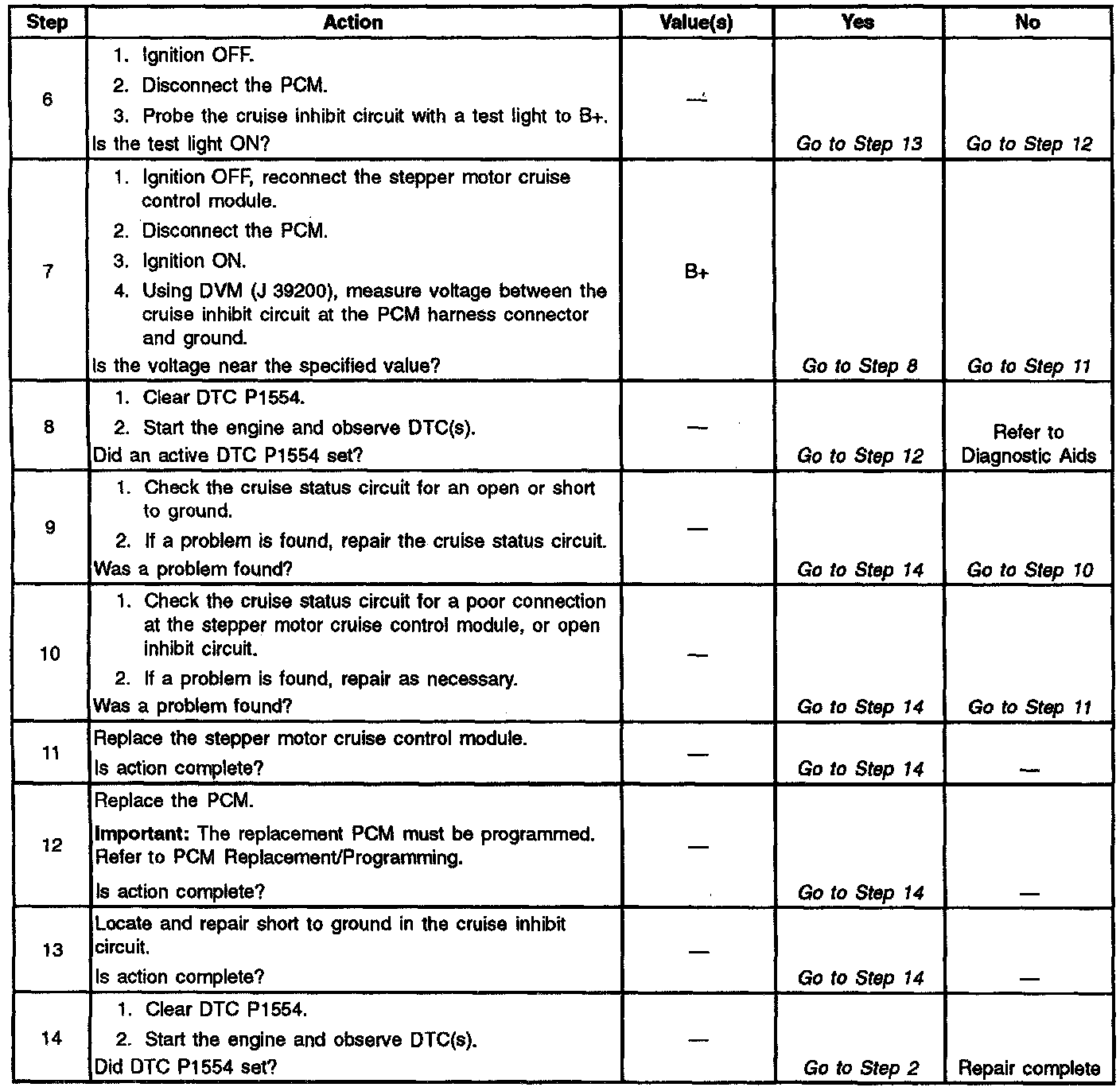

DTC P1554 Cruise Control Status Switch (2 Of 2):

Engine Controls (Vehicle Speed Sensor):

Circuit Description

The stepper motor cruise control module sends the cruise status input to the PCM to indicate when cruise control is engaged. The PCM monitors the cruise status signal while commanding cruise to be disengaged by grounding the cruise inhibit circuit. Any of the following conditions may cause the PCM to inhibit cruise control operation:

^ Engine not running long enough for cruise control operation.

^ Transaxle range inputs indicate park, neutral, low, or reverse gear selected.

^ Engine speed is too high or too low.

^ Vehicle speed is too high or too low.

^ ABS is active for longer than 2 seconds.

^ Vehicle acceleration or deceleration rate is too high.


Conditions for Setting the DTC

^ The PCM is commanding the Stepper Motor Cruise Control (SMCC) module to not allow cruise control operation (Cruise Inhibit circuit grounded).

^ The Cruise Status input to the PCM indicates that cruise control is still active.

^ Above conditions for longer than 1 second.

Action Taken When the DTC Sets

^ The PCM will not illuminate the Malfunction Indicator Lamp (MIL).

^ The PCM will store conditions which were present when the DTC set as Fail Records data only. This information will not be stored as Freeze Frame data.


Conditions for Clearing the MIL/DTC

^ A history DTC will clear after 40 consecutive warm-up cycles have occurred without a fault.

^ DTC can be cleared by using the scan tool Clear Info function or by disconnecting the PCM battery feed.


Diagnostic Aids

Check for the following conditions:

^ Poor connection at PCM. Inspect harness connectors for backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection.

^ Damaged harness. Inspect the wiring harness for damage. If the harness appears to be OK, observe the Cruise Status display on the scan tool while moving connectors and wiring harnesses related to the Stepper Motor Cruise Control module. A change in the display will indicate the location of the fault.

If DTC P1554 cannot be duplicated, the information included in the Failure records data can be useful in determining how many ignition cycles have passed since the DTC was last set.
