Operation CHARM: Car repair manuals for everyone.
Home >> Pontiac >> 1996 >> Grand AM V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry

Keyless Entry

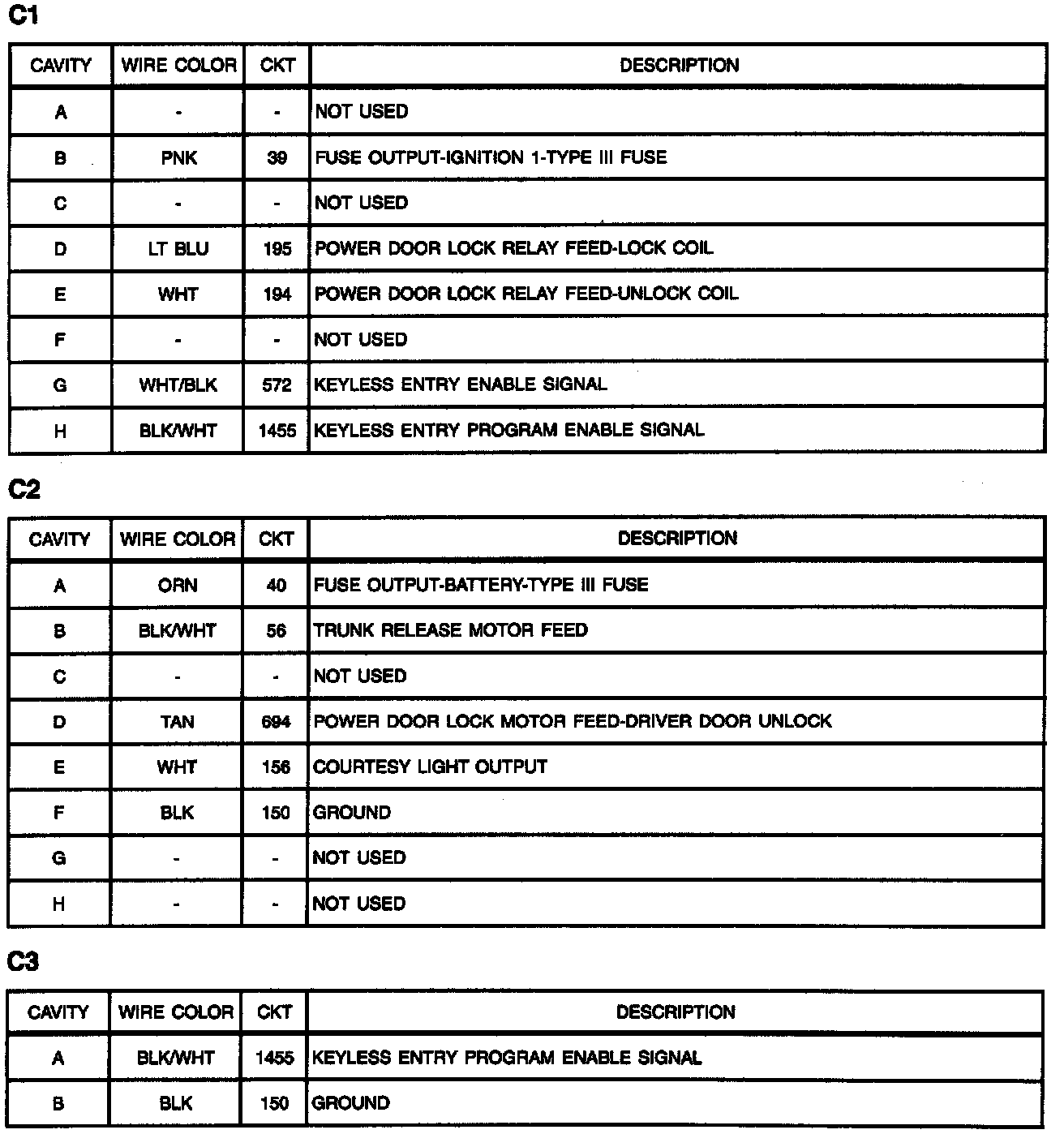

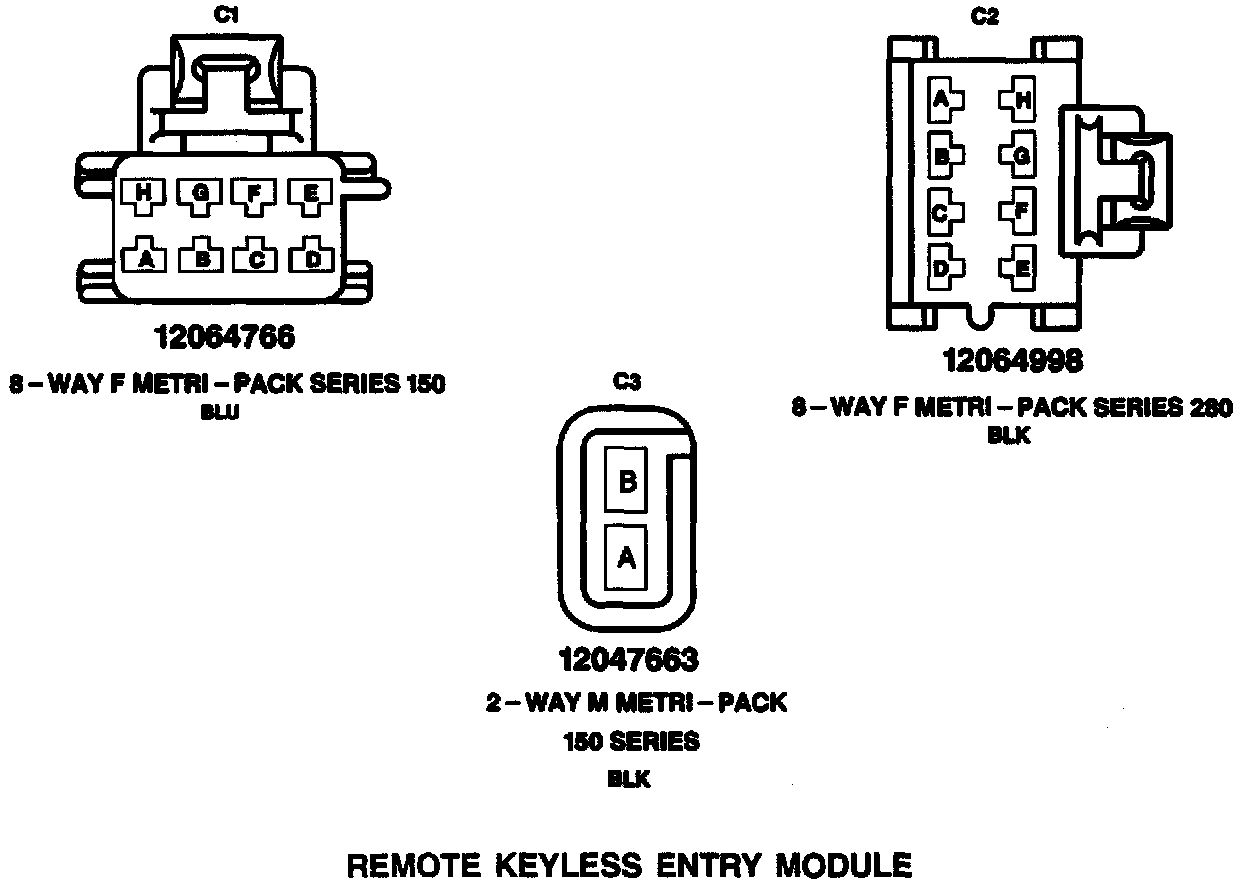

Remote Keyless Entry - C1, C2, C3:



Remote Keyless Entry - C1, C2, C3:
