Fog/Driving Lamp

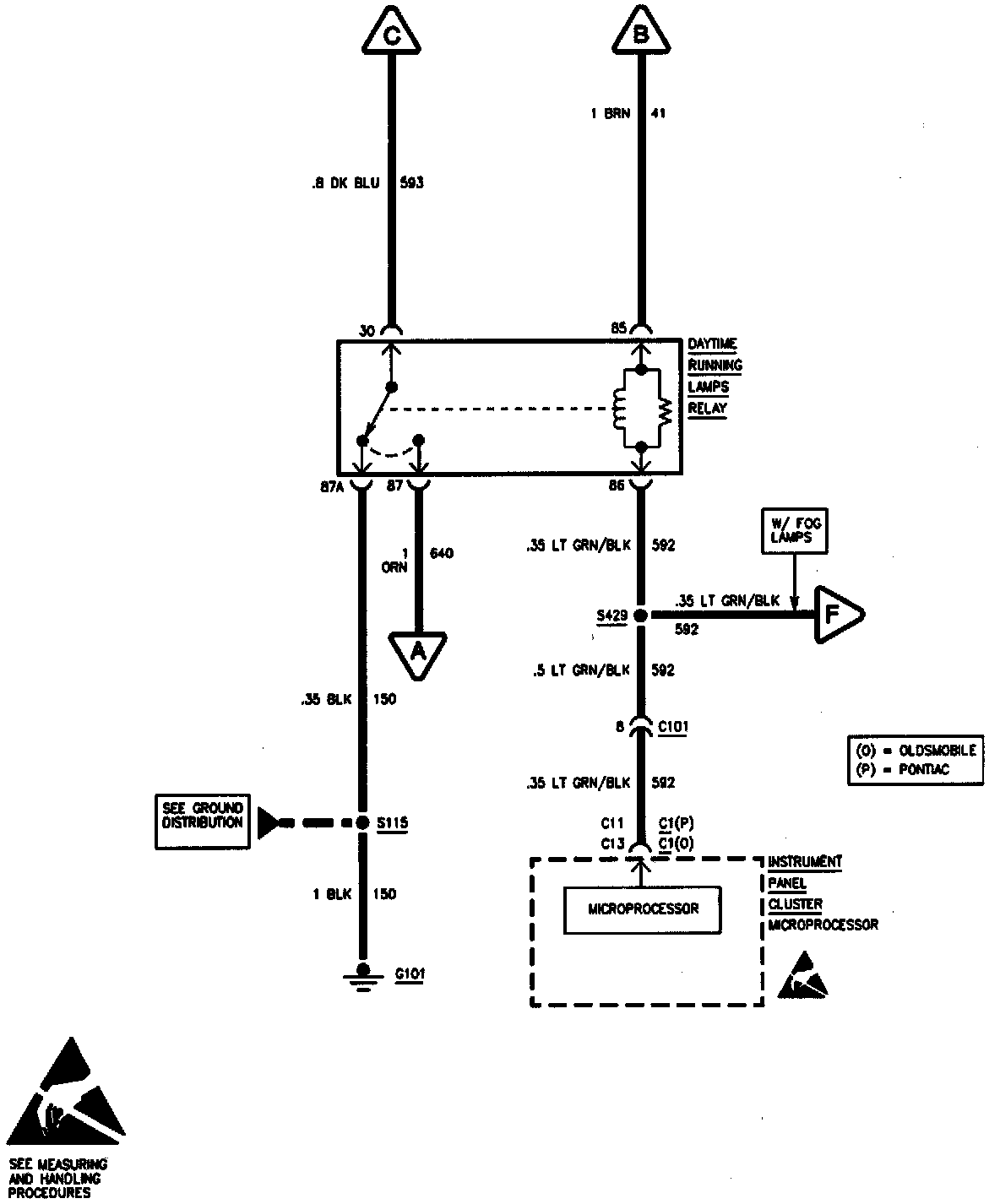

Headlights: Daytime Running Lights:

Headlights: Daytime Running Lights:

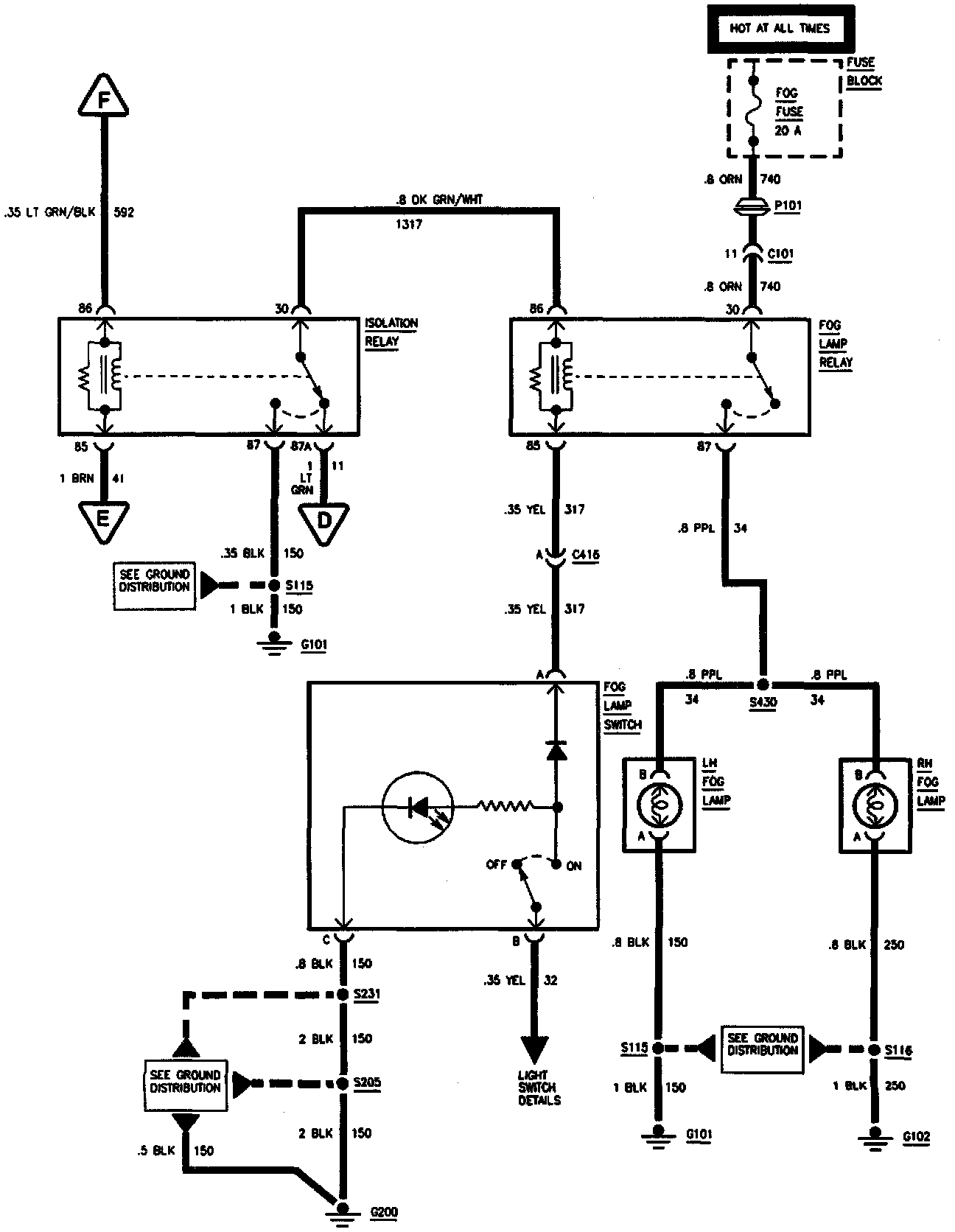

Headlights: Daytime Running Lights - With Fog Lamps:
