Grand AM V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Sensing Diagnostic Module Indicators, Backlighting, Fuel Gage
Sensing Diagnostic Module Indicators, Backlighting, Fuel Gage

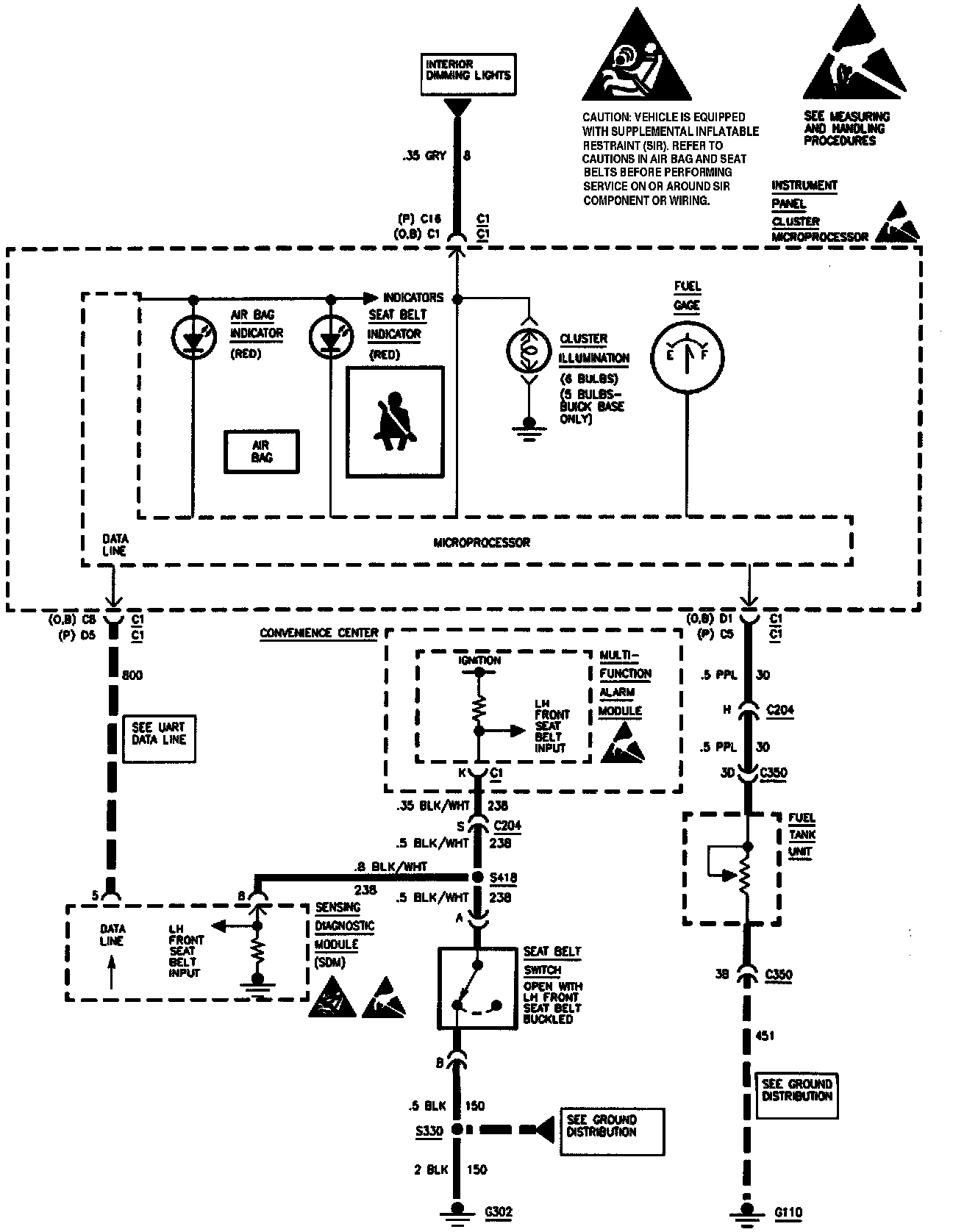

Instrument Panel: Cluster - Sensing Diagnostic Module Indicators, Backlighting And Fuel Gage:
