Pulse Delay Operates Incorrectly or Not at All
Pulse Delay Operates Incorrectly or Not at All

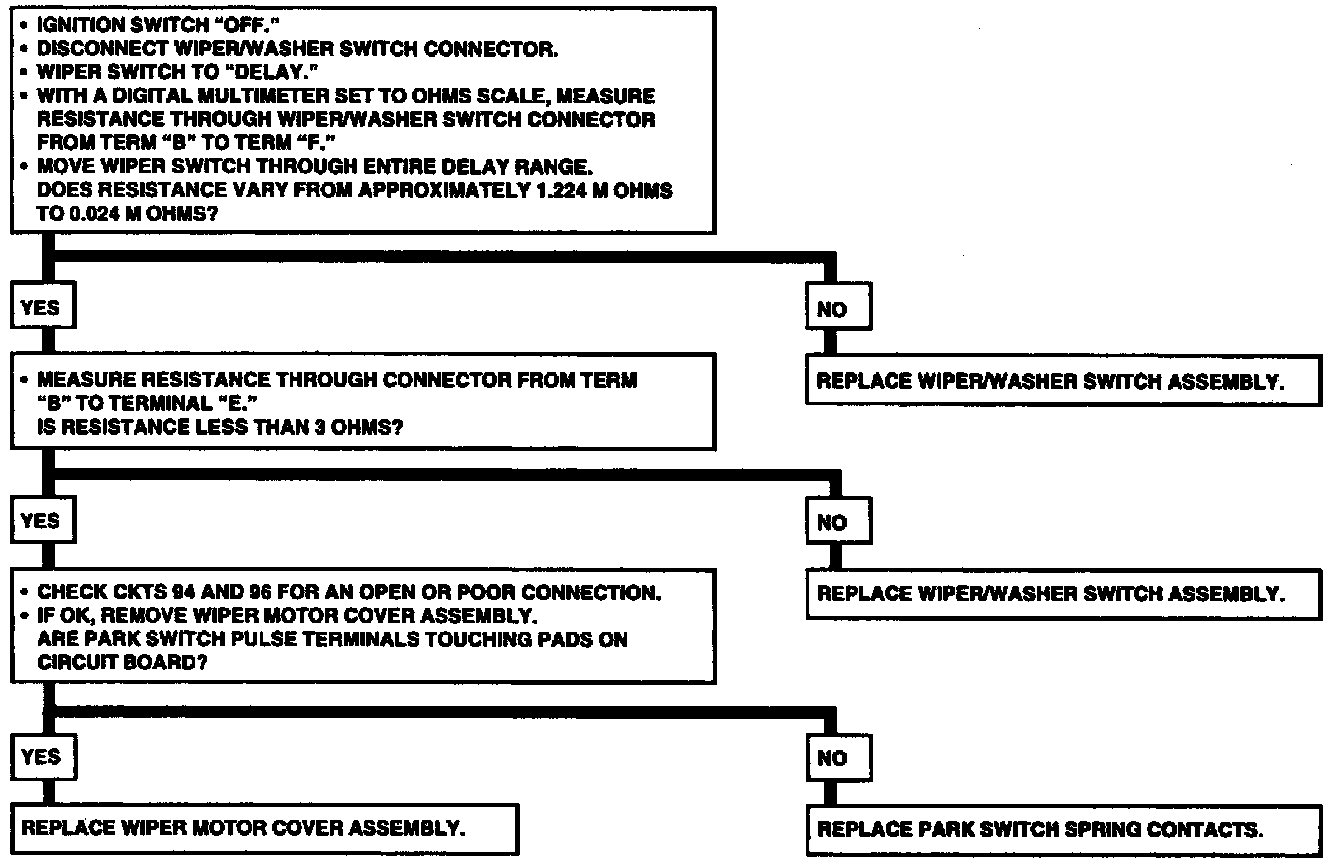

Fig. 31 Test 9: Pulse Delay Operates Incorrectly Or Not At All:
