Control Assembly: Diagrams

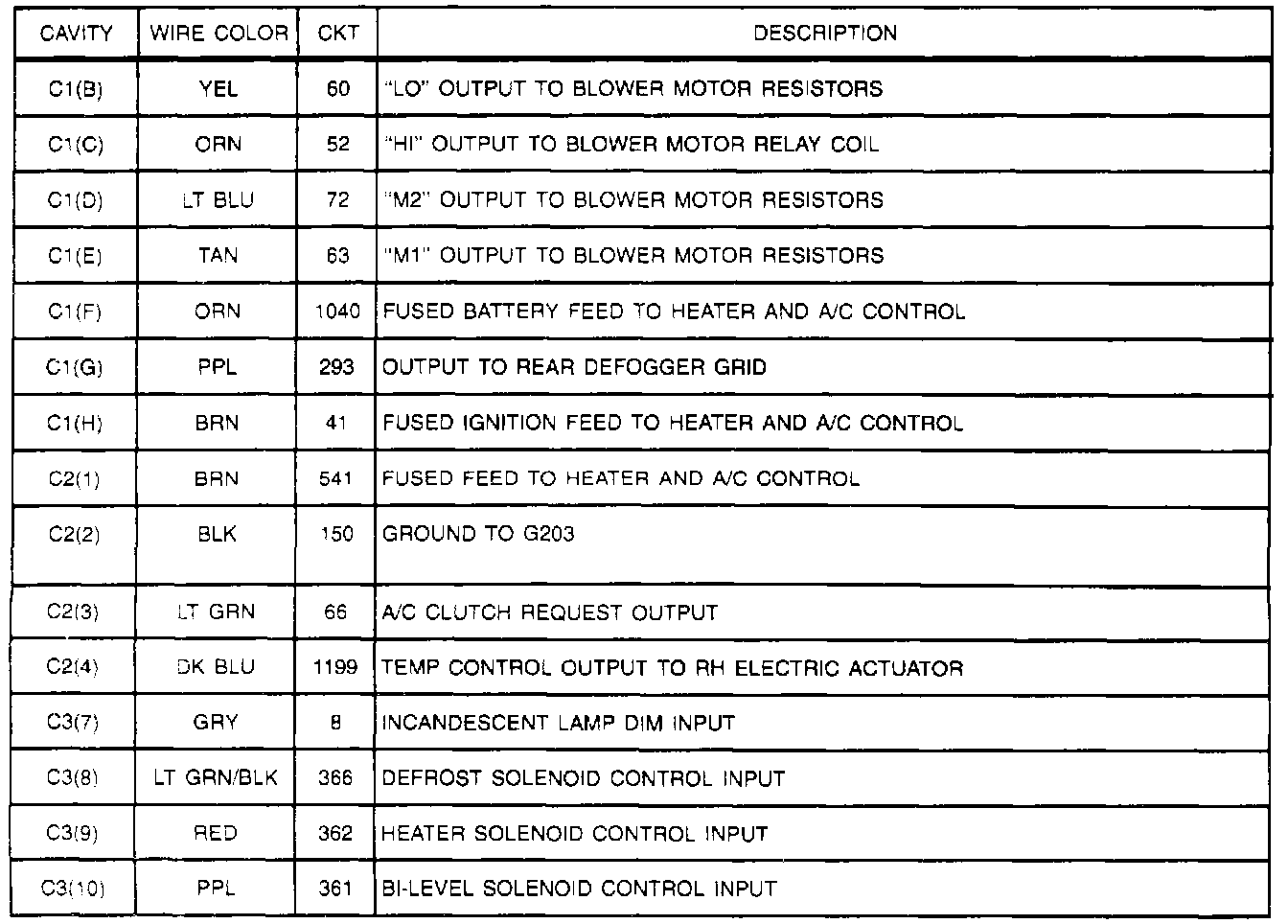

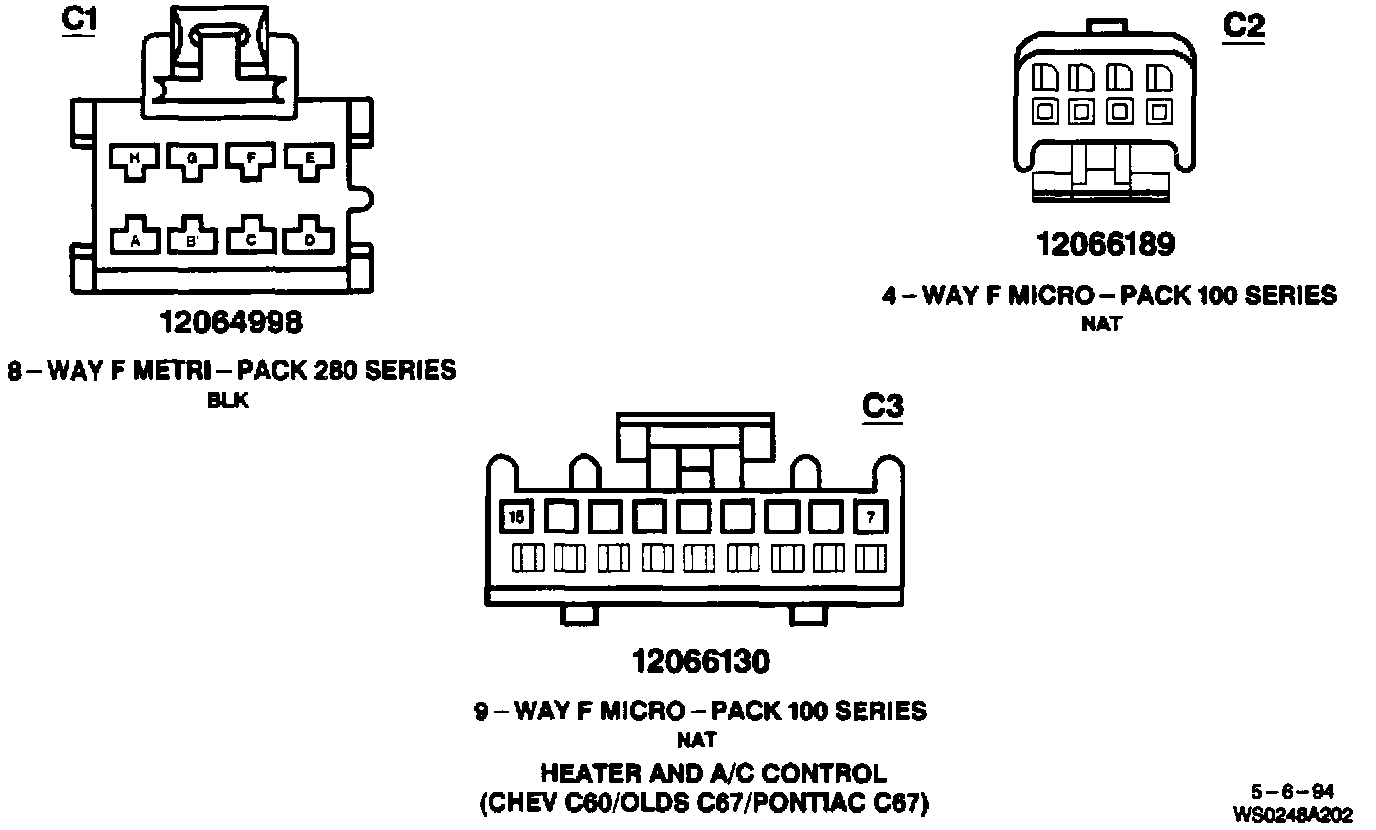

C1, C2 & C3: Heater And A/C Control (C60/C67):
C1, C2 & C3: Heater And A/C Control (C60/C67) (Part 1 Of 2):
C1, C2 & C3: Heater And A/C Control (C60/C67) (Part 2 Of 2):
