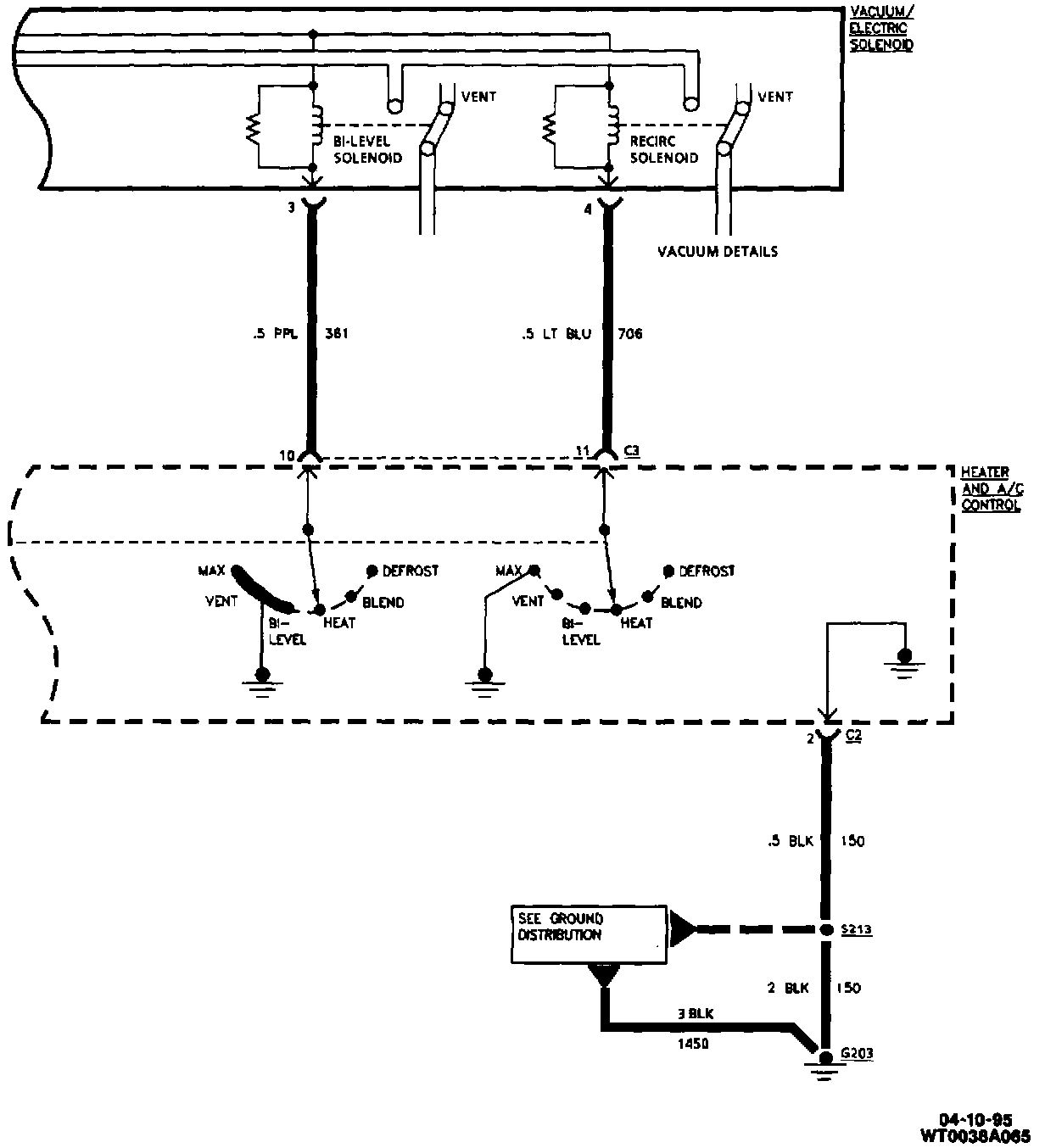

Air Delivery (C60/C67/CJ3)
Air Delivery (C60/C67/CJ3)

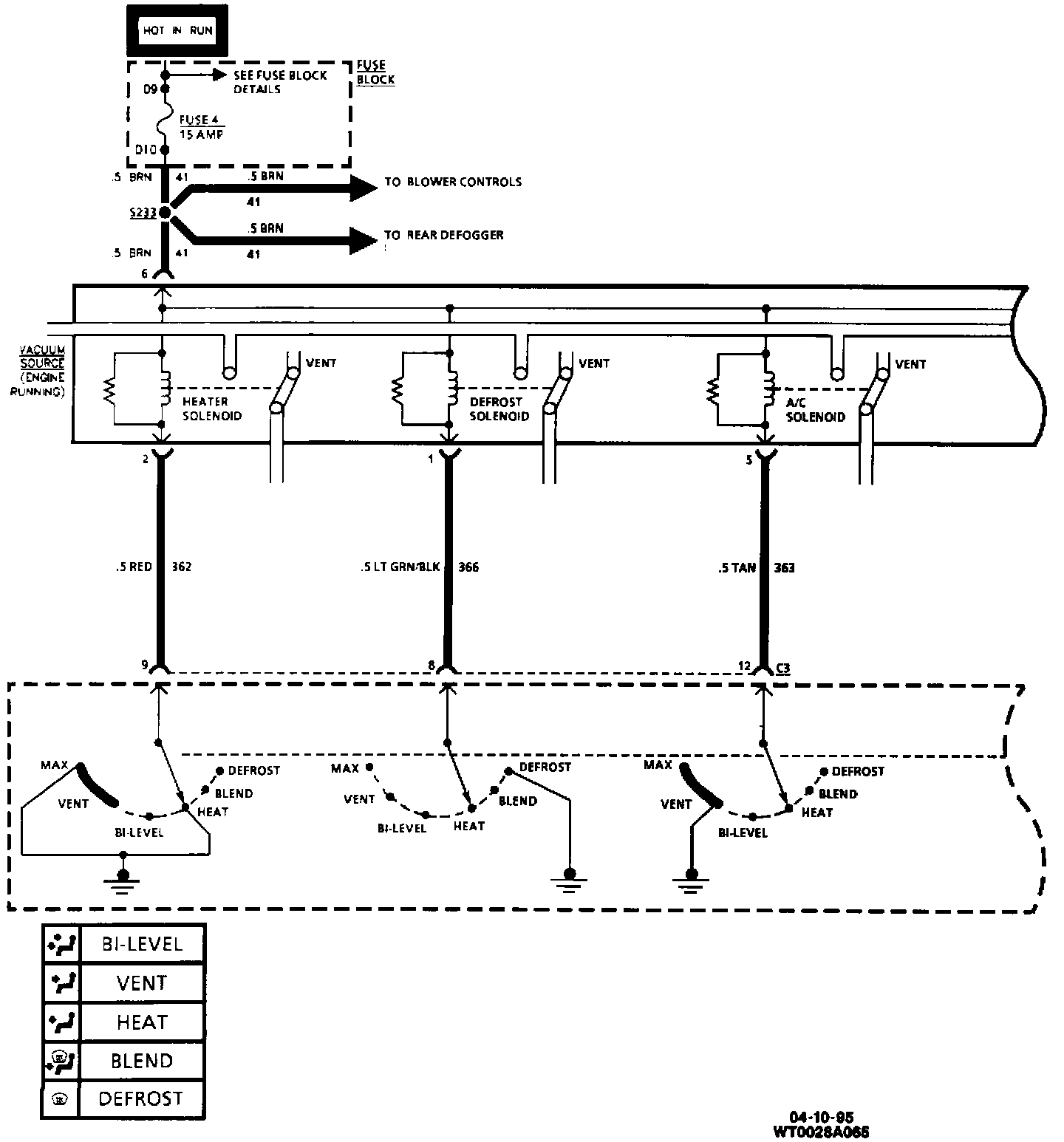

HVAC Air Delivery And Temperature Control (RPO C67):
HVAC Air Delivery And Temperature Control (RPO C67):
