Antilock Brake System Wiring Schematic
Antilock Brake System Wiring Schematic

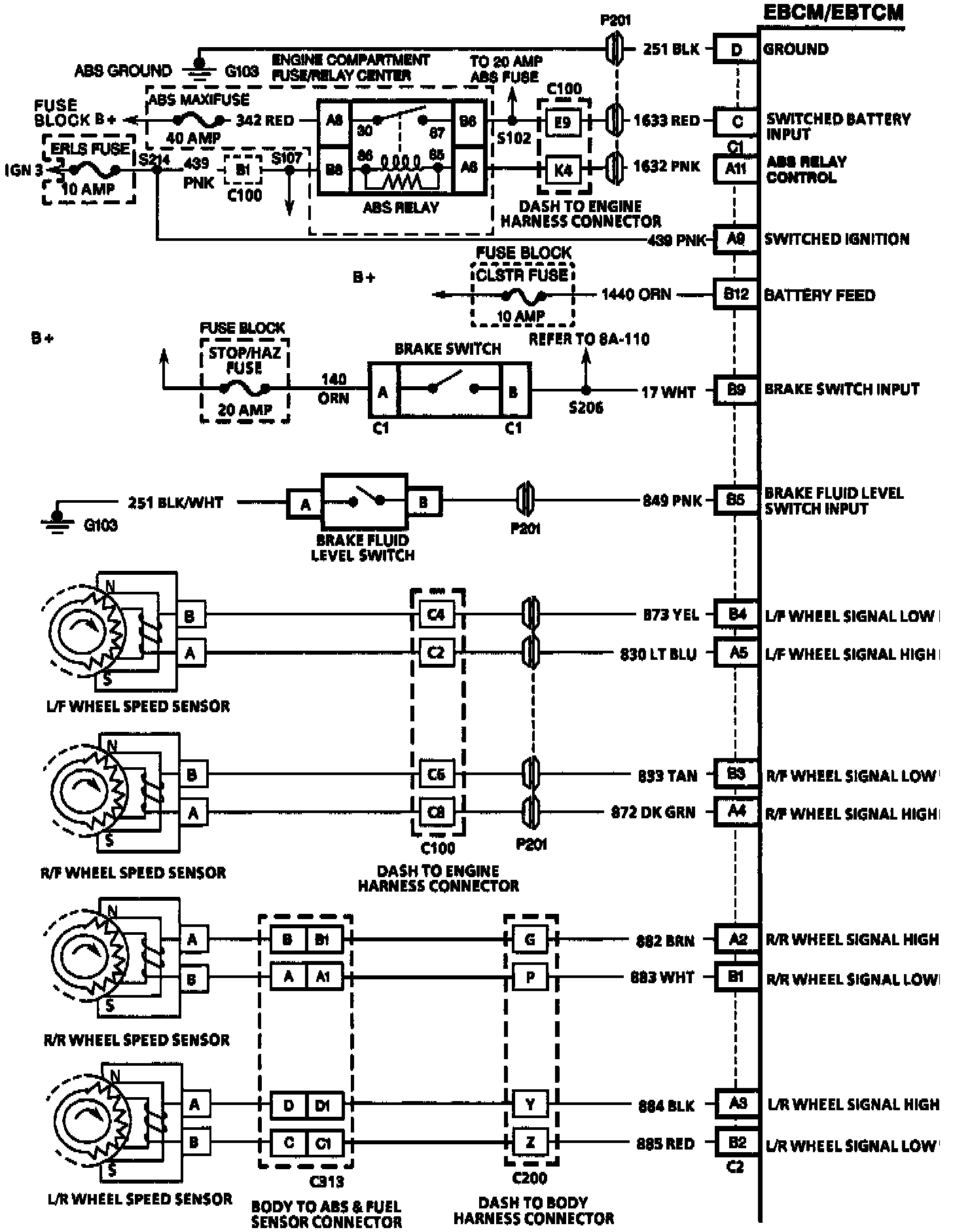

Fig. 17 ABS Wiring Circuit (Part 1 Of 2).:

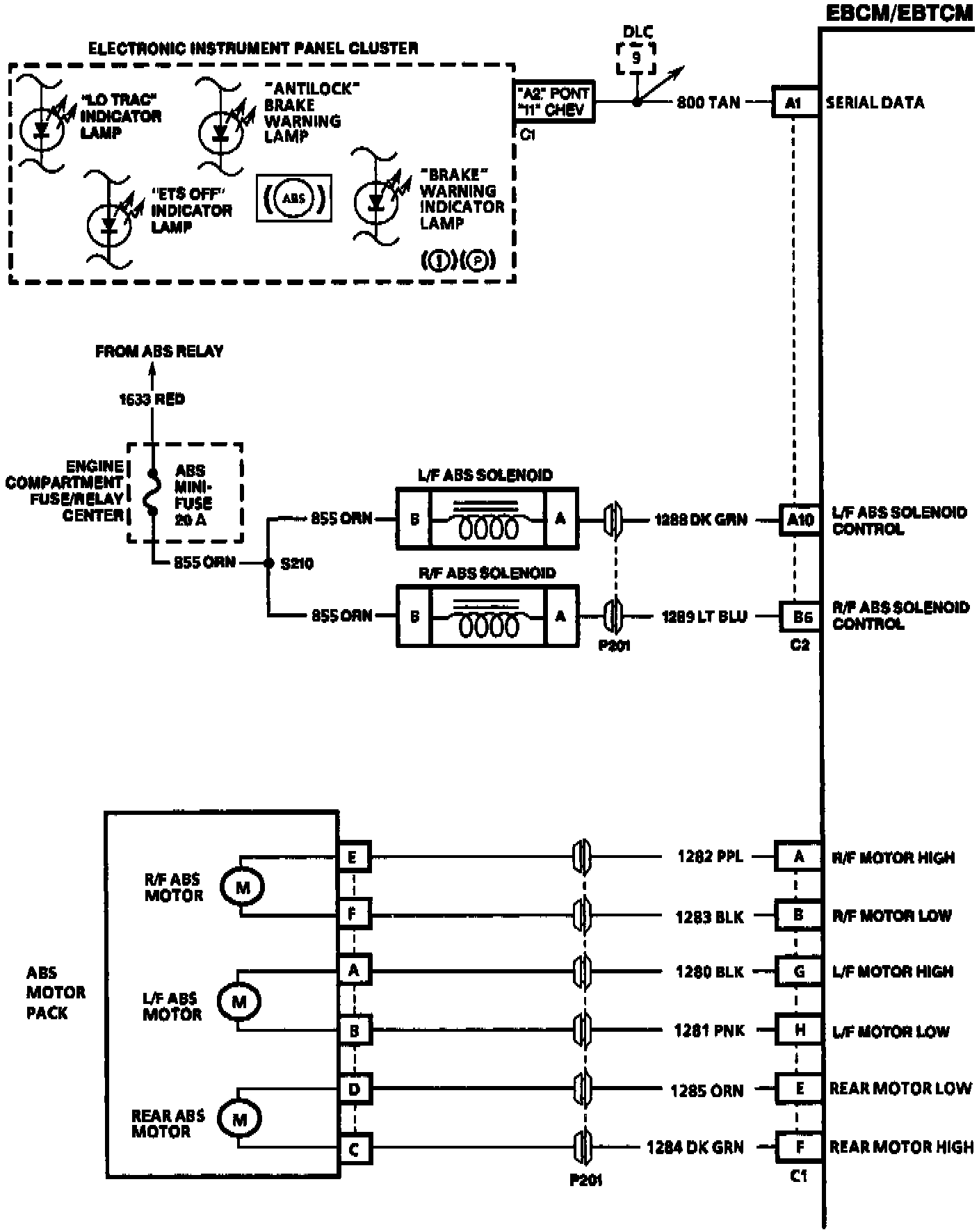

Fig. 17 ABS Wiring Circuit (Part 2 Of 2).:
Refer to the
ABS
wiring circuits,
Fig. 17
, when performing diagnostic procedures.
