Low Roller Clutch and Reaction Gearset Disassemble

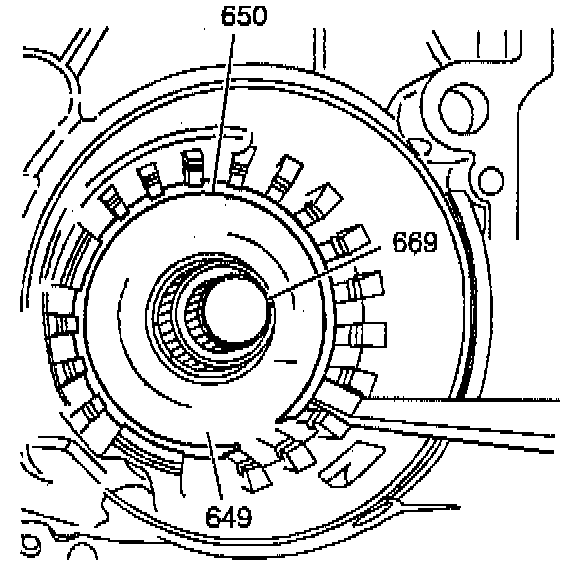

1. Using a large flat blade screwdriver, remove the retainer ring (650) for the low and reverse clutch housing from the case.

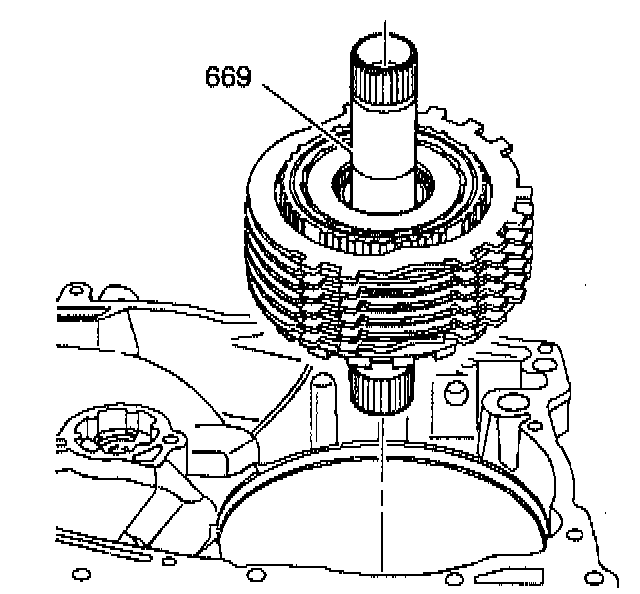

2. Grasp the final drive sun gear shaft (669) and lift the following parts out of the case:
^ The low and reverse clutch assembly (649).
^ The low roller clutch and reaction carrier assembly (662).
^ The reaction internal gear (668).
