Fixed Antenna Replacement

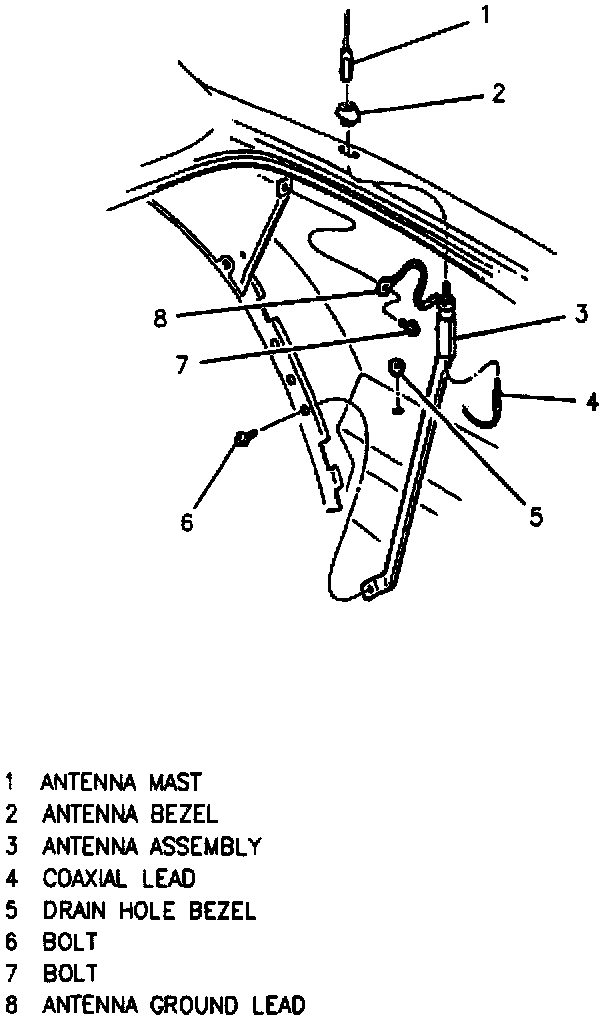

Fixed Antenna Mounting:

Important: Make sure all attachments are tight. Plug the antenna lead-in firmly into radio.

REMOVE OR DISCONNECT
1. Rear compartment trim.
2. Antenna mast.
3. Coaxial lead.
4. Antenna ground lead bolt.
5. Antenna bracket bolt.
6. Antenna assembly.
7. Bezel from quarter panel.

INSTALL OR CONNECT
^ Apply lubricant to bezel.
1. Bezel into quarter panel.
2. Antenna assembly.
3. Antenna bracket bolt.
Tighten
^ Bolt to 7.5 N.m (66 lb. in.).
4. Antenna ground lead bolt.
Tighten
^ Bolt to 7.5 N.m (66 lb. in.).
. Coaxial lead.
6. Antenna mast.
7. Rear compartment trim.
