Suspension Control ( Automatic - Electronic )
>>
Suspension Controls
Suspension Controls

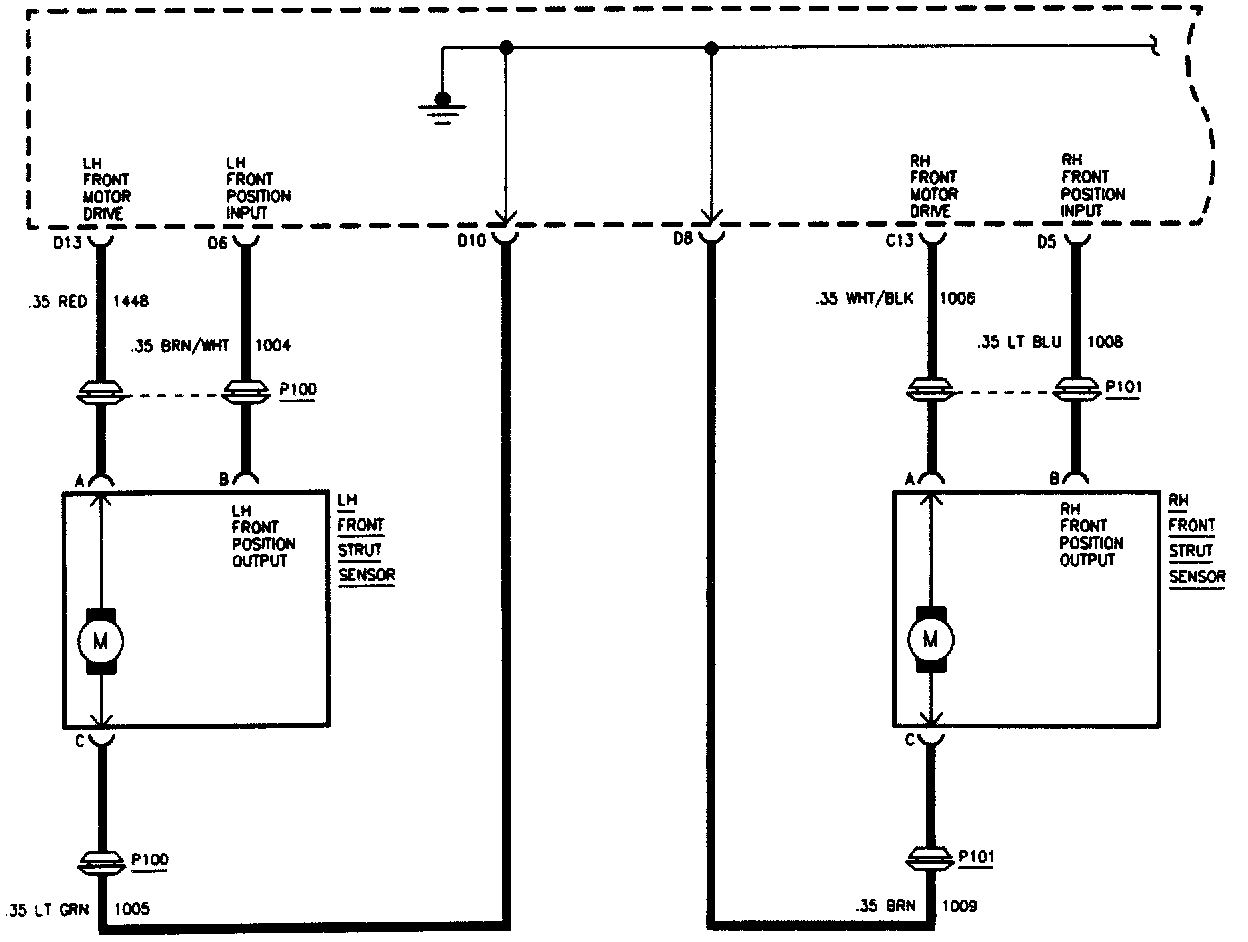

Suspension Controls (Part 1 Of 4):

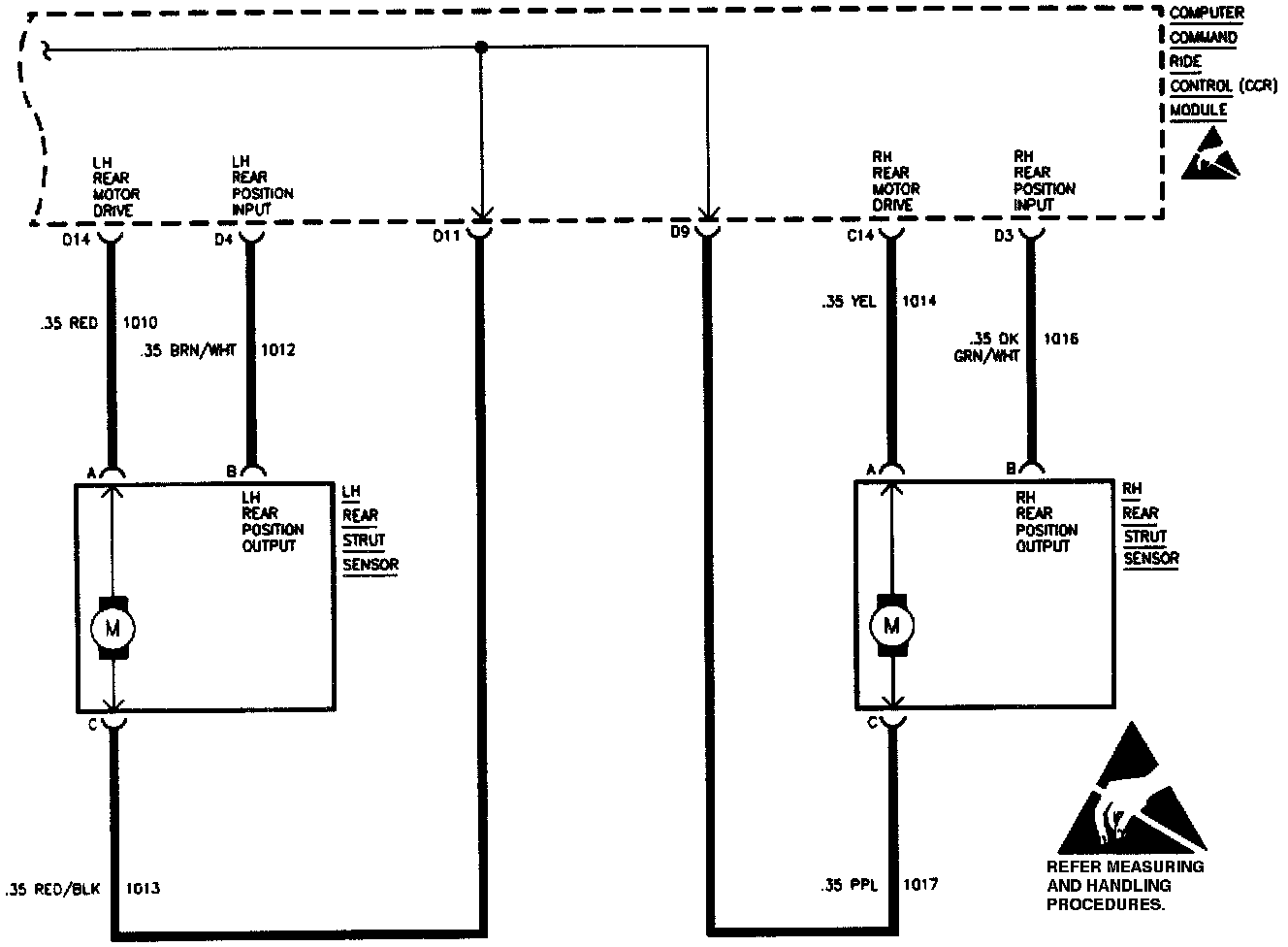

Suspension Controls (Part 2 Of 4):

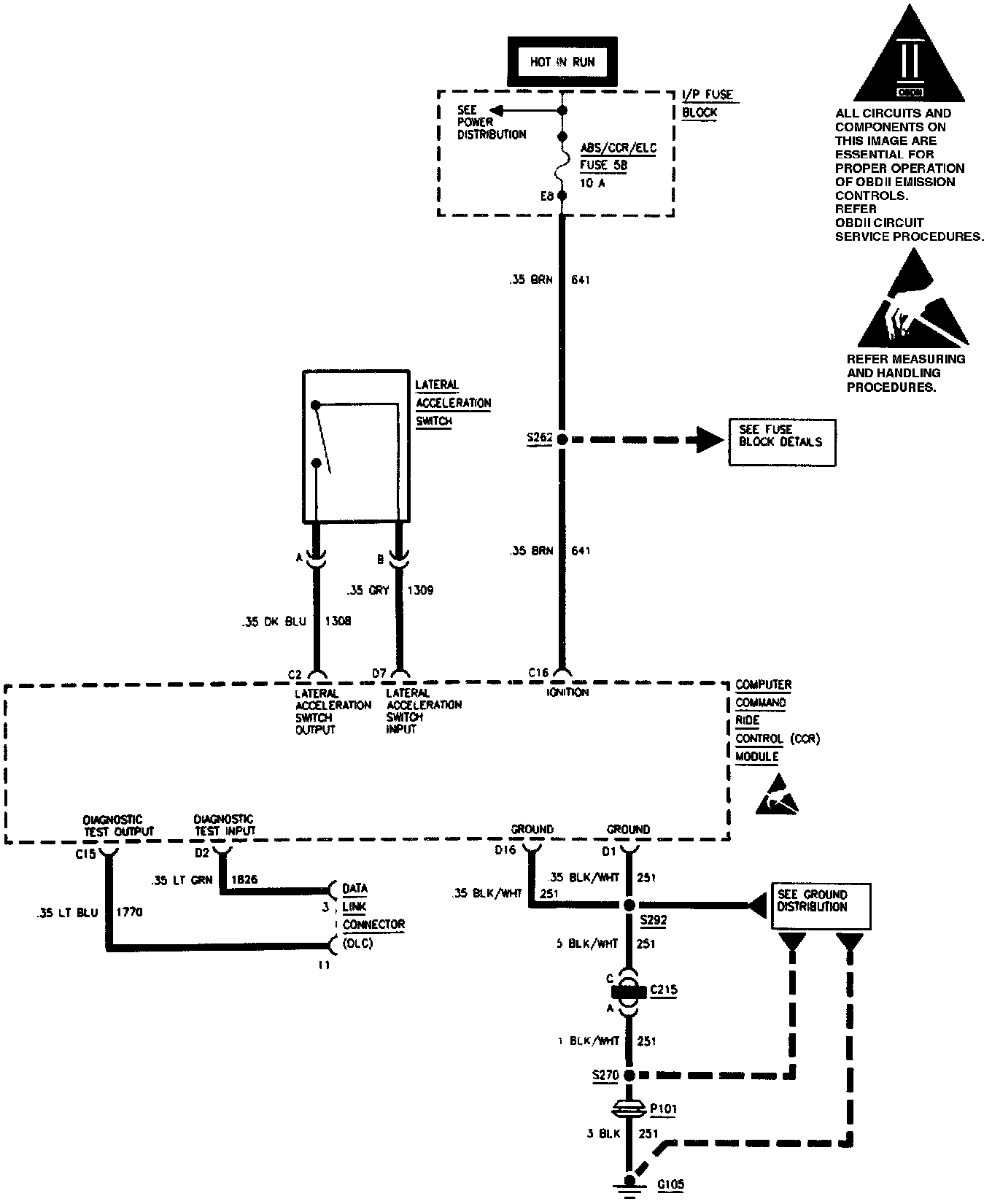

Suspension Controls (Part 3 Of 4):
Suspension Controls (Part 4 Of 4):
