Home >> Pontiac >> 1997 >> Bonneville V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> Shift Select Switch

Shift Select Switch

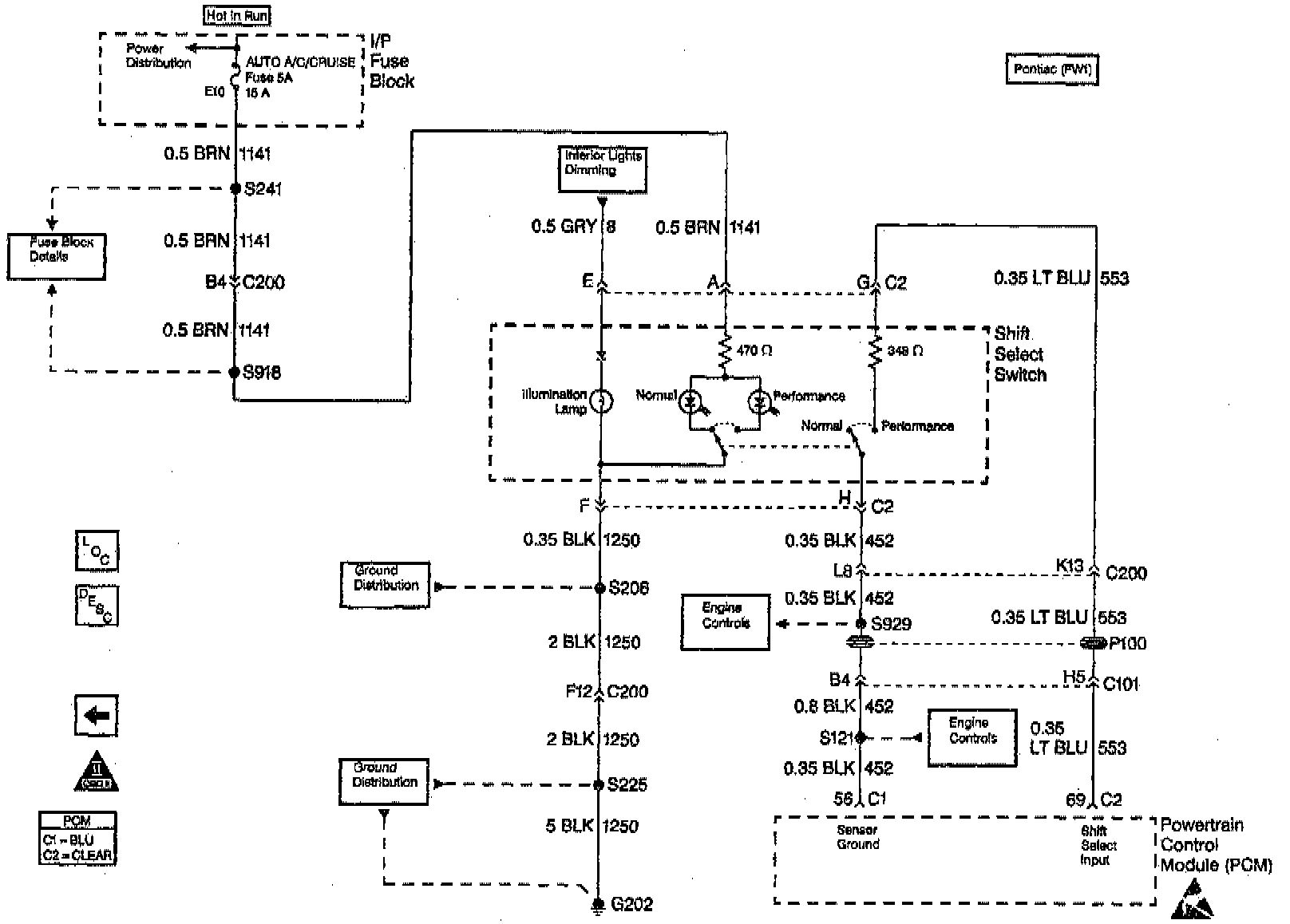

Wiring Diagram:
