With UB3

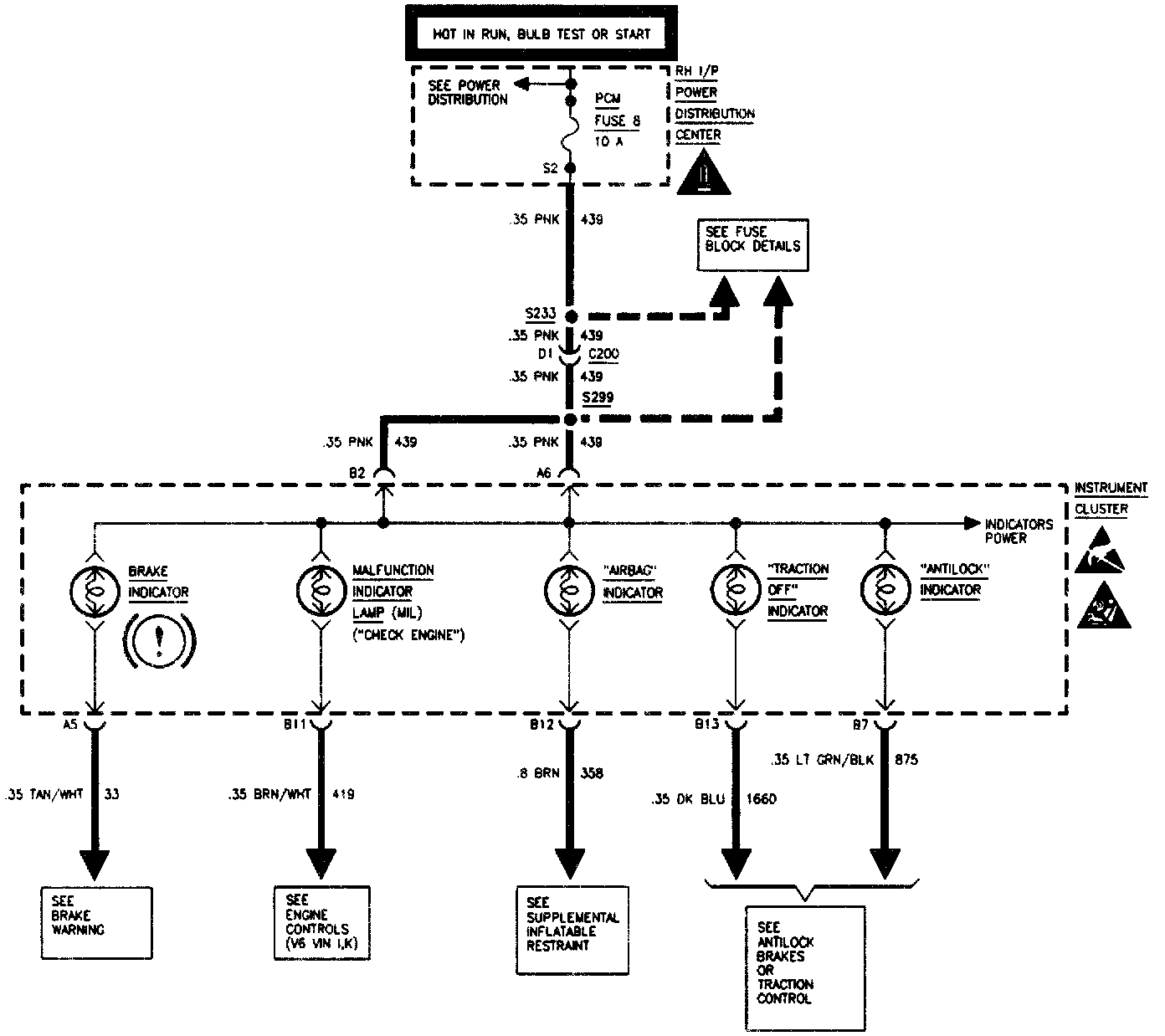

Gauges Cluster (Part 1 Of 8):

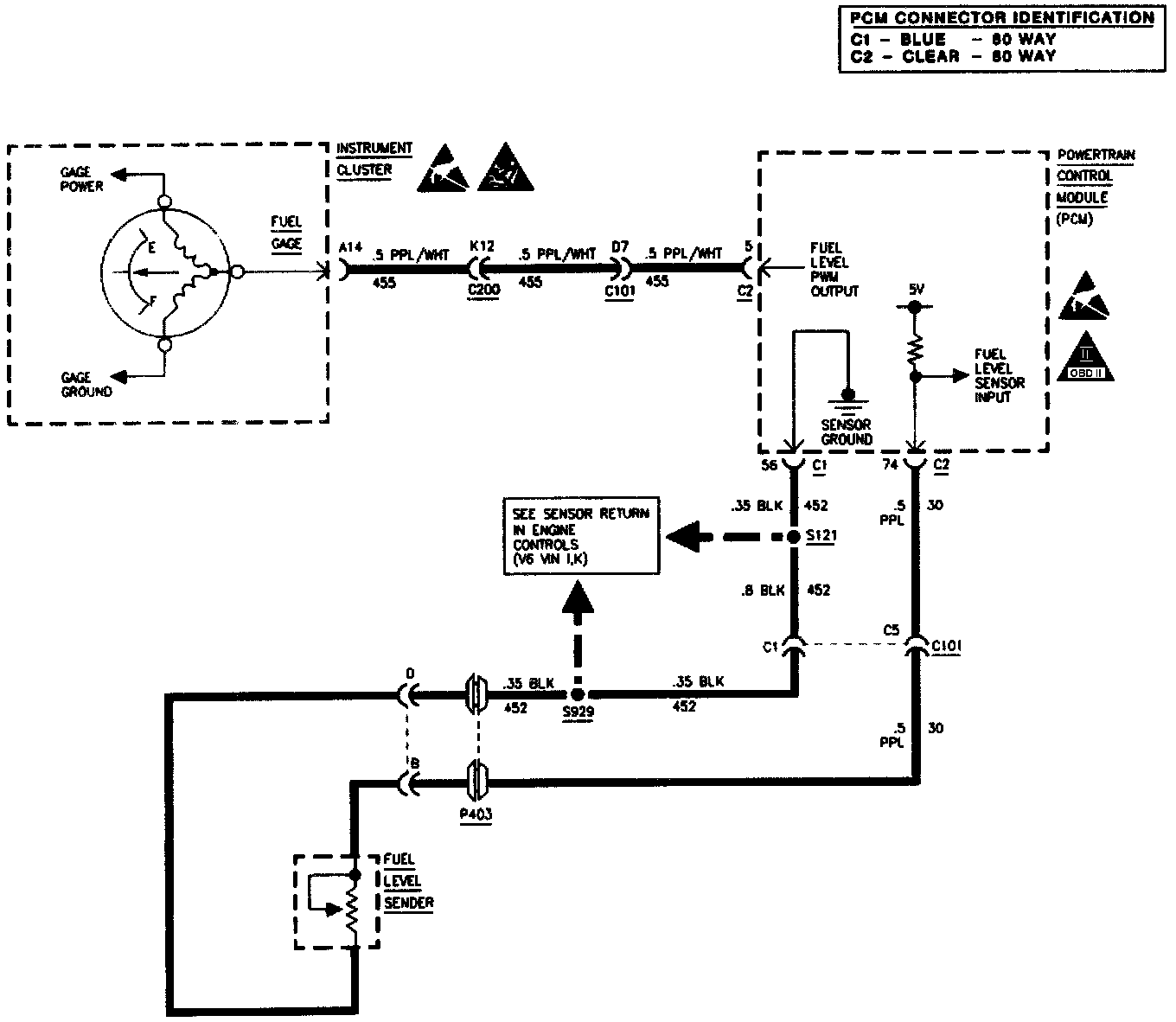

Gauges Cluster (Part 2 Of 8):

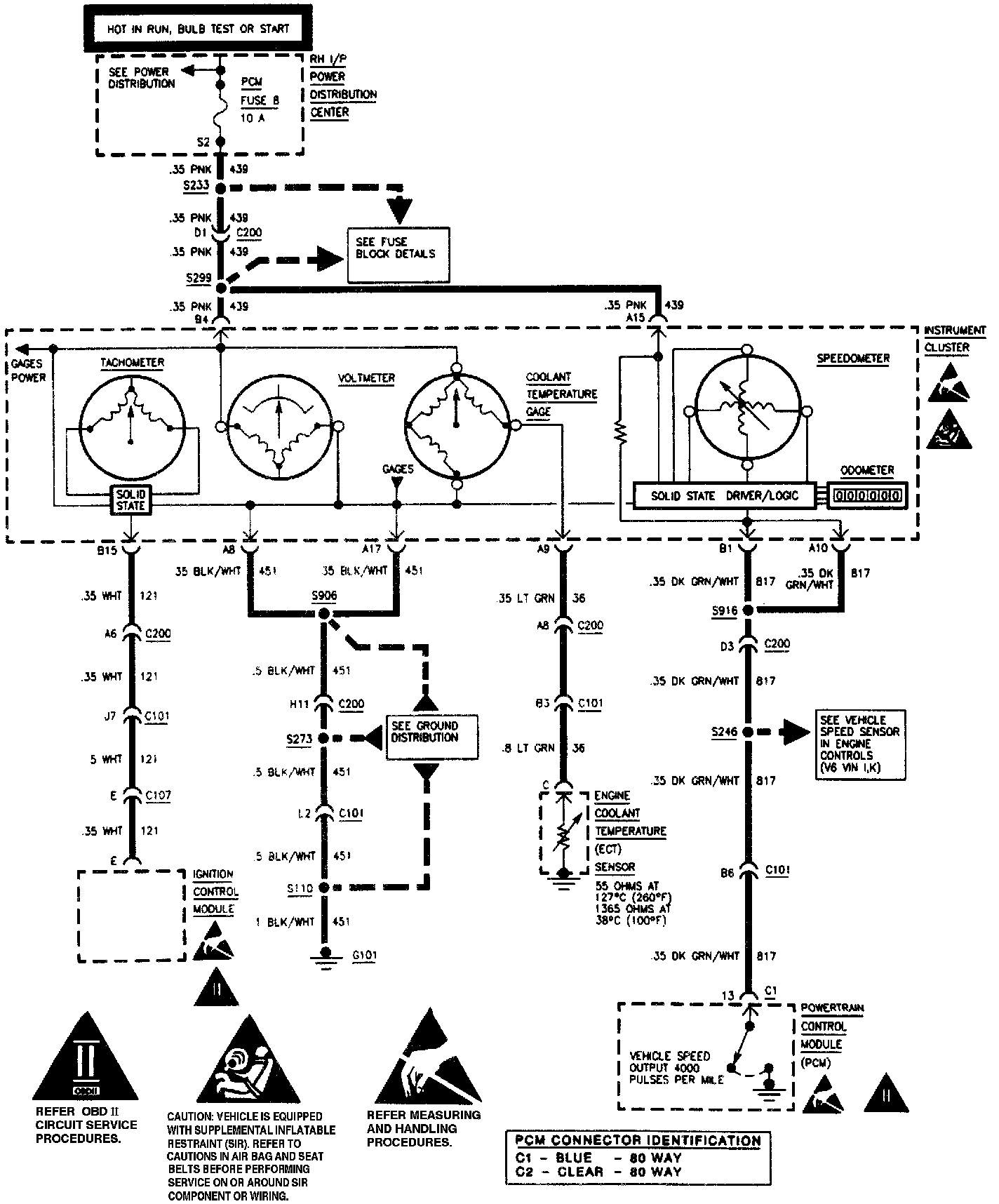

Gauges Cluster (Part 3 Of 8):

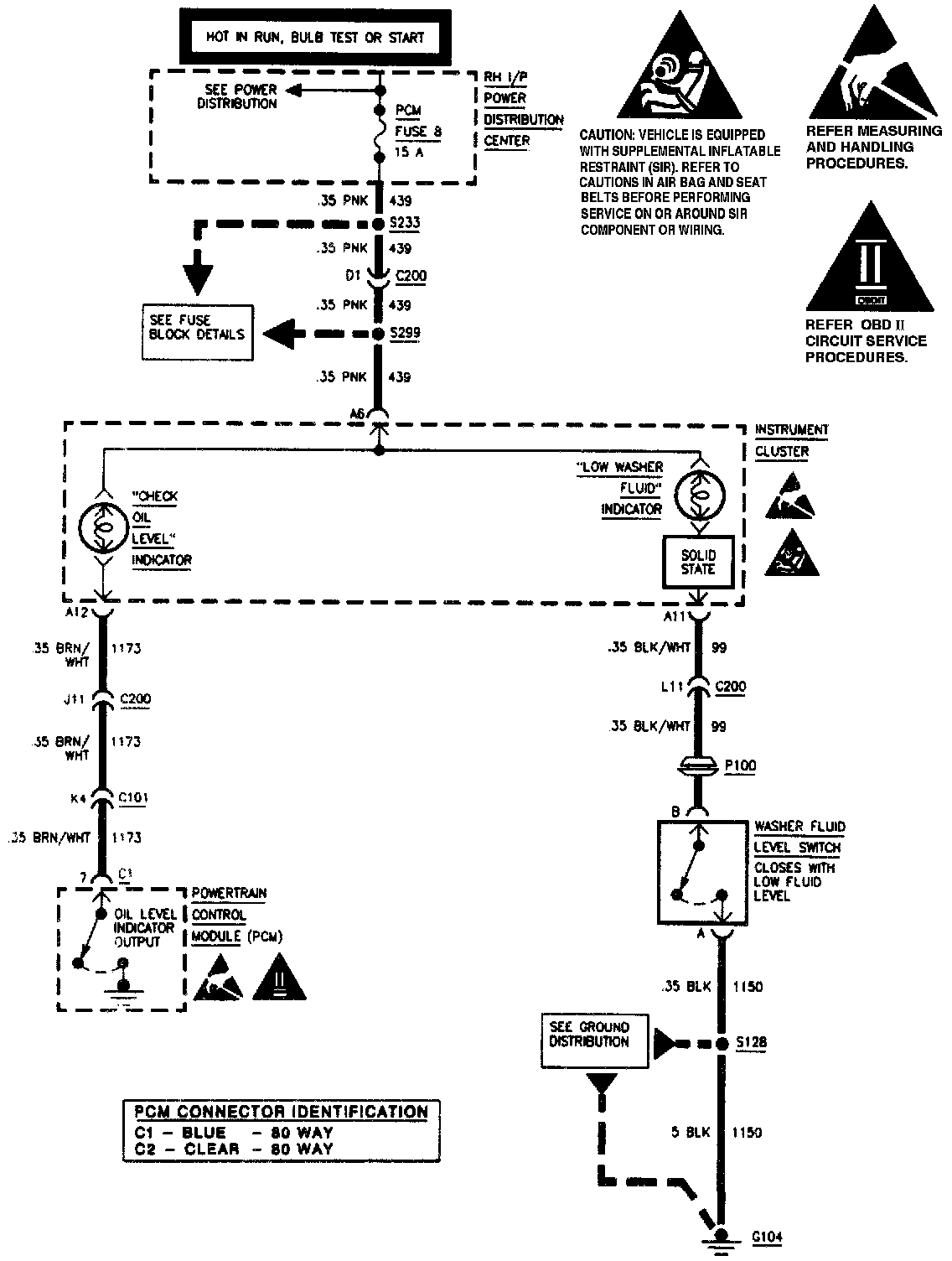

Gauges Cluster (Part 4 Of 8):




Gauges Cluster (Part 5 Of 8):




Gauges Cluster (Part 6 Of 8):




Gauges Cluster (Part 7 Of 8):




Gauges Cluster (Part 8 Of 8):
