Headlamp: Service and Repair

Remove or Disconnect

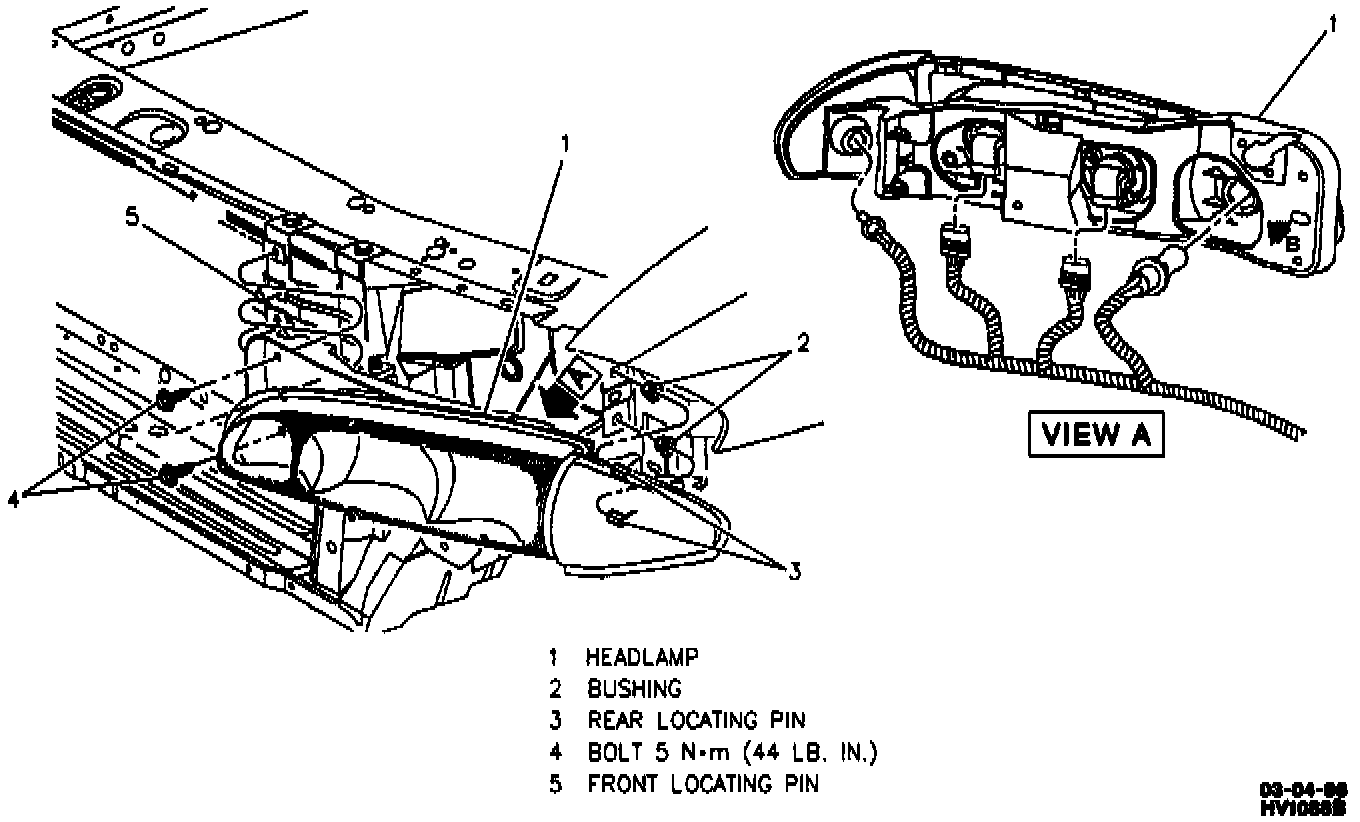

1. Bolts retaining inboard edge of headlamp.
2. Push fascia down, pull headlamp forward slightly at side marker and slide headlamp outboard to disengage locating pins.
3. Headlamp.
4. Headlamp connectors.

Install or Connect
1. Headlamp connectors to headlamp.
2. Headlamp.
3. Slide headlamp inboard to engage locating pins.
4. Bolts to retain headlamp.

Tighten
^ Bolts to 5 Nm (44 lb. in.).
