Electrical Diagrams

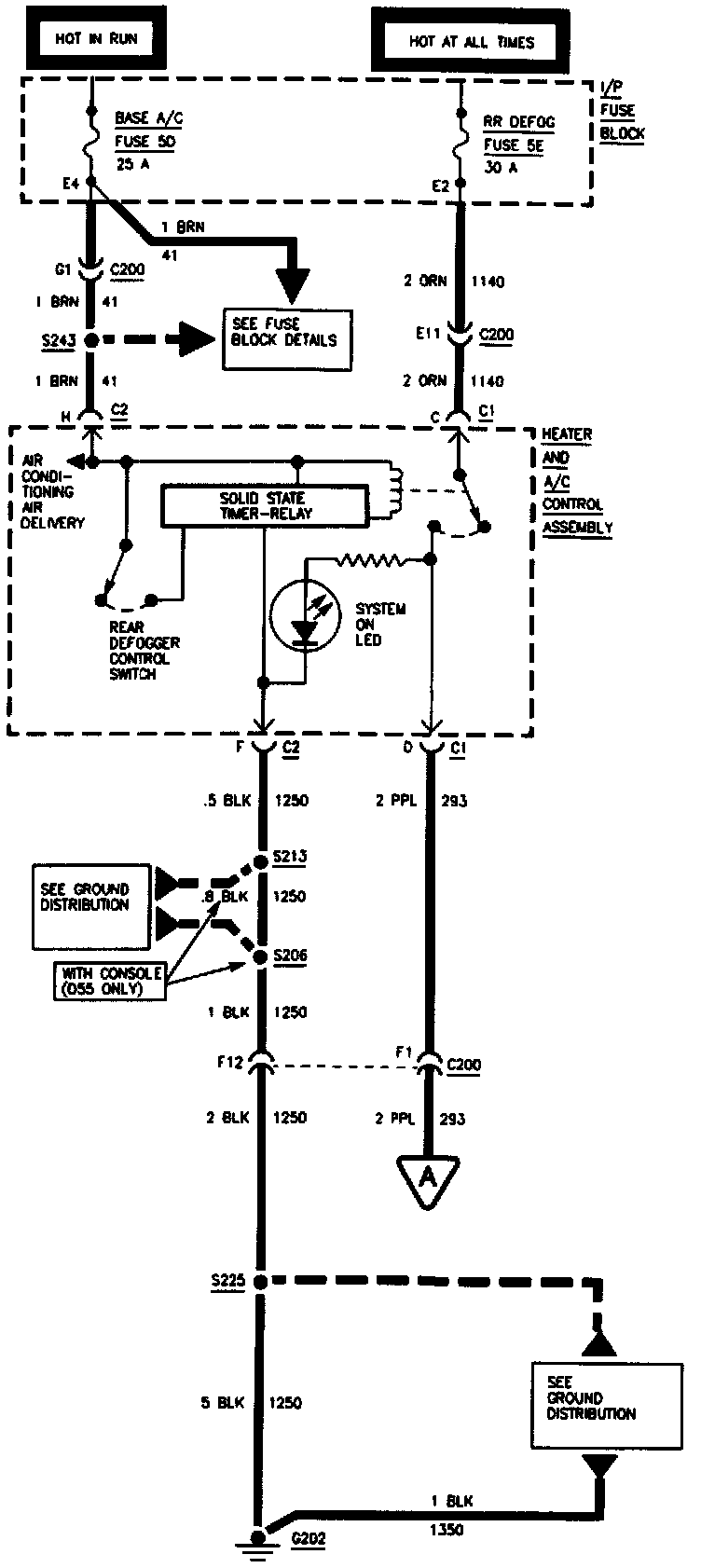

Defogger And Heated Mirrors:



Defogger And Heated Mirrors:



Defogger And Heated Mirrors:
