Instrument Panel Cluster Trim Plate Replacement

Description:

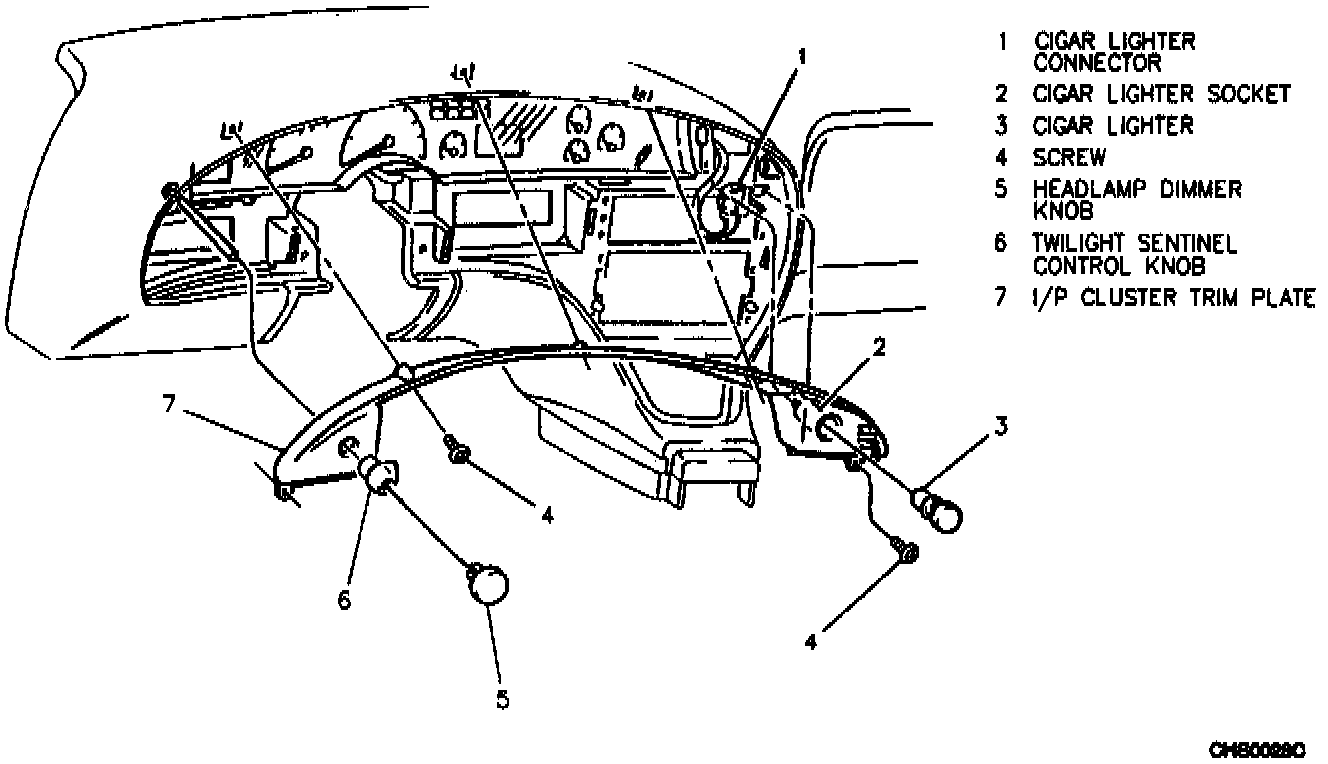

Remove or Disconnect

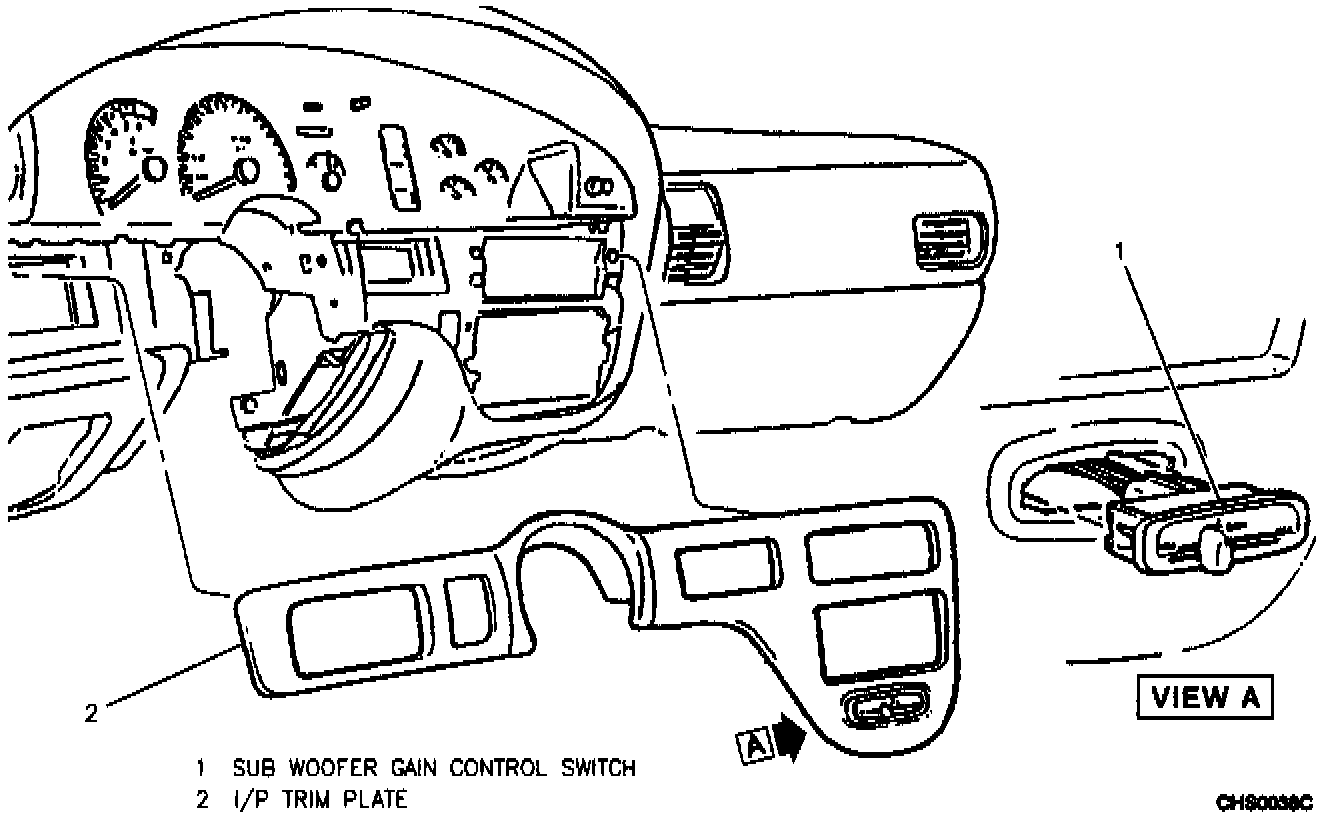

1. I/P trim plate (lower), by prying up carefully.
^ Pull I/P trim plate up, then rearward.
2. Sub-woofer gain control switch connector (if equipped).
3. I/P cluster trim plate (upper) fasteners to I/P.
4. Interior lamps dimmer and twilight sentinel control knob from head/park lamp switch.

Important
^ Be careful not to lose interior lamps dimmer knob retainer.

5. Cigar lighter connector.
6. I/P cluster trim plate.

Remove or Disconnect
1. Cigar lighter connector.
2. I/P cluster trim plate (upper) to I/P assembly, carefully inserting tab.
3. Interior lamps dimmer and twilight sentinel control knob to head/park lamp switch.

Important
^ Properly align retainer in interior lamps dimmer knob before installing to insure proper retention.

4. I/P cluster trim plate fasteners to I/P.

Tighten
^ Fasteners to 1.9 Nm (17 lb. in.).

5. Sub-woofer gain control switch connector (if equipped).
6. I/P trim plate (lower), press into place.
