Chart #3 ELC Height Sensor Test
Chart #3 ELC Height Sensor Test

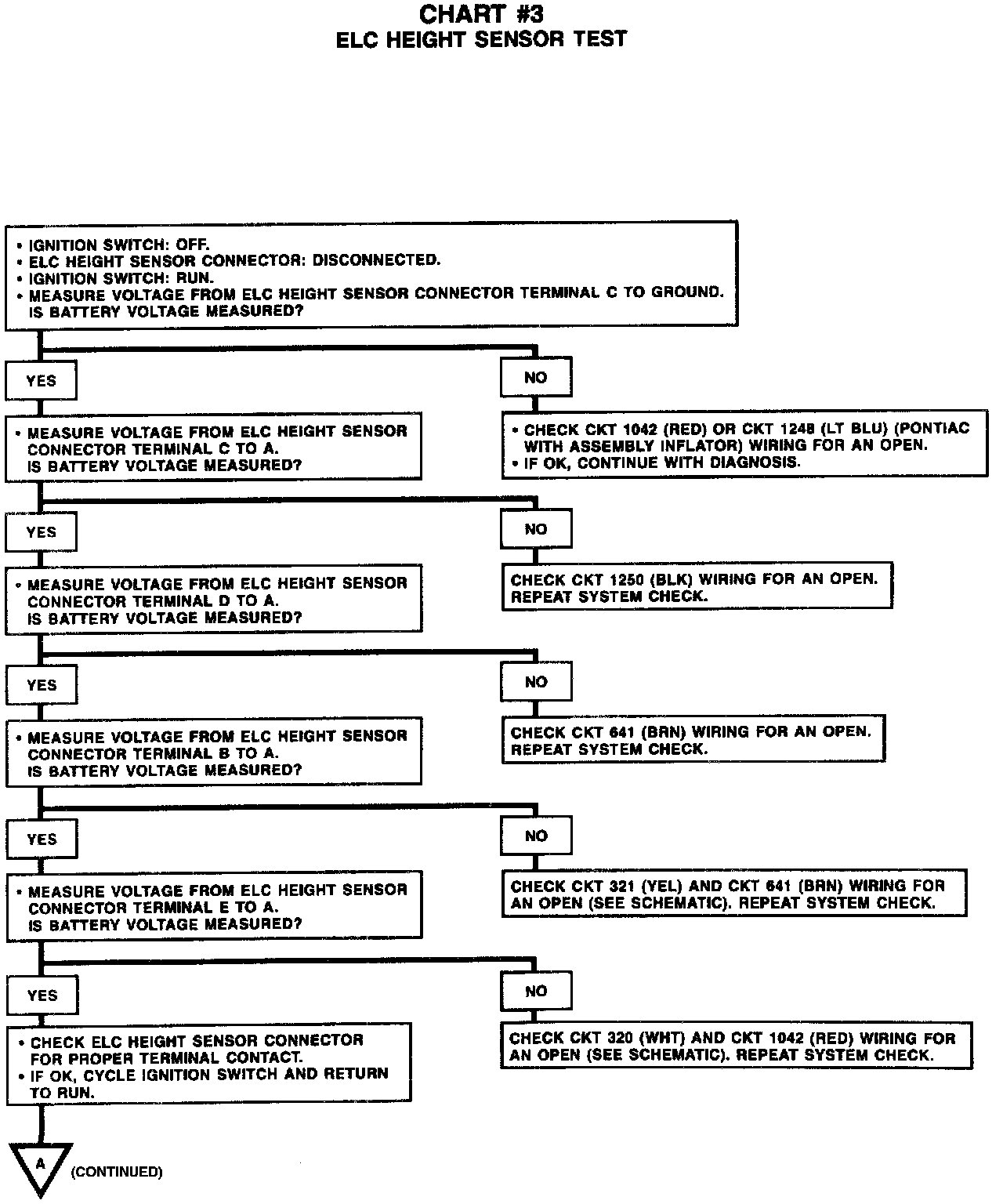

Chart #3 ELC Height Sensor Test (Part 1 Of 2):

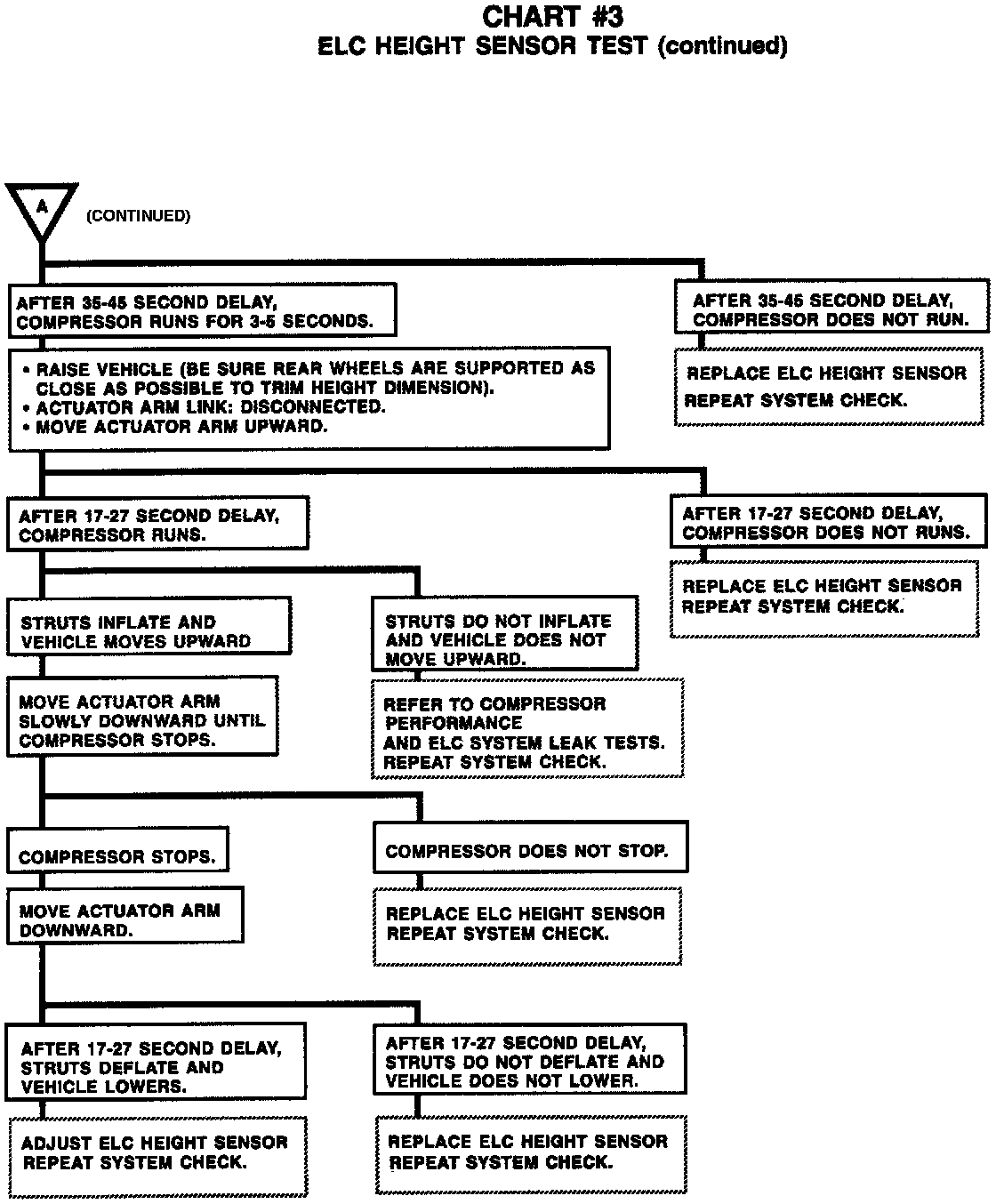

Chart #3 ELC Height Sensor Test (Part 2 Of 2):
