Chart 2 Seat Won't Go Forward/ Back, Up/Down OK
Chart 2 Seat Won't Go Forward/ Back, Up/Down OK

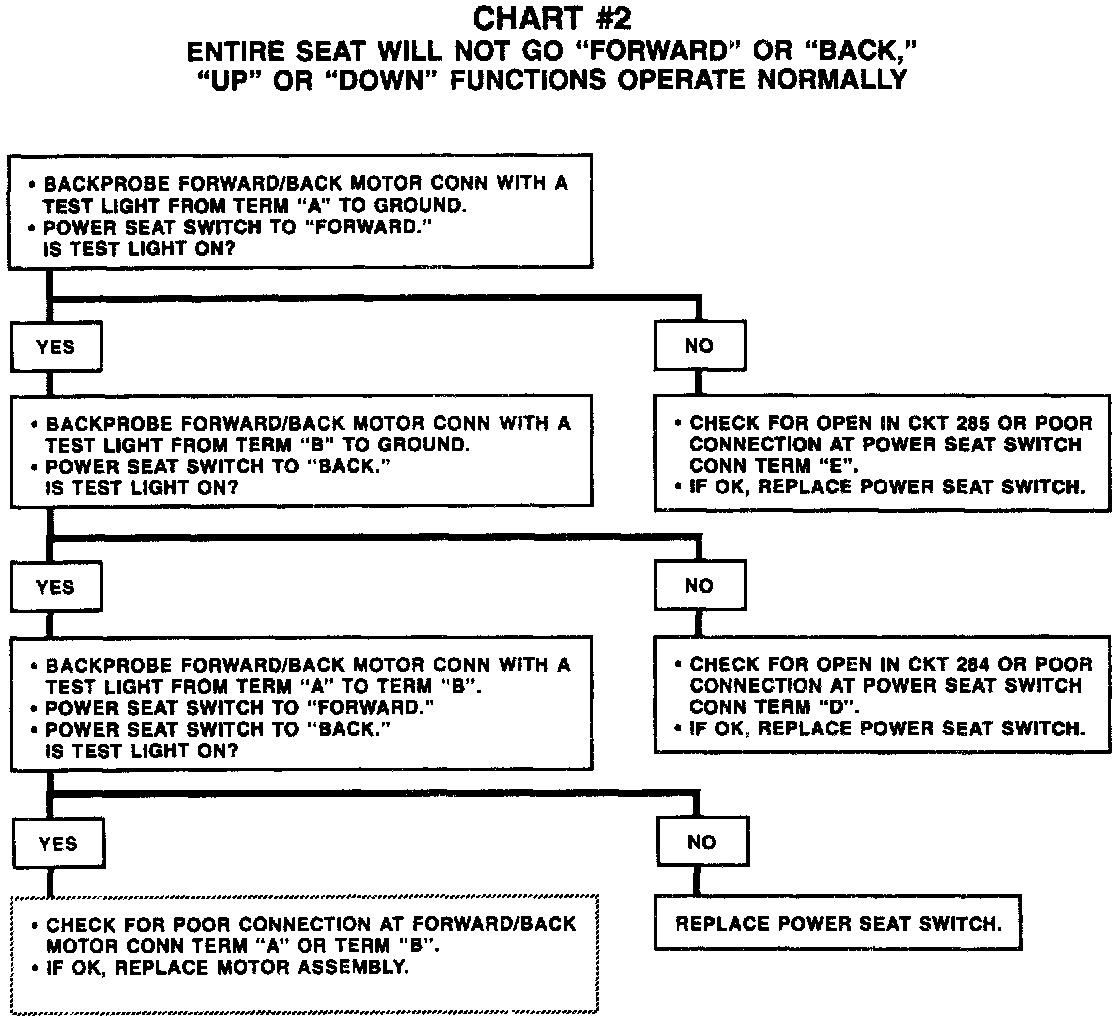

Chart #2 Entire Seat Will Not Go Forward/Back, Up/Down:
