Engagement Switch

Engagement Switch:

The turn signal and headlamp dimmer switch and cruise control actuator and windshield wiper and windshield washer lever (multi-function lever) cannot be serviced. The complete lever must be replaced.

Remove or Disconnect

CAUTION: Refer to Battery / Service Precautions

1. Battery negative cable.
2. Steering column access cover.
3. Electrical connector.
^ Make sure windshield wiper switch is in the "OFF" position.

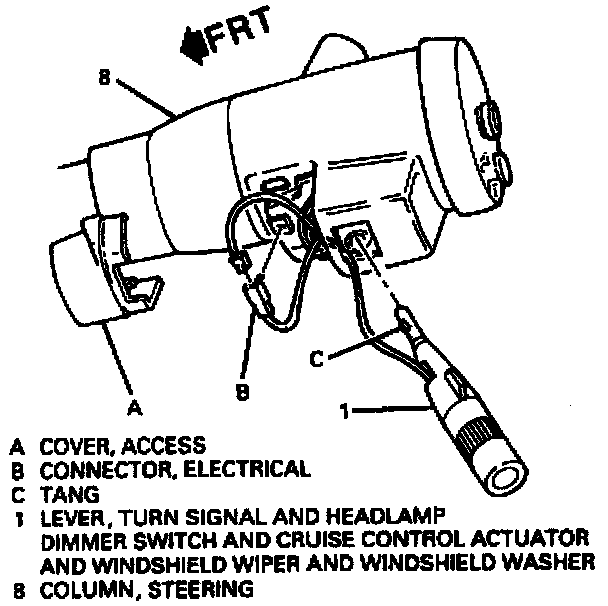

4. Lever (1) by pulling it straight out.

Install or Connect
1. Lever (1).
^ Align tang on lever (1) to notch on column (8) and push in until fully seated.
2. Electrical connector.
3. Steering column access cover.
4. Battery negative cable.
