Home >> Pontiac >> 1997 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> 2ND Gear, Clutch Anticipation Switch

2ND Gear, Clutch Anticipation Switch

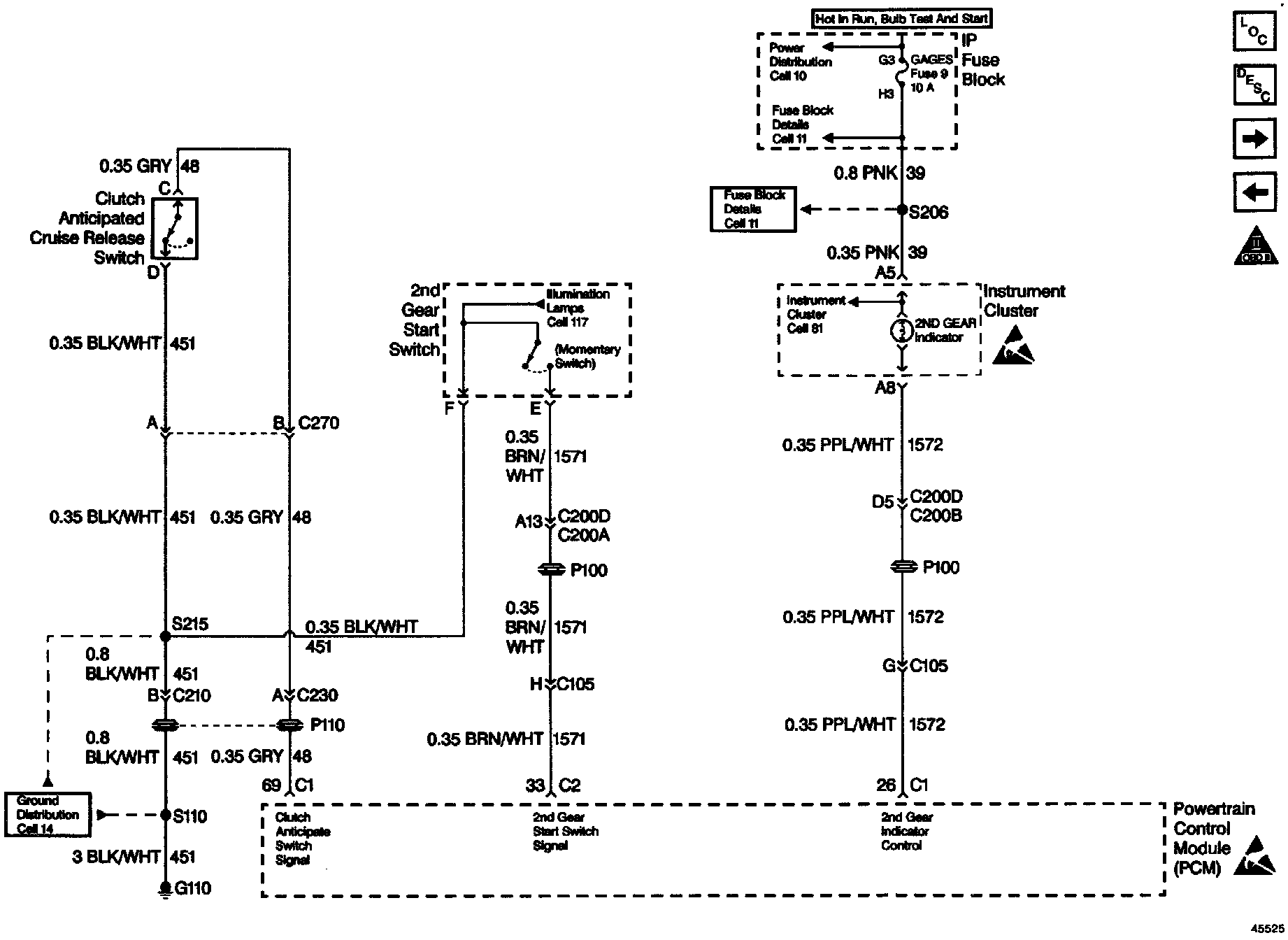

Wiring Diagram:
