Brake Proportioning/Combination Valve
Brake Proportioning/Combination Valve

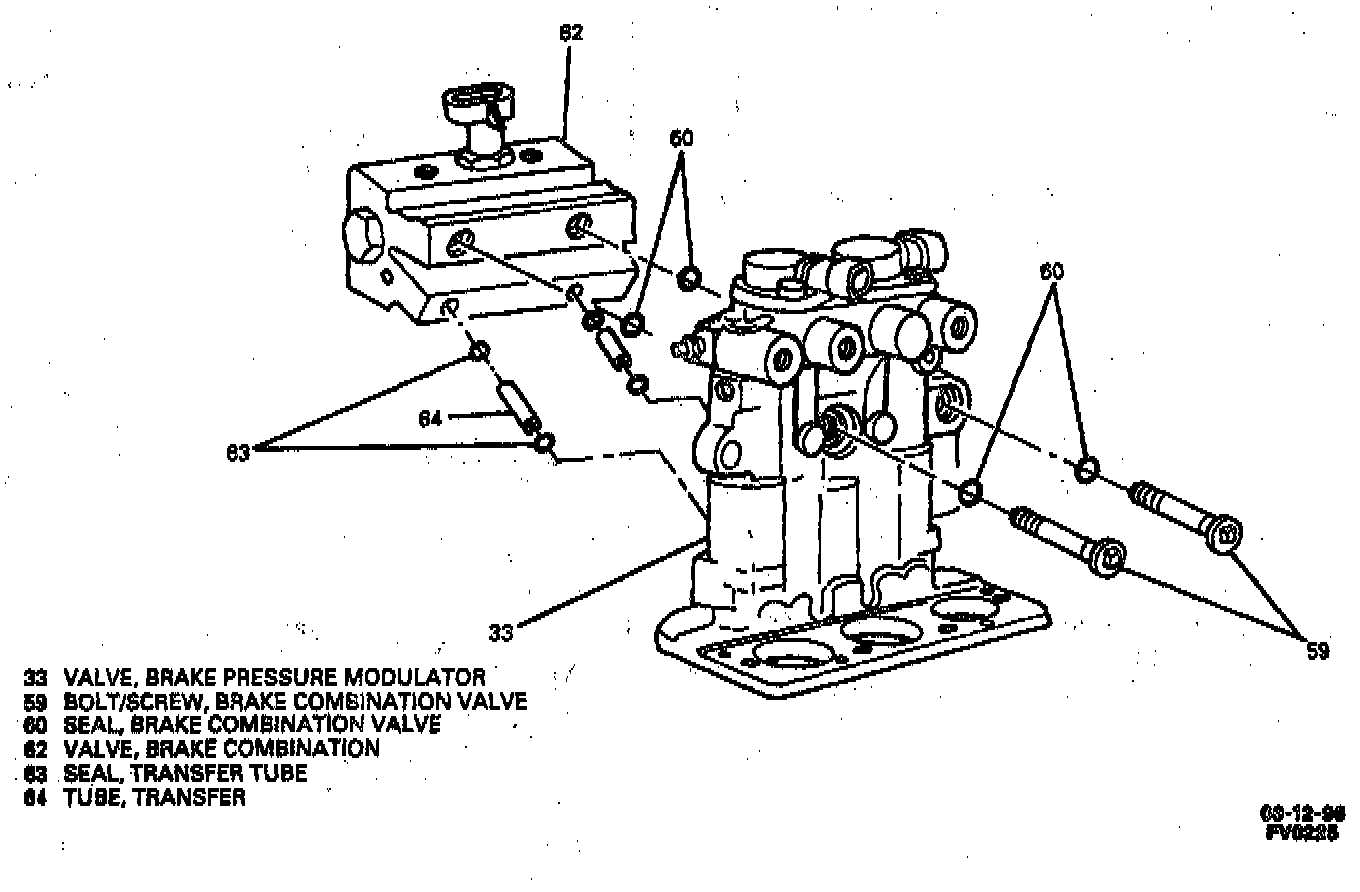

Brake Combination Valve And Brake Pressure Modulator Valve:
