Home >> Pontiac >> 1997 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Shoe

Brake Shoe

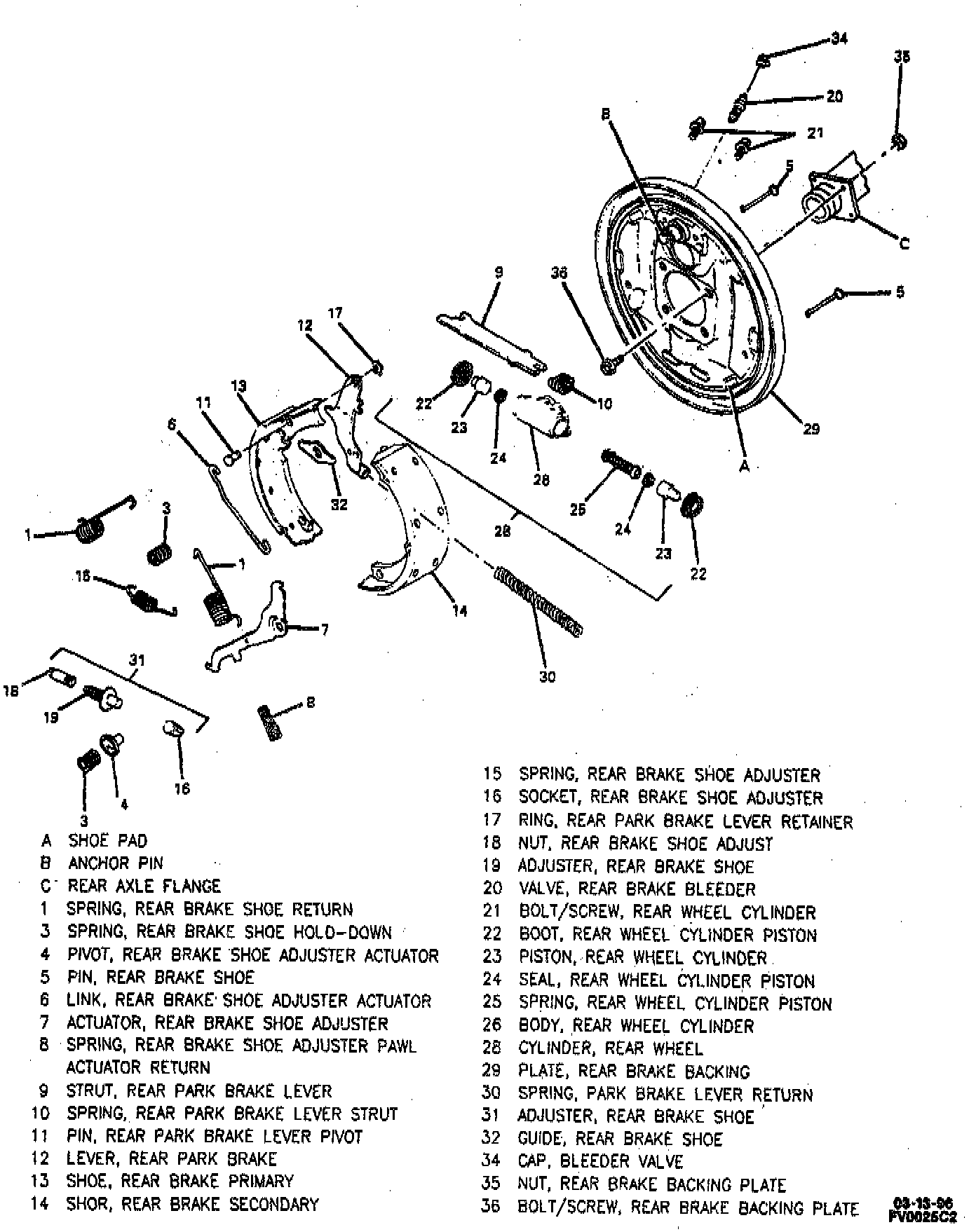

Rear Brake Components:
