Exhaust System

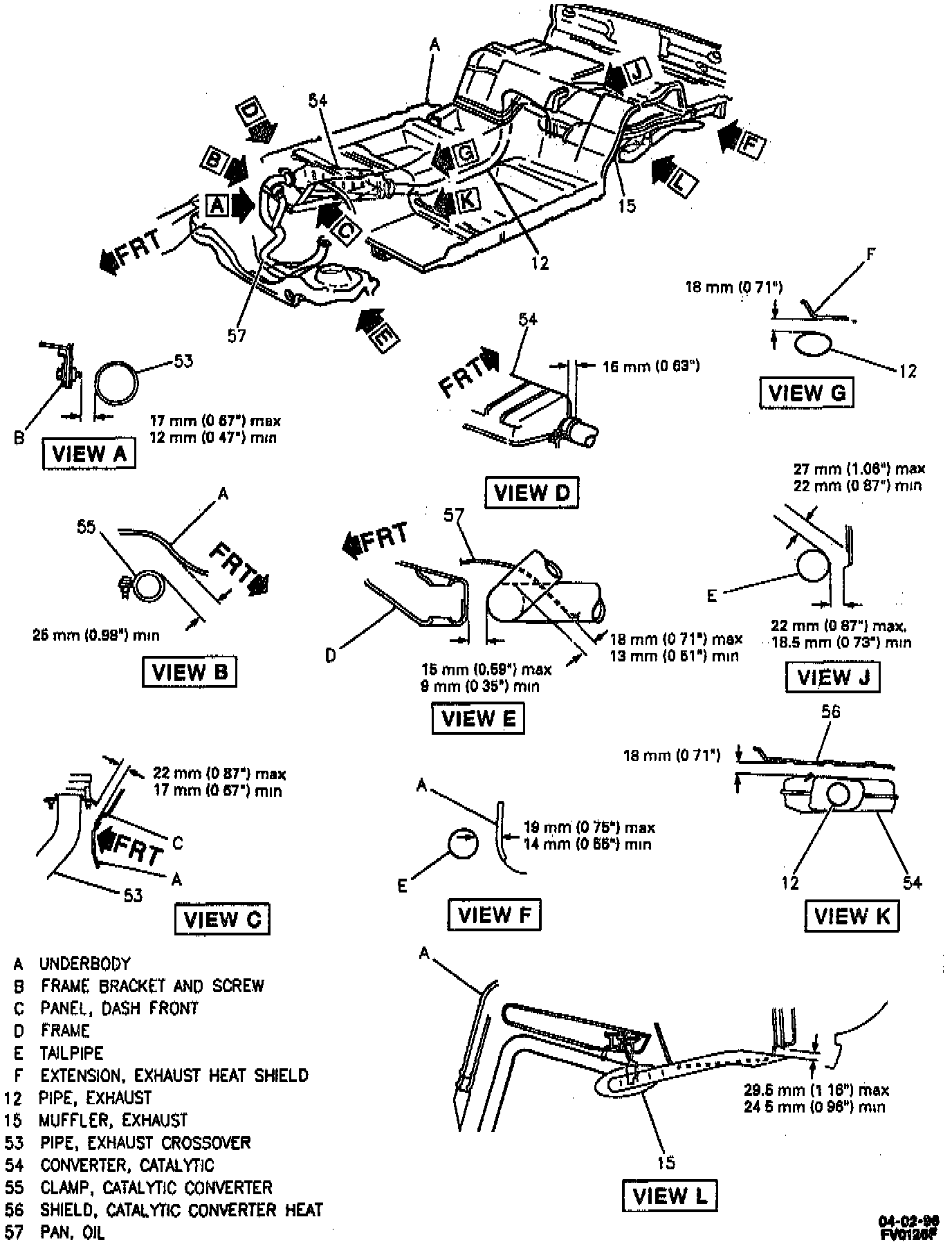

Exhaust System
System Clearance Dimensions (W/O Y87/w68):
System Clearance Dimensions (w/ Y87/w68):
