Removal and Replacement

Remove or Disconnect
1. Open hood.

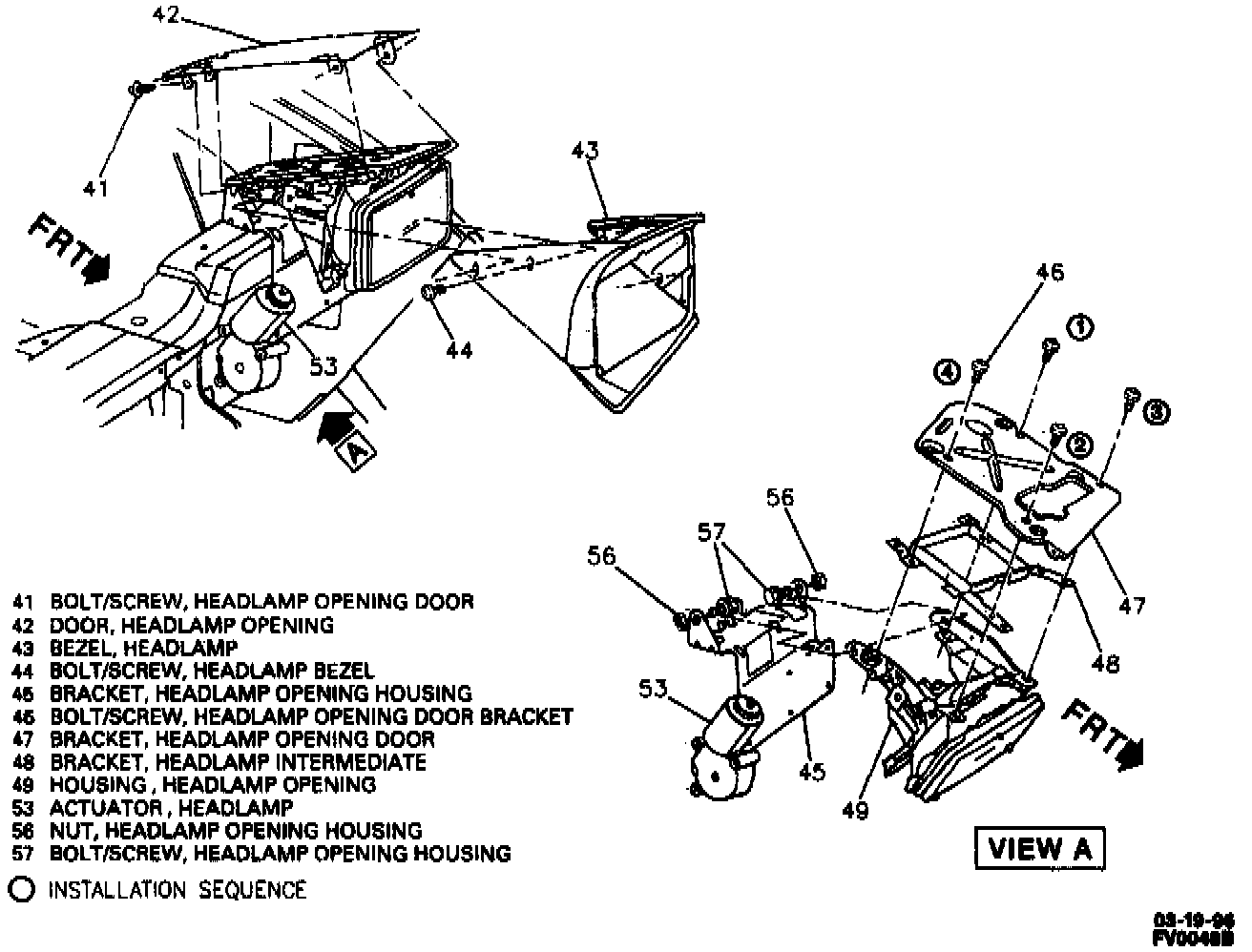

2. Headlamp bezel bolts/screws (44).
3. Headlamp bezel (43).
4. Headlamp bolts/screws attaching mounting ring to headlamp opening housing (49).
5. Headlamp mounting ring.
6. Electrical connector from headlamp.
7. Headlamp from vehicle.

Install or Connect

NOTICE: Refer to Service Precautions / Vehicle Damage Warnings / Fastener Requirements.

1. Headlamp to vehicle.
2. Electrical connector to headlamp.
3. Headlamp mounting ring.
4. Headlamp bolts/screws attaching mounting ring to headlamp opening housing (49).
^ Tighten securely.
5. Headlamp bezel (43).
^ Top of headlamp bezel (43) must be flush to inner surface of headlamp opening door (42).
6. Headlamp bezel belts/screws (44).
Tighten
^ Bolts/screws (44) to 1.7 Nm (15 lb in).
7. Close hood.
