Battery Replacement

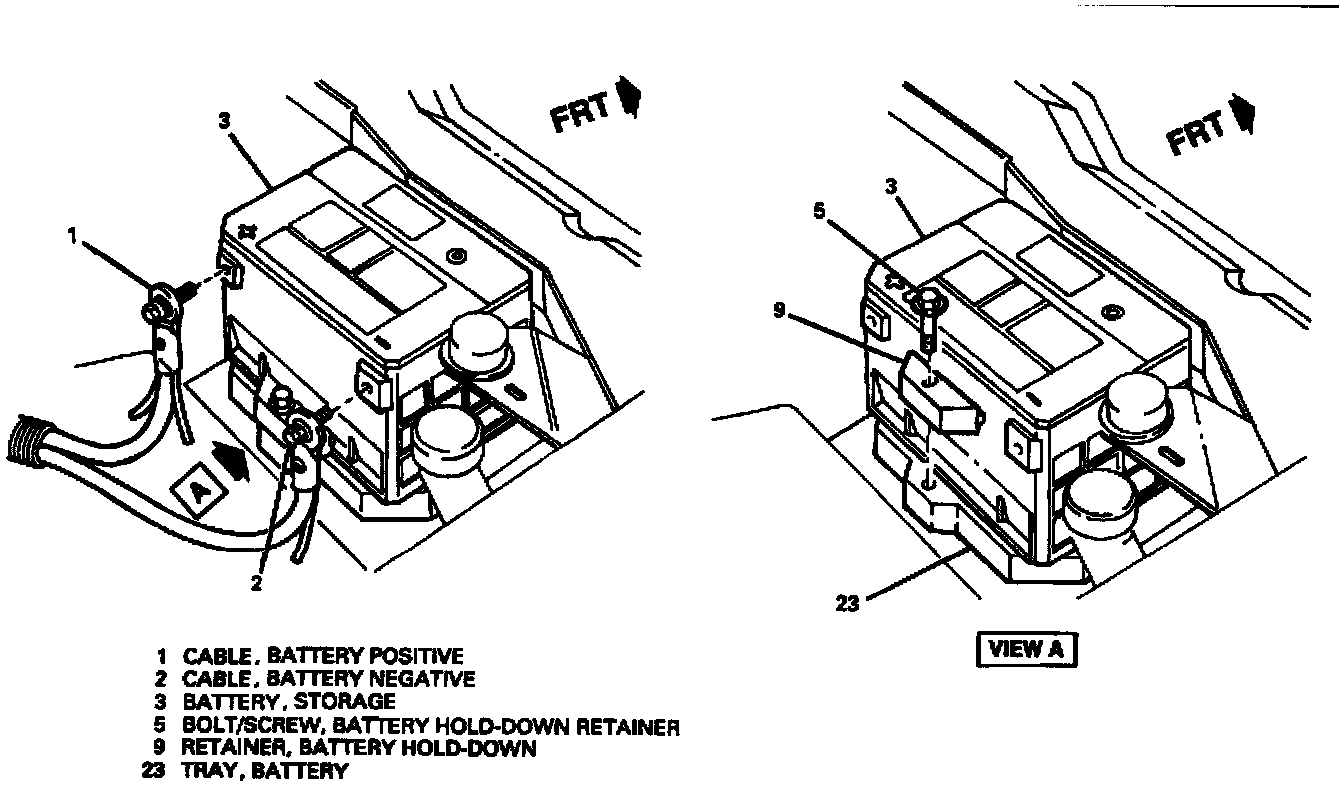

Battery:

REMOVE OR DISCONNECT

CAUTION: Refer to "Service Precautions".

1. Negative cable (2) from battery terminal.
2. Positive cable (1) from battery terminal.
3. Battery hold-down retainer bolt/screw (5) and hold-down retainer (9).
4. Battery (3).

INSTALL OR CONNECT

NOTICE: Refer to "Service Precautions".

1. Battery (3).
2. Battery hold-down retainer (9) and hold-down retainer bolt/screw (5).
Tighten
- Battery hold-down retainer bolt/screw (5) to 18 N.m (13 lb. ft.).
3. Positive cable (1) to battery terminal.
Tighten
- Positive battery cable (1) to 15 N.m (11 lb. ft.).
4. Negative cable (2) to battery terminal.
Tighten
- Negative battery cable (2) to 15 N.m (11 lb. ft.).
