2-4 Band, Input Clutches, Input Gear Set Removal

REMOVAL PROCEDURE

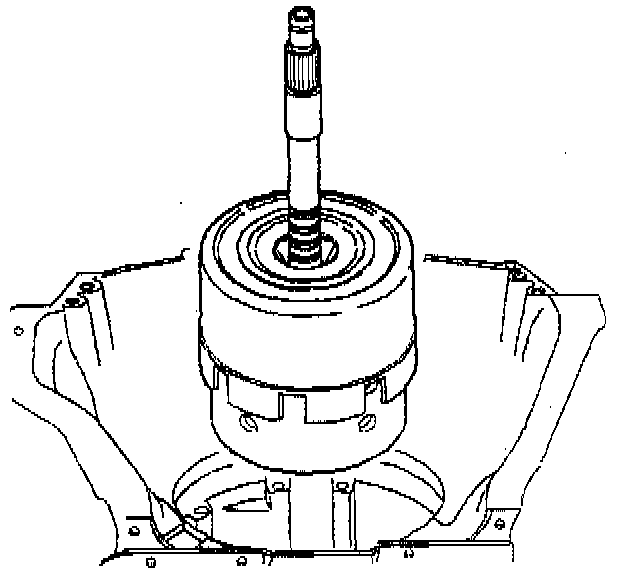

1. Remove the input housing, shaft assembly, reverse input clutch housing, and the drum assembly.

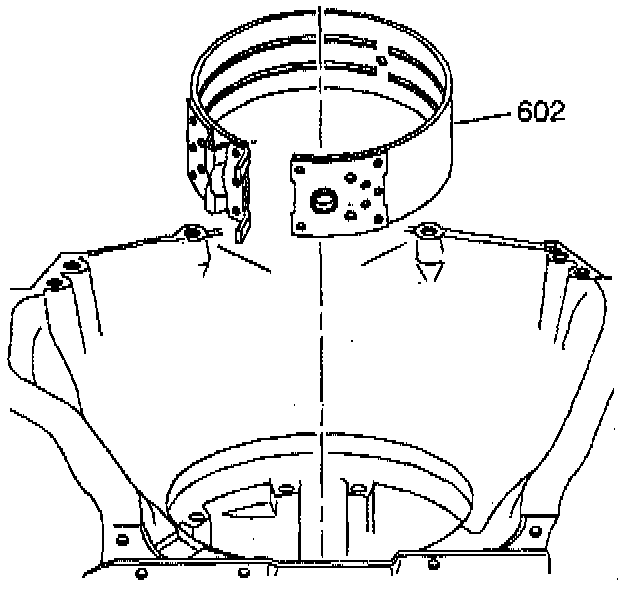

2. Remove the 2-4 band assembly.

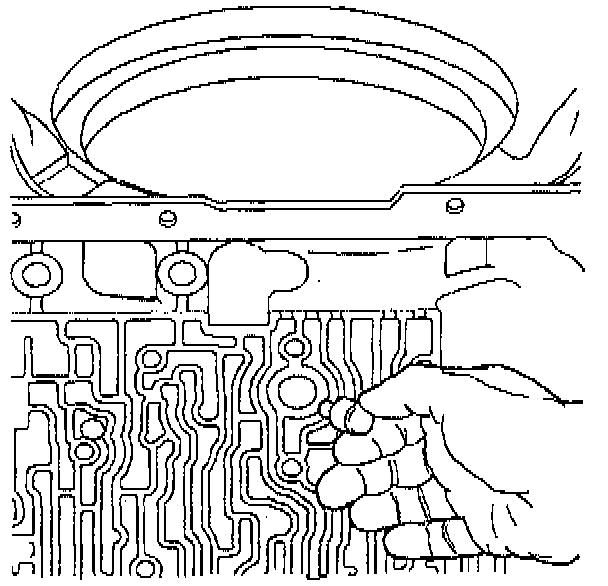

3. Remove the band anchor pin.
