Home >> Pontiac >> 1997 >> Firebird V8-350 5.7L VIN P SFI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Ignition Controls

Ignition Controls

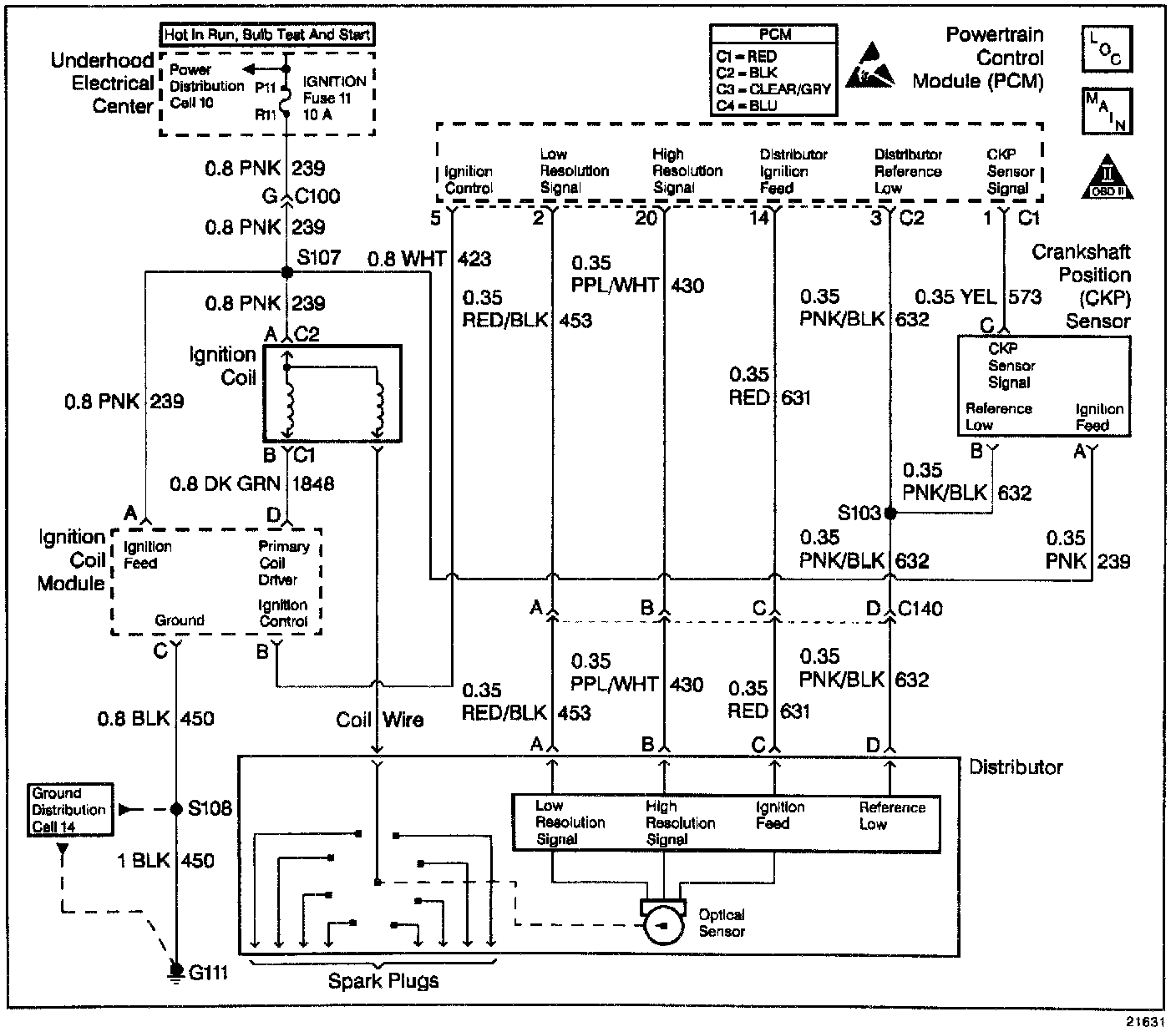

Wiring Diagram:
