B1026

When measurements are requested in this table, use J 39200 DMM with the correct terminal adapter from J 35616-A Connector Test Adapter Kit. When a check for proper connection is requested, refer to Intermittents and Poor Connections in Diagram Information in Diagrams. When a wire, connector, or terminal repair is requested, use J 38125-A Terminal Repair Kit and refer to Wiring Repair.

CIRCUIT DESCRIPTION

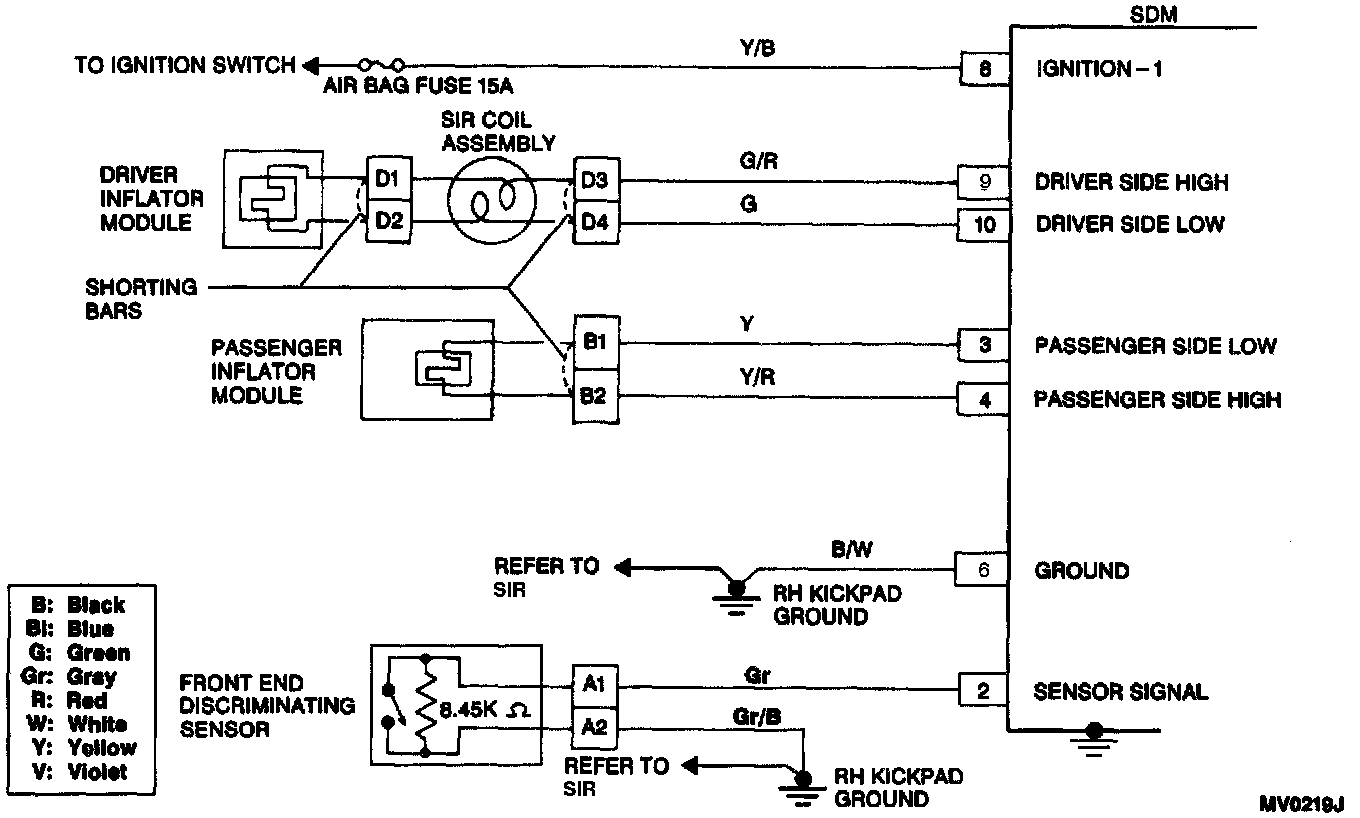

When you first turn the ignition switch to the ON position, the inflatable restraint Sensing and Diagnostic Module (SDM) performs tests to diagnose critical malfunctions within itself. Next the SDM measures IGNITION 1 voltage to make sure it is within its respective normal voltage range. Then the SDM proceeds with the DEPLOYMENT LOOP CONTINUITY test. During the DEPLOYMENT LOOP CONTINUITY test, the SDM measures the voltage difference between DRIVER SIDE HIGH and DRIVER SIDE LOW.

CONDITIONS FOR SETTING THE DTC
^ The voltage difference between DRIVER SIDE HIGH terminal 9 and DRIVER SIDE LOW terminal 10 is more than or equal to 400 millivolts.
^ The malfunction must be present for at least 500 milliseconds during one of the following tests:
- DEPLOYMENT LOOP CONTINUITY-If the malfunction is detected in this test, the RESISTANCE MEASUREMENT test will not be performed.
- CONTINUOUS MONITORING

ACTION TAKEN WHEN THE DTC SETS
^ The SDM sets a diagnostic trouble code.
^ The SDM turns ON the AIR BAG warning lamp.

CONDITIONS FOR CLEARING THE DTC
^ Current DTC.
The voltage difference between DRIVER SIDE HIGH terminal 9 and DRIVER SIDE LOW terminal 10 is less than 400 millivolts for 500 milliseconds.
^ History DTC.
- You issue a scan tool CLEAR CODES command.
- 250 malfunction free ignition cycles have occurred.

DIAGNOSTIC AIDS
The following can cause an intermittent condition:
^ A poor connection at the inflatable restraint steering wheel module steering column connector terminals D3 and D4.
^ A poor connection at the upper inflatable restraint steering wheel module coil connector terminals DL and D2.
^ A poor connection at the SDM terminals 9 and 10.
^ An open in CKT G/R.
^ An open in CKT G.

An intermittent open in the inflatable restraint steering wheel module coil could also set this DTC. To test for a bad inflatable restraint steering wheel module coil, clear DTCs, then turn the steering wheel back and forth with the ignition switch in the ON position. If the AIR BAG warning lamp comes ON and DTC B1026 has set again, it is likely the inflatable restraint steering wheel module coil is malfunctioning.

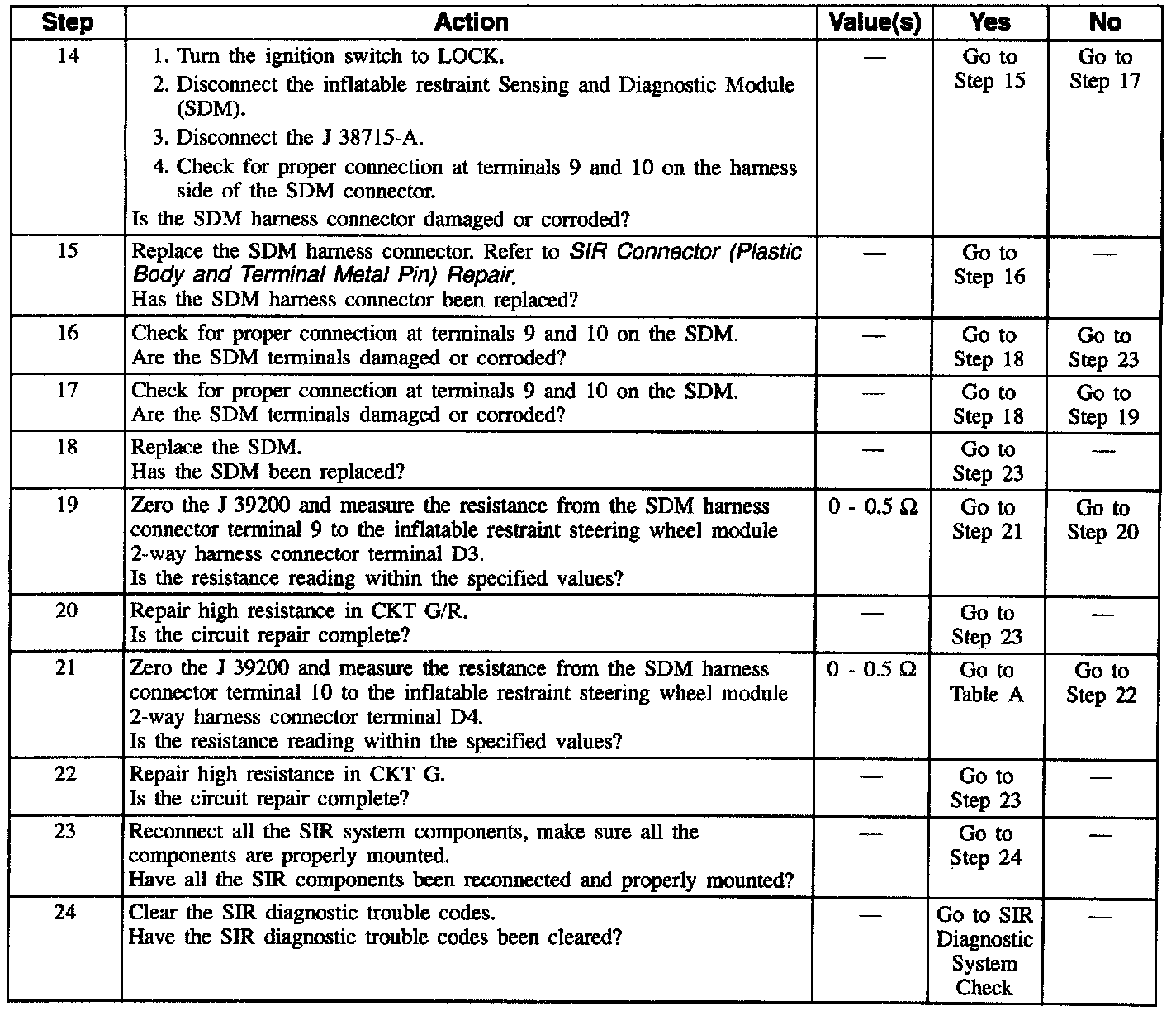

DTC TABLE TEST DESCRIPTION
Numbers below refer to step numbers on the diagnostic table.
2. This test determines the deployment loop voltage difference measured by the inflatable restraint Sensing and Diagnostic Module (SDM).
3. This test checks for proper contact and/or corrosion of the yellow 2-way connector.
10. This test isolates the malfunction to one side of the inflatable restraint steering wheel module yellow 2-way connector located near the base of the steering column.
11. This test determines whether the malfunction is in the inflatable restraint steering wheel module coil or the inflatable restraint steering wheel module.
12. This test checks for proper contact and/or corrosion of the SDM connector.
14. This test checks for proper contact and/or corrosion of the SDM connector.
19. This test determines whether the malfunction is in CKT G/R.
21. This test determines whether the malfunction is in CKT G.
