Symptom Related Diagnostic Procedures

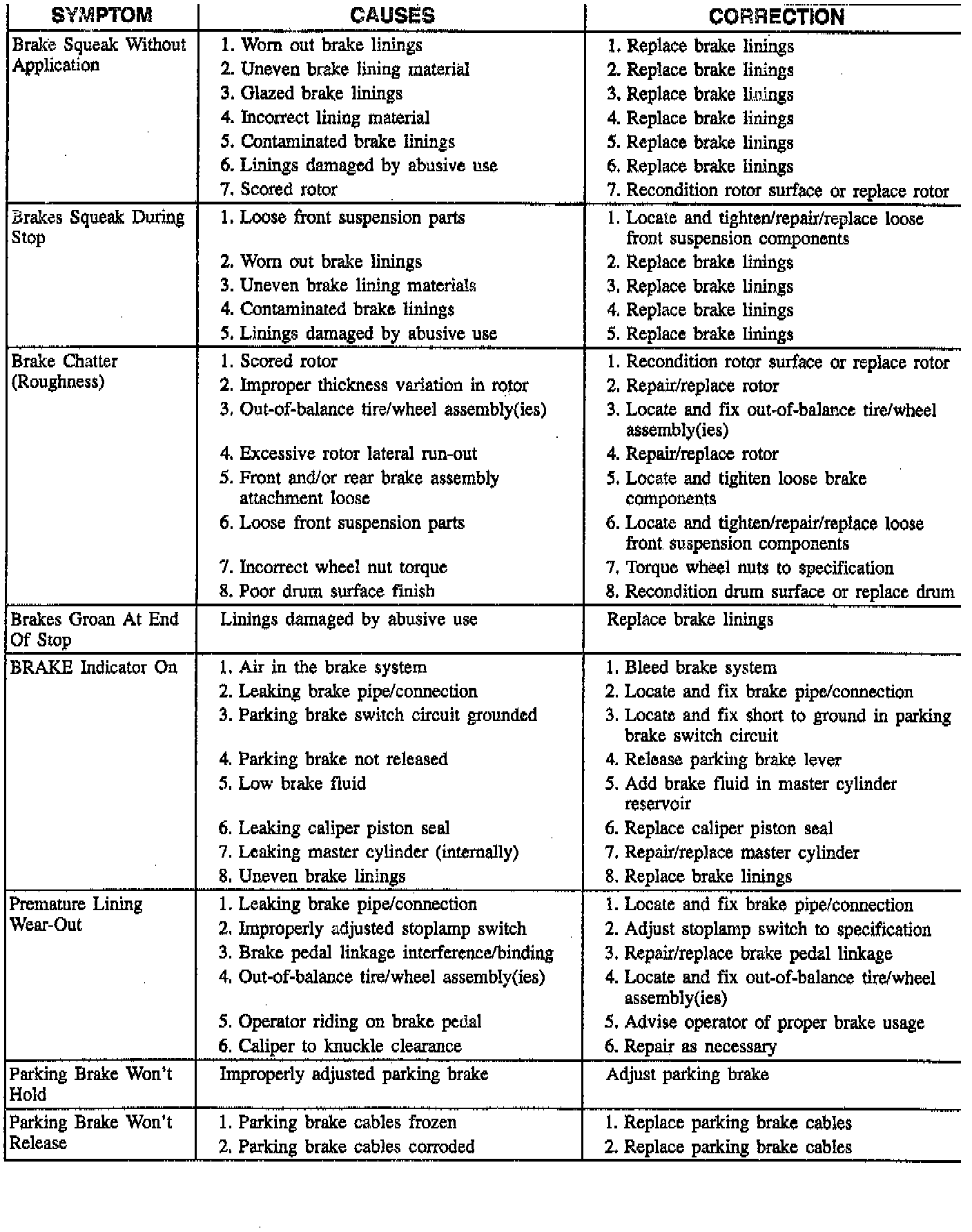

Brake System Diagnosis (Part 1 Of 5):

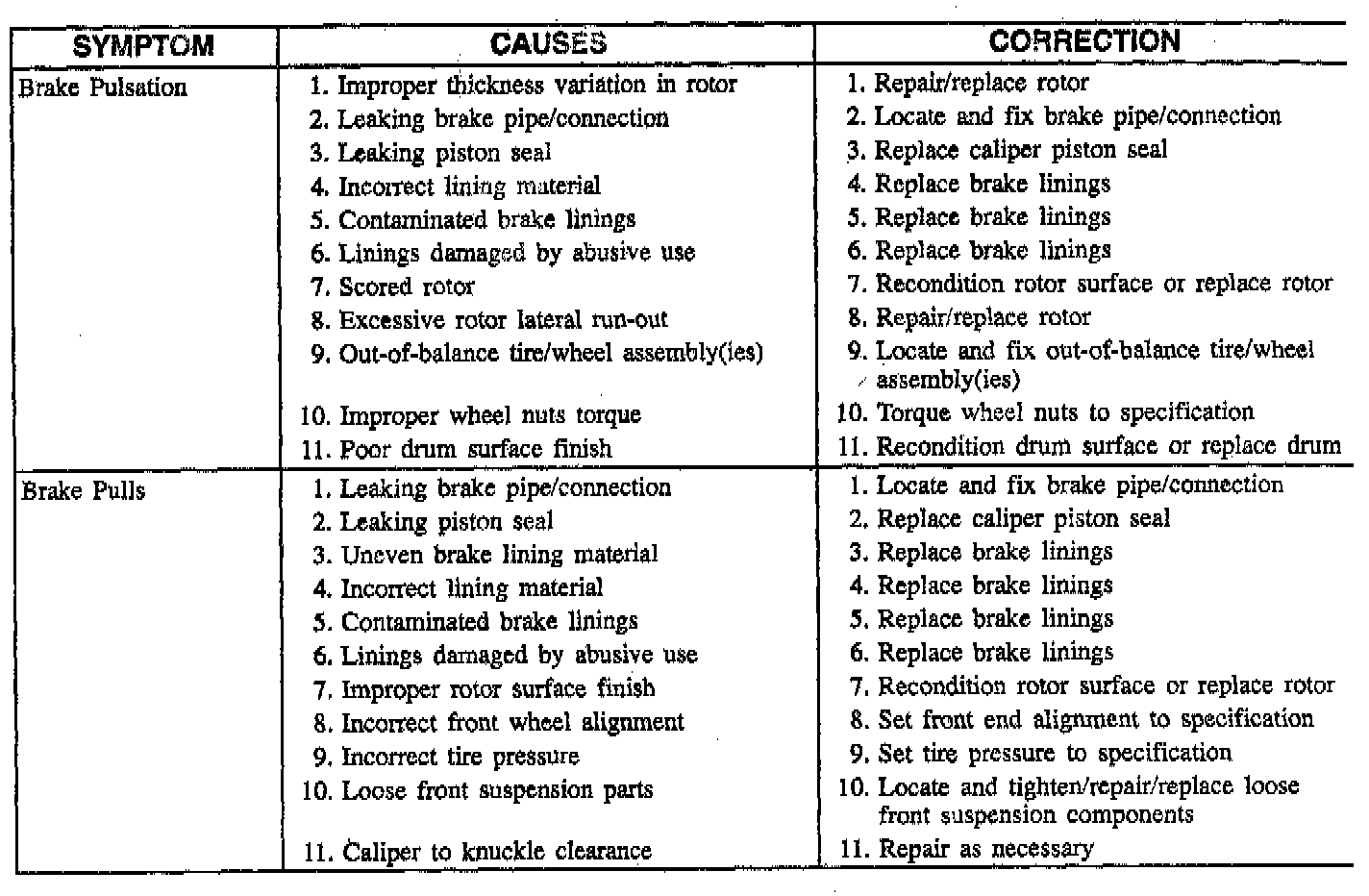

Brake System Diagnosis (Part 2 Of 5):

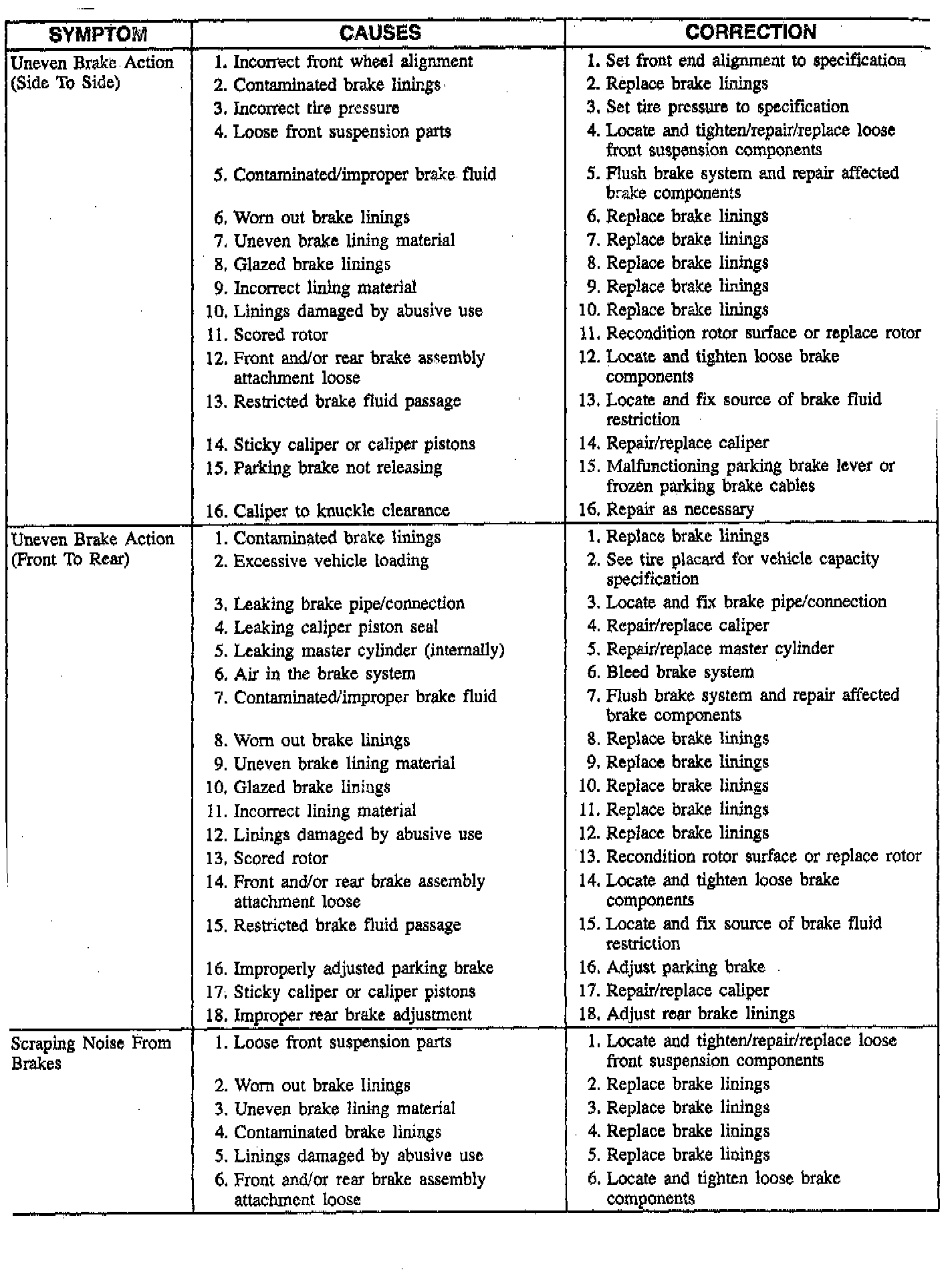

Brake System Diagnosis (Part 3 Of 5):



Brake System Diagnosis (Part 4 Of 5):



Brake System Diagnosis (Part 5 Of 5):
