Brake Master Cylinder
Brake Master Cylinder

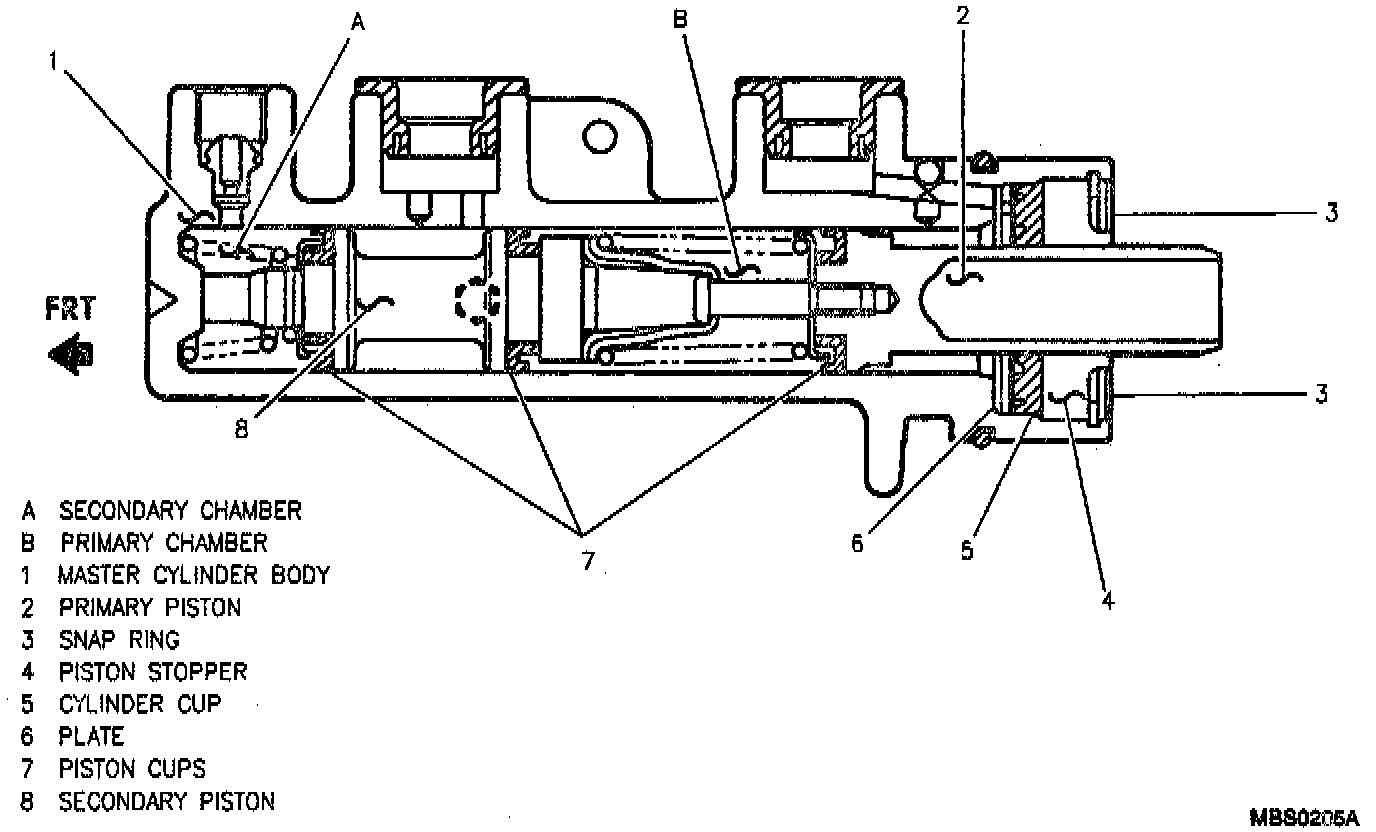

Master Cylinder Assembly (Sectional View):

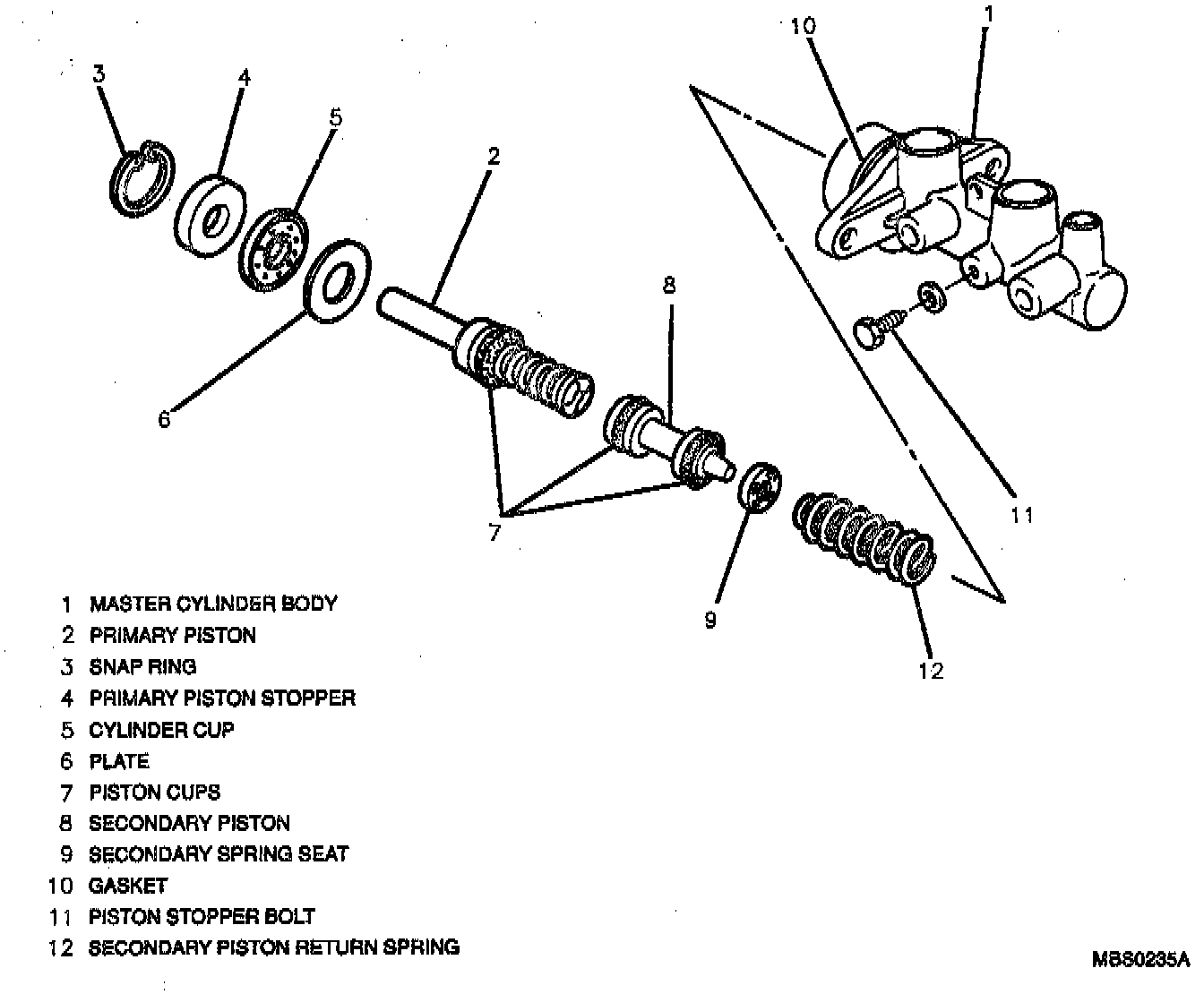

Master Cylinder Assembly:
