Blower Motor Resistor: Service and Repair

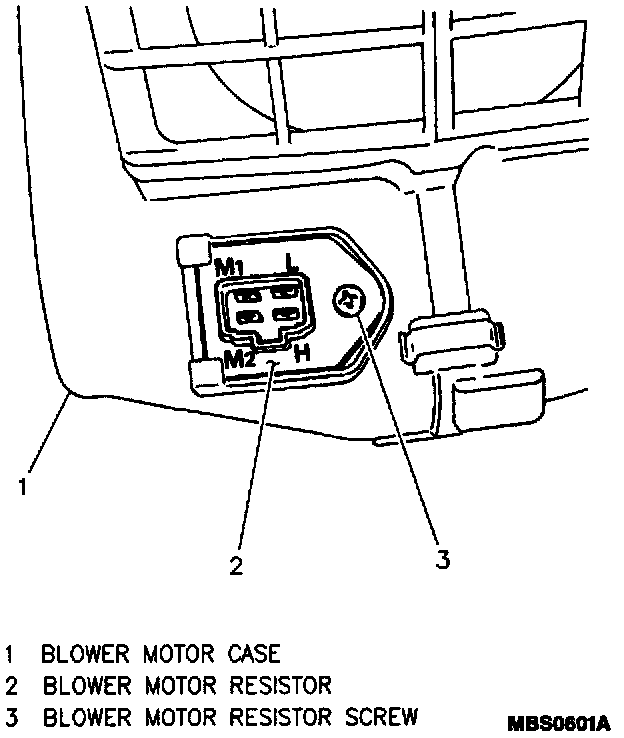

Blower Motor Resistor:

Remove or Disconnect

1. Powertrain Control Module.
2. Blower motor resistor electrical connector.
3. One screw and blower motor resistor from blower case.

Install or Connect

1. Resistor to blower case; secure with one screw.
2. Blower motor resistor electrical connector.
3. PCM.
