ABS Light: Service and Repair

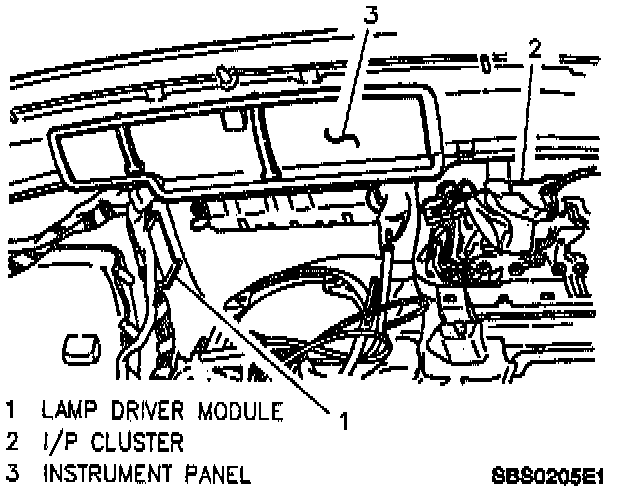

LAMP DRIVER MODULELamp Driver Module:
The lamp driver module is located on the instrument panel harness attached to the back of the instrument panel.
Remove or Disconnect
1. I/P from vehicle.
2. Lamp driver module electrical connector.
3. Lamp driver module from I/P harness.
Install or Connect
1. Lamp driver module to I/P harness.
2. Lamp driver module connect electrical connector.
3. Instrument Panel
