Instrument Panel

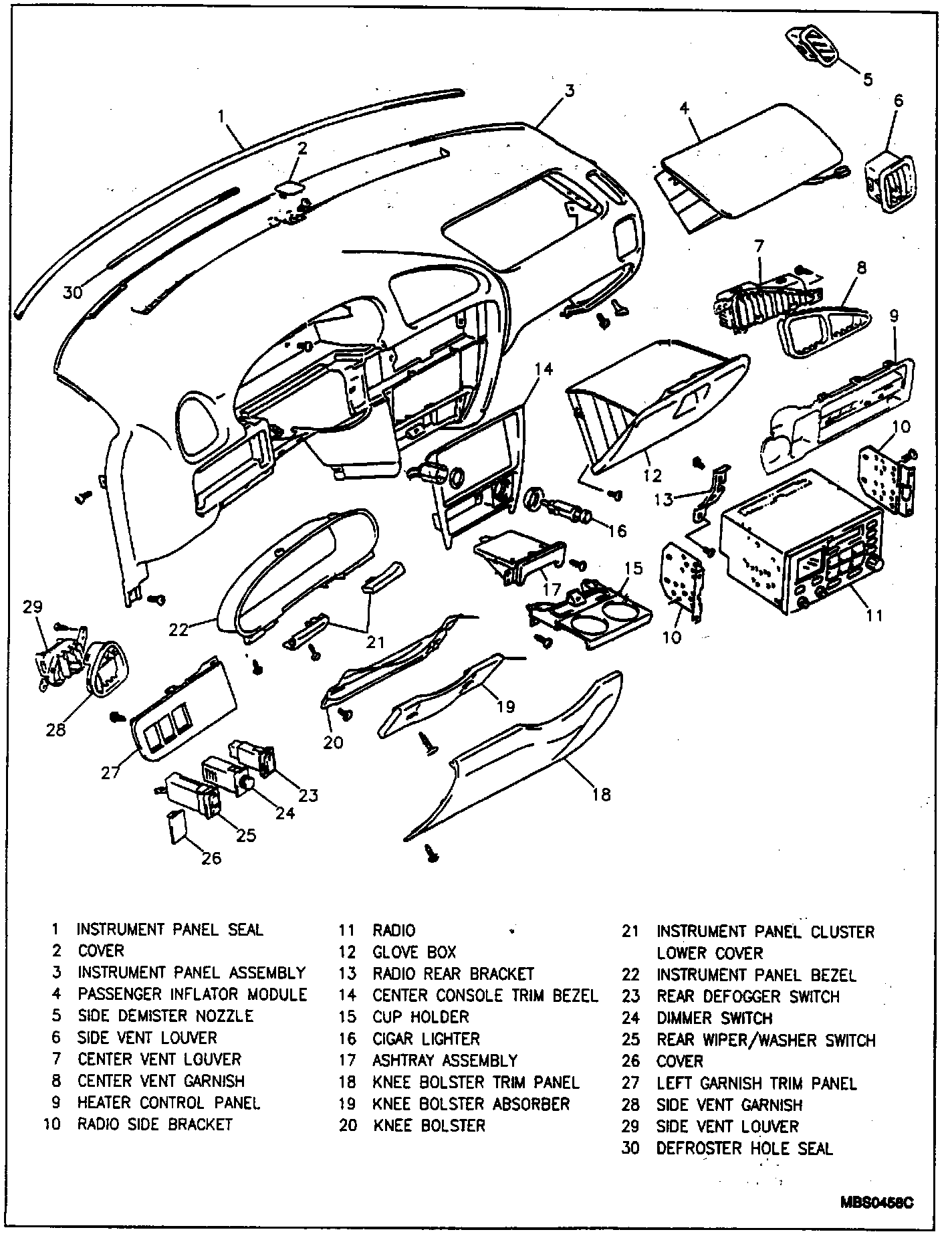

Instrument Panel Assembly:

The instrument panel assembly is the attaching base for the air conditioning switch (if equipped), ashtray, center vent outlets, cigar lighter, defroster outlets, heater control unit, hood latch release lever, ill urn nation controller, instrument cluster assembly, instrument panel compartment, knee bolster, passenger supplemental restraint system (SIR), radio (if equipped) and side vent outlets.

The instrument panel assembly mounts to the body of the vehicle at the steering column supporting bracket, the support member and along the base of the windshield opening.

For appearance, the instrument panel covers the routing of major assemblies, such as the heating and air conditioning ducts, electrical components and wiring harnesses.
