Parking Brake Warning Switch: Service and Repair

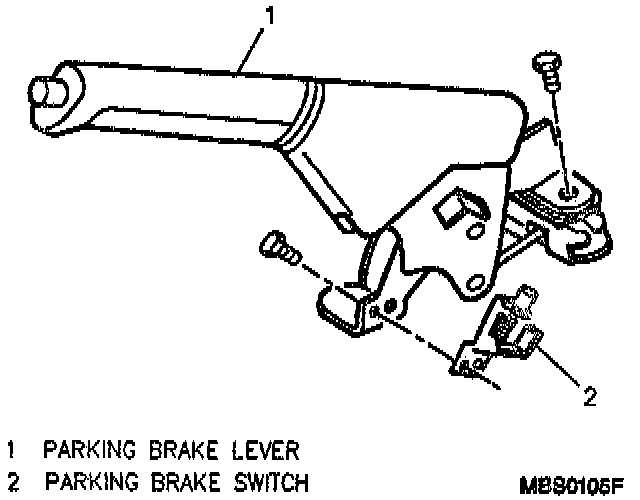

Parking Brake Switch:

Remove or Disconnect
1. Negative (-) battery cable.
2. Parking brake lever trim bezel.
3. Parking brake switch electrical connector.
4. One screw and parking brake switch from parking brake lever assembly.

Install or Connect
1. Parking brake switch to parking brake lever assembly; secure with one screw.
2. Parking brake switch electrical connector.
3. Parking brake lever trim bezel.
4. Negative (-) battery cable.
