Backup Lamp: Service and Repair

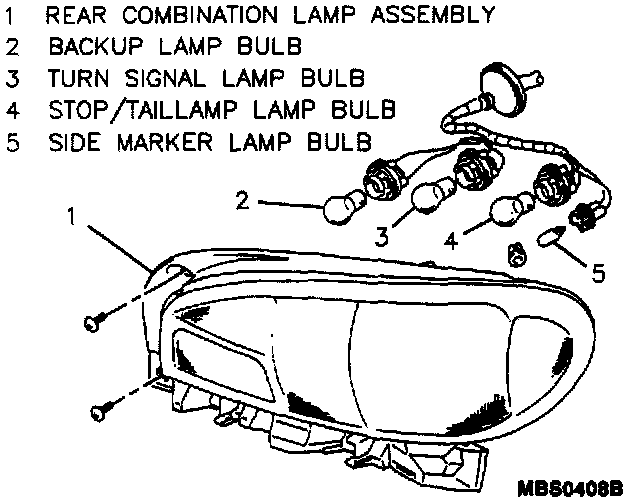

Rear Combination Lamp Assembly (2-Door):

Rear Combination Lamp Assembly (4-Door):

Remove or Disconnect
1. Negative (-) battery cable.
2. On 4-Door Models: Open rear compartment lid and remove one nut. It will be necessary to pull away trunk carpet to locate nut.
3. Two screws securing rear combination lamp assembly.
4. Rear combination lamp assembly from vehicle by pulling upward and rearward.
5. Backup lamp bulb socket from lamp assembly as required.
6. Backup lamp bulb from socket as required.

Install or Connect
1. Backup lamp bulb to socket as required.
2. Backup lamp bulb socket to lamp assembly as required.
3. Rear combination lamp assembly to vehicle; secure with two screws.
4. One nut, trunk area (4-Door).
5. Negative (-) battery cable.
