Courtesy Lamp: Service and Repair

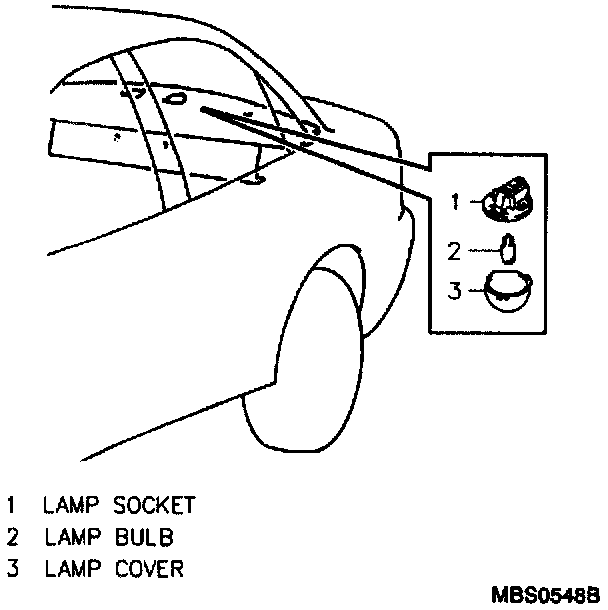

Rear Compartment Lamp Assembly:

Remove or Disconnect
1. Negative (-) battery cable.
2. Open rear compartment lid.
3. Gently remove plastic lamp cover with a flat-bladed screwdriver.
4. Pull bulb from socket.

Install or Connect
1. Bulb to socket, replace plastic lamp cover.
2. Close rear compartment lid.
3. Negative (-) battery cable.
